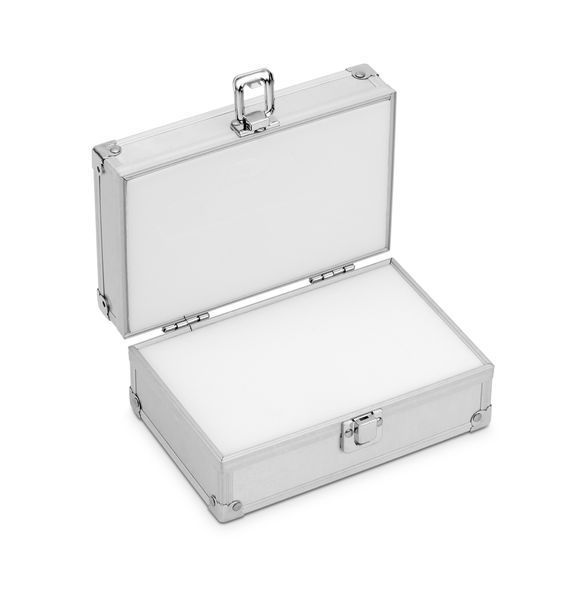

Aluminium protective box for individual weights (Cylindrical/compact, bis 200 g)
Article number for factory calibration: 961-113
Material housing: plastic
Dimension housing (W×D×H): 161×68×32 mm
Dimension housing (Width): 161 mm
Dimension housing (Depth): 68 mm
Dimension housing (Height): 32 mm
Dimension completely mounted (W×D×H): 161×68×32 mm
Dimension completely mounted (Width): 161 mm
Dimension completely mounted (Depth): 68 mm
Dimension completely mounted (Height): 32 mm
Units: mm; inch
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Battery: 4×1.5 V AA
Ambient temperature [Min] (°C): 0 °C
Ambient temperature [Max] (°C): 50 °C
Gross weight: 0,85 kg
Net weight: 0,30 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 262×215×72 mm
Dimensions packaging Width: 262 mm
Dimensions packaging Depth: 215 mm
Dimensions packaging Height: 72 mm
Total packaging weight: 536 g
Packaging component carton/cardboard: 115 g
Packaging component Styrofoam: 268 g
Tolerance (% of [Max]): 0,5%
Material thickness pulse-echo [Min]: 1,5 mm
Material thickness pulse-echo [Max]: 200 mm
Readability material thickness [d] (mm): 0,1 mm
Measuring head measuring frequency: 5 MHz
Measuring head diameter: 8 mm
Speed of sound [Min] (m/s): 500 m/s
Speed of sound [Max] (m/s): 9999 m/s
Cable length: 0,9 m
Pictograms Standard: Calibration block included; ZERO function; Prepared for battery operation; Package shipment 1 day
Pictograms Option: Factory calibration (ISO)
Accessories: ATB-US01; ATB-US02; ATB-US03; ATB-US06
