Class A Power Quality Analyzer Janitza UMG 512-PRO
Downloads:
PDF Instruction 1
PDF Instruction 2

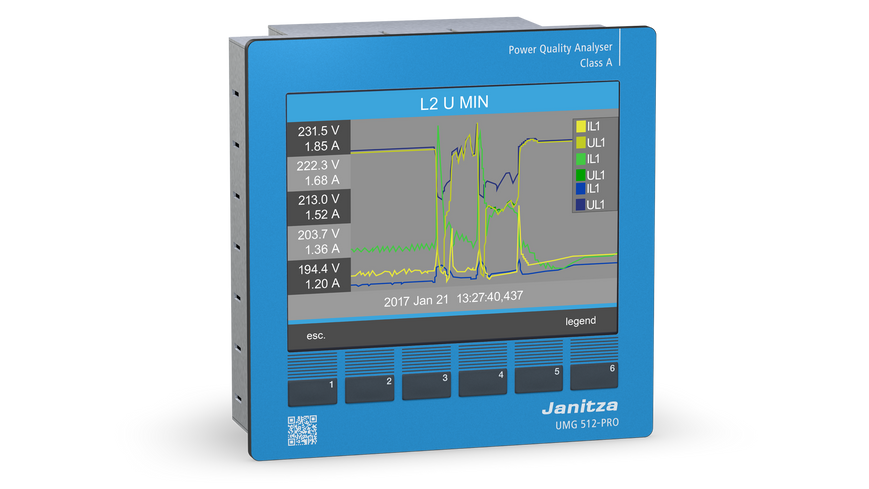

The Janitza UMG 512-PRO is a high-performance power quality analyzer certified strictly according to IEC 61000-4-30 Class A standards. Designed for continuous monitoring in critical industrial and commercial electrical distribution networks, this flagship device ensures full compliance with EN 50160, IEEE 519, and EN 61000-2-4 standards. With continuous sampling at 25.6 kHz and 512 measurement points per cycle, it captures even the fastest transient events down to 39 microseconds.
Featuring advanced residual current monitoring (RCM) with 2 dedicated channels and an integrated thermistor input, the UMG 512-PRO provides comprehensive fault prevention before outages or electrical hazards occur. Its embedded web server, 256 MB internal memory, and vast communication protocols including BACnet, Modbus TCP/RTU Gateway, and Profibus DP V0 allow effortless integration into existing Building Management Systems and industrial Automation platforms.
Scope of Application
- Continuous power quality monitoring according to EN 50160 and Class A standards
- Residual current monitoring in TN-S systems and critical data centers
- Transient and fault recording in high and medium voltage switchgear
- Building management and energy automation via BACnet and Modbus Gateway
- Peak load management and power disturbance analysis in manufacturing plants
Technical Specifications
| Parameter | Value |
| Measurement Standard | IEC 61000-4-30 Class A, EN 50160, IEEE 519 |
| Sampling Frequency | 25.6 kHz (512 points per period) |
| Harmonics Analysis | 1st to 63rd harmonic (U, I, P, Q) |
| Active Energy Class | 0.2S (.../5 A) |

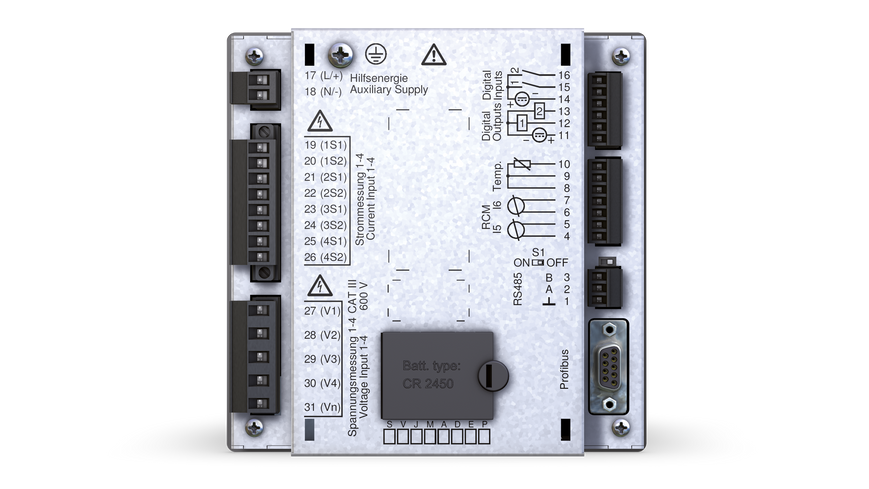

| Inputs / Outputs | 4 Voltage, 6 Current, 2 RCM, 1 Thermistor, 2 Digital IN, 2 Digital OUT |
| Memory | 256 MB onboard Flash memory |
| Communication Interfaces | Ethernet, RS485 |
| Protocols | Modbus TCP/IP, Modbus RTU, Modbus Gateway, Profibus DP V0, BACnet |

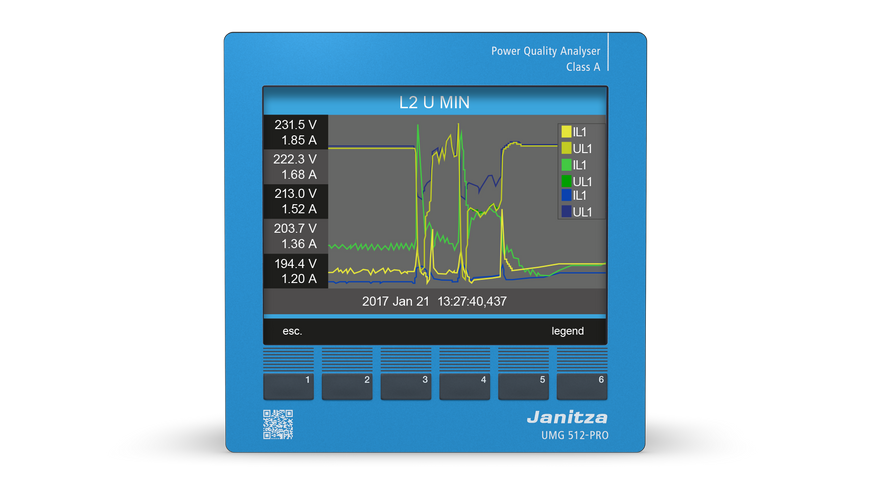

| Display | 320 x 240 pixel color graphic display, 256 colors |
| Certifications | UL, CE |
Package Includes
- Janitza UMG 512-PRO Power Quality Analyzer
- Fastening clamps for panel mounting
- RS485 terminating resistor
- Quick start manual and safety instructions
