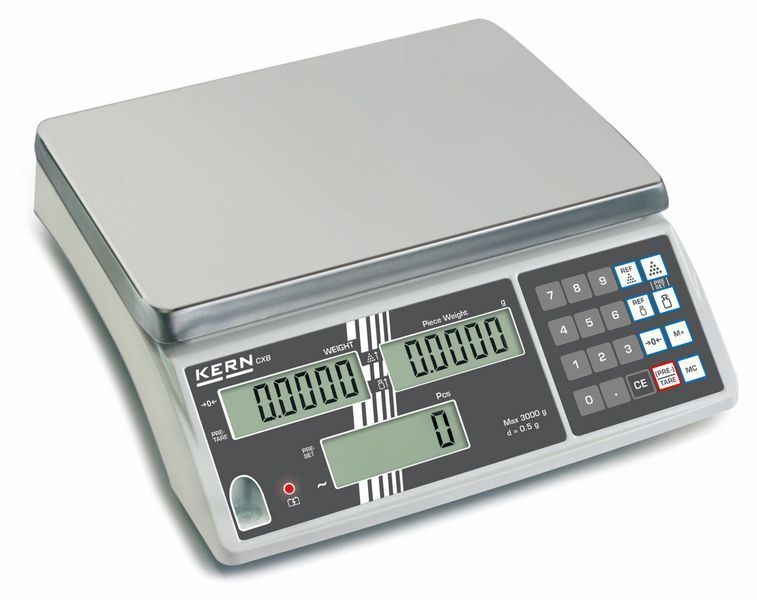

- Precise, intuitive to use and digital – with our counting scales you can accelerate your annual stock taking processes and thus save time and money
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
- Programmable using numerical key pad:
- required reference quantity
- known reference weight - Three displays for weight display (verifiable), reference weight, total pieces
- Fill-to-target function: Target count or target weight can be programmed. When the target weight is reached there is an audible and visual signal
- 10 memories for reference weights
- Counting results memory: adds up all individual piece counts, result is shown in total weight and total pieces
- Integrated ESD protection, which makes it ideal for weighing small plastic parts
- Energy management: Backlight turns off after 5 sec
- PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
- Two balances in one: Changes from counting mode to weighing mode at the touch of a key
- Protective working cover included with delivery
- Warehouse logistics
- Packaging industry
- Retail

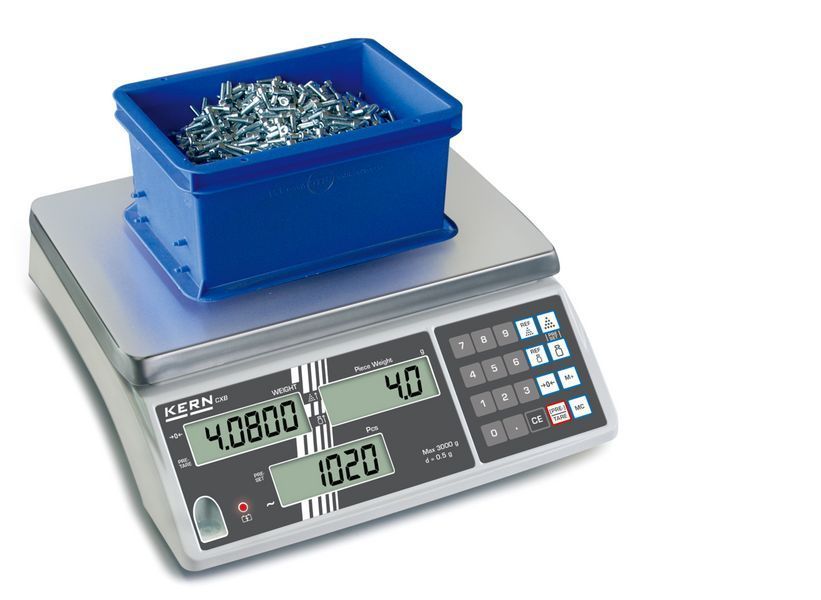

- Counting applications
- Order picking and inventory
Weighing range (Max): 6000 g
Readability (g): 2 g
Verification value [e]: 2 g
Accuracy classe: III
Minimum weight (min): 40 g
Reproducibility: 2 g
linearity: ± 4 g
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-128
Material housing: plastic
Dimension housing (W×D×H): 286×316×126,5 mm
Dimension housing (Width): 286 mm
Dimension housing (Depth): 316 mm
Dimension housing (Height): 126,5 mm
Dimension completely mounted (W×D×H): 286×316×126,5 mm
Dimension completely mounted (Width): 286 mm
Dimension completely mounted (Depth): 316 mm
Dimension completely mounted (Height): 126,5 mm
Material weighing plate: stainless steel
Dimensions weighing surface (W×D): 263×203 mm
Dimension weighing surface (Width): 263 mm
Dimension weighing surface (Depth): 203 mm
Display type: LCD
Display digit height: 25 mm
Units: g
Supplied power supply: Power supply unit
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 30 h
Rechargeable battery operating time - backlight off: 50 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off,5 min,15 min
Battery: no battery
Input voltage power supply / power [Max]: 110 V - 230 V AC
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 4,0 kg
Net weight: 3,2 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 395×340×205 mm
Dimensions packaging Width: 395 mm
Dimensions packaging Depth: 340 mm
Dimensions packaging Height: 205 mm
Total packaging weight: 700 g
Packaging component Paper: 100 g
Packaging component carton/cardboard: 454 g
Packaging component Styrofoam: 195 g
Packaging component glass: 0 g
Packaging component wood: 0 g
Packaging component metal: 0 g
Packaging component foam: 0 g
Pictograms Standard: External adjustment; Measuring with tolerance range (checkweighing function); Protection against dust and water splashes IP65; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Accessories: RFS-A02; RFB-A01; RFB-A01S05; PFB-A03; PFB-A04; PFB-A05; WTB-A01N; PFB-A02; YKA-11
