Description
The Testo 510 set is a high-precision differential pressure measuring instrument engineered for complex diagnostic testing of heating systems, ventilation ducts, and air conditioning equipment. This compact set integrates automatic temperature and air density compensation to ensure baseline measurement stability under shifting environmental conditions. Featuring a ruggedized IP40 housing with rear-mounted magnets for hands-free industrial service, it supports multiple selectable physical units and velocity profiling using an optional Pitot tube.
B2B Applications

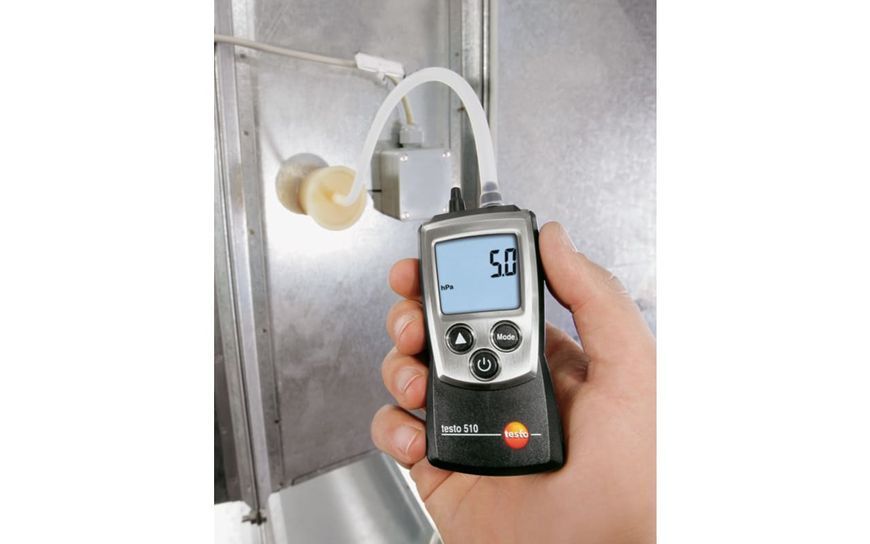

- HVAC Filter Analysis: Diagnostic static pressure drop testing across air conditioning filters to plan maintenance intervals.
- Gas Burner Commissioning: Measuring static gas manifold line pressure and dynamic flow pressure on gas hot water heaters.
- Duct Velocity Profiling: Measuring aerodynamic process flow speeds within ventilation shafts from 10 to 100 m/s via a Pitot connection.
Technical Parameters
| Pressure Measuring Range | 0 to 100 hPa |
| Pressure Accuracy | ±0.03 hPa (0 to 0.30 hPa), ±0.05 hPa (0.31 to 1.00 hPa), ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa) |
| Resolution | 0.01 hPa |
| Maximum Static Pressure | 500 mbar |
| Protection Index Rating | IP40 |
| Energy Supply | 2 x AAA micro batteries |
Package Contents

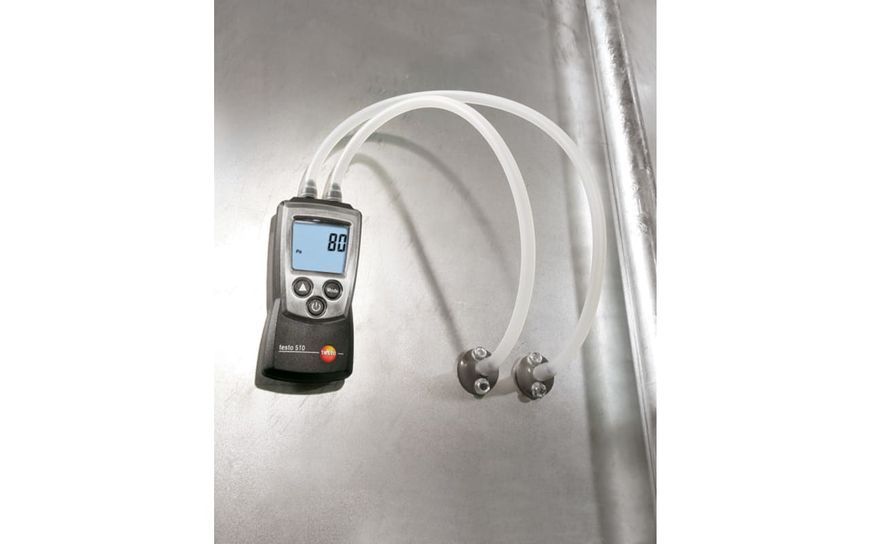

- Testo 510 differential pressure measuring instrument
- Silicone connection hose
- Belt pouch and wrist strap
- Protective cap
- Factory calibration protocol
