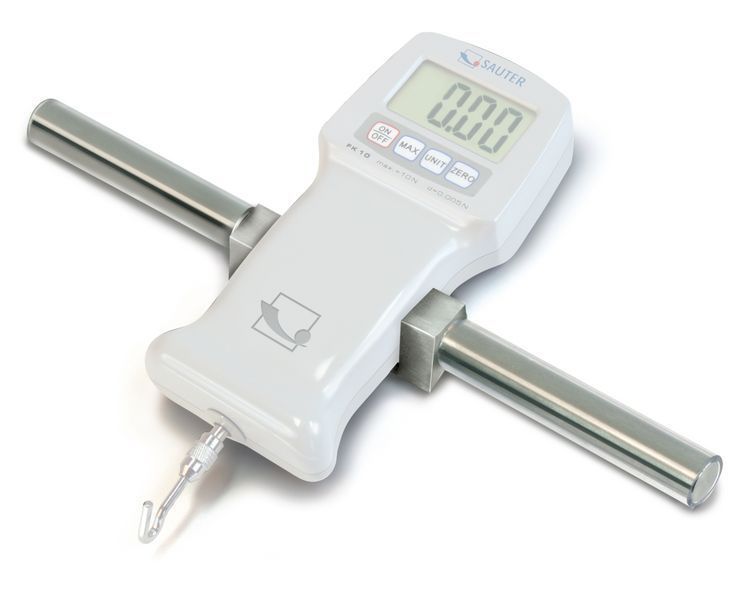

- Turnable display: automatic direction identification
- Secure operability due to the ergonomic design
- Peak-Hold function to capture peaks (value is "frozen” for approx. 10 seconds) or Track function mode for a continuous measurement indication
- Selectable measuring units: N, lbf, kg, ozf
- Auto-Power-Off
- Standard attachments as shown, extension rod: 90 mm
- Can be mounted on all SAUTER test stands up to 5 kN
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
For medical applications
- Rehabilitation facilities
- Physiotherapists and occupational therapists
- Outpatient facilities
- Retirement and nursing homes
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for conformity assessment: 965-230
Article number for DAkkS calibration: 963-130
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 1360×850×90 mm
Dimension weighing platform (Width): 1360 mm
Dimension weighing platform (Depth): 850 mm
Dimension weighing platform (Height): 90 mm
Dimensions weighing surface (W×D): 1190×840 mm
Dimension weighing surface (Width): 1190 mm
Dimension weighing surface (Depth): 840 mm
Display type: LCD
Display digit height: 52 mm
Units: kg
Supplied power supply: Accu & Power supply
Battery / accumulator type: Pb
Rechargeable battery charging time: 10 h
Rechargeable battery operating time - backlight on: 20 h
Rechargeable battery operating time - backlight off: 35 h
Auto-off interval(s) in battery mode/rechargeable battery mode: selectable
Input voltage power supply / power [Max]: 110 V - 230 V AC
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 (optional, factory),Bluetooth BTC (v2.0) (optional, factory),analogue (0 - 10 V) (optional, factory),analogue (4 - 20 mA) (optional, factory)
Humity of environment [Min]: 10 %
Humity of environment [Max]: 95 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 85 kg
Net weight: 55 kg
UN number (hazardous goods): 2800
UN number (hazardous goods): Lead acid (UN 2800, Packaging Instruction #2, Not Restricted as per Special Provision A67)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Freight
Dimensions packaging (W×D×H): 1410×910×210 mm
Dimensions packaging Width: 1410 mm
Dimensions packaging Depth: 910 mm
Dimensions packaging Height: 210 mm
Total packaging weight: 30 kg
Packaging component carton/cardboard: 600 g
Packaging component wood: 29,4 kg
Cable length: 5 m
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Interface command set KERN Communication Protocol (KCP); Sum function; Measuring with tolerance range (checkweighing function); Hold function (average value); Display device: Protection against dust and water splashes IP65; Load Cell: Protection against dust and water splashes IP67; Junction Box: Protection against dust and water splashes IP67; Rechargeable battery; Universal plug-in power supply; Weighing principle Strain gauges; Delivery Truck 2 days
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Data interface RS-232; Data Interface Bluetooth; Analogue interface; Conformity assessment
Accessories: CFS-A04; YKN-01; YKI-02; YKC-01; PFB-A03; PFB-A04; GAB-A04; YKA-11
