- Turnable display: automatic direction identification
- Secure operability due to the ergonomic design
- Peak-Hold function to capture peaks (value is "frozen” for approx. 10 seconds) or Track function mode for a continuous measurement indication
- Selectable measuring units: N, lbf, kg, ozf
- Auto-Power-Off

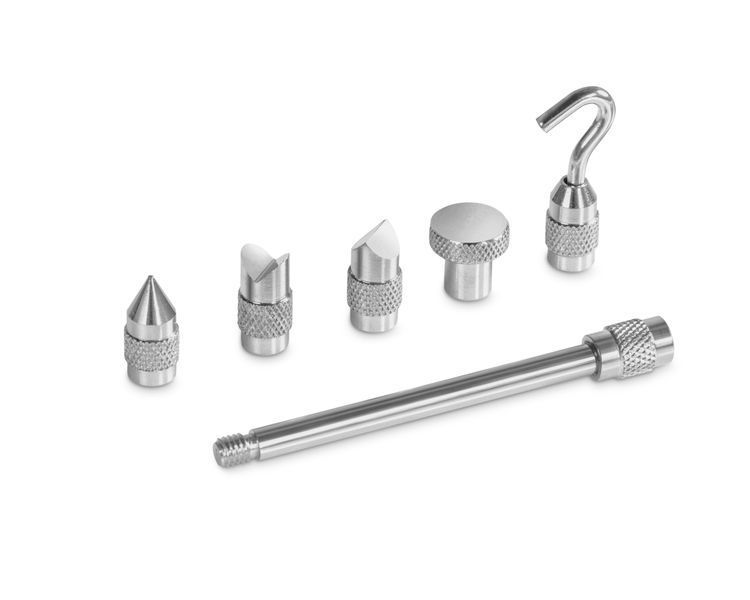

- Standard attachments as shown, extension rod: 90 mm
- Can be mounted on all SAUTER test stands up to 5 kN
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
For medical applications
- Rehabilitation facilities
- Physiotherapists and occupational therapists
- Outpatient facilities
- Retirement and nursing homes
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-130H
Material housing: cast aluminium
Dimension completely mounted (W×D×H): 422×194×129 mm
Dimension completely mounted (Width): 422 mm
Dimension completely mounted (Depth): 194 mm
Dimension completely mounted (Height): 129 mm
Display type: LCD
Display digit height: 30 mm
Units: kg
Supplied power supply: Accu & Power supply
Battery / accumulator type: Li-Ion
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 30 h
Rechargeable battery operating time - backlight off: 70 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off,5 min,15 min
Battery: 1×12 V, Type 23 A
Input voltage power supply / power [Max]: 110 V - 240 V AC
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,UK,CH
Plug-in power supply type: Power adapter
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 10 kg
Net weight: 9 kg
UN number (hazardous goods): 3481
UN number (hazardous goods): Li-Ion, packed with device (UN 3481, Packing Instruction #7, Lithium ion batteries in compliance with Section II of PI 967)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 720×270×270 mm
Dimensions packaging Width: 720 mm
Dimensions packaging Depth: 270 mm
Dimensions packaging Height: 270 mm
Total packaging weight: 1 kg
Packaging component carton/cardboard: 500 g
Packaging component Styrofoam: 500 g
Tolerance (% of [Max]): 0,2%
Internal measuring frequency: 10 Hz
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Sum function; Protection against dust and water splashes IP67; Rechargeable battery; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: HFD-A01; HFD-A07; YKA-07; HFD-A04
