- Turnable display: automatic direction identification
- Secure operability due to the ergonomic design
- Peak-Hold function to capture peaks (value is "frozen” for approx. 10 seconds) or Track function mode for a continuous measurement indication
- Selectable measuring units: N, lbf, kg, ozf
- Auto-Power-Off

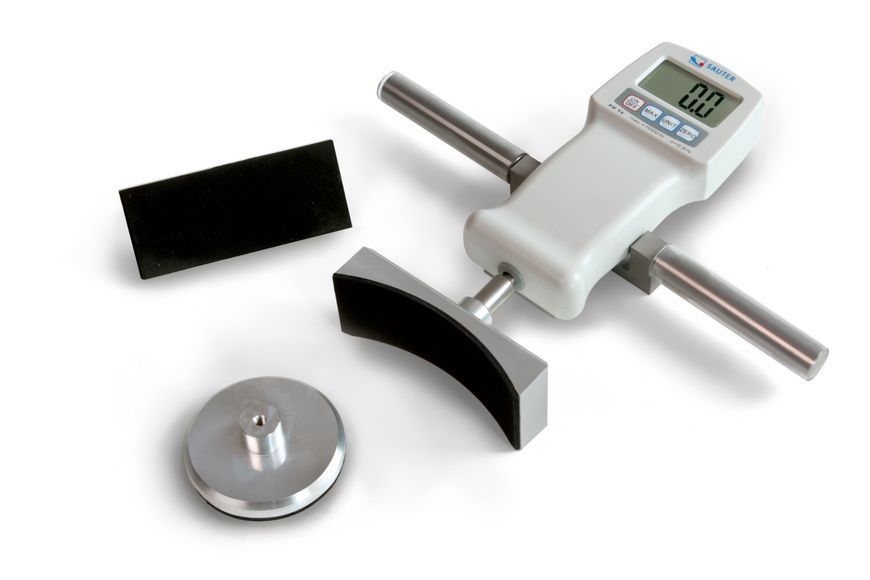

- Standard attachments as shown, extension rod: 90 mm

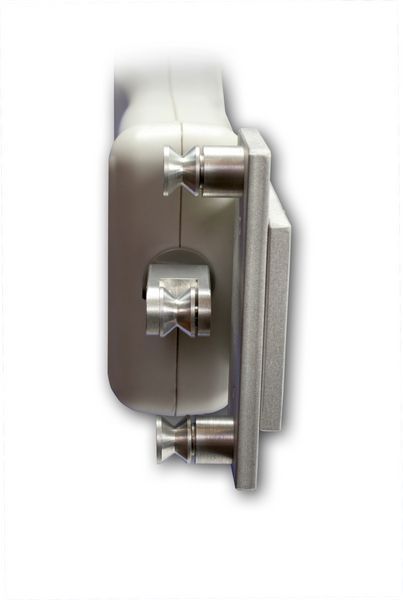

- Can be mounted on all SAUTER test stands up to 5 kN
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
For medical applications
- Rehabilitation facilities
- Physiotherapists and occupational therapists
- Outpatient facilities
- Retirement and nursing homes
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for conformity assessment: 965-216
Article number for DAkkS calibration: 963-127
Material housing: plastic
Dimension housing (W×D×H): 220×340×90 mm
Dimension housing (Width): 220 mm
Dimension housing (Depth): 340 mm
Dimension housing (Height): 90 mm
Dimension completely mounted (W×D×H): 220×340×180 mm
Dimension completely mounted (Width): 220 mm
Dimension completely mounted (Depth): 340 mm
Dimension completely mounted (Height): 180 mm
Material weighing plate: stainless steel
Dimension weighing surface (Ø): 120 mm
Display type: LCD
Display digit height: 21 mm
Units: g
Supplied power supply: Power supply unit
Battery / accumulator type: Li-Ion
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 6,5 h
Rechargeable battery operating time - backlight on: 32 h
Rechargeable battery operating time - backlight off: 57 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 0 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 3,6 kg
Net weight: 3,2 kg
UN number (hazardous goods): Li-Metal, packed with device (UN 3091, Packing Instruction #12)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 410×295×275 mm
Dimensions packaging Width: 410 mm
Dimensions packaging Depth: 295 mm
Dimensions packaging Height: 275 mm
Total packaging weight: 400 g
Packaging component Paper: 0 g
Packaging component carton/cardboard: 563 g
Packaging component plastic: 0 g
Packaging component Styrofoam: 151 g
Packaging component glass: 0 g
Packaging component wood: 0 g
Packaging component metal: 0 g
Packaging component foam: 0 g
Pictograms Standard: Internal adjustment; Piece counting function; Percentage determination function; Measuring with tolerance range (checkweighing function); Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Pictograms Factory: Conformity assessment
Accessories: EWJ-A04S05; YPS-03; YPS-04; YPS-05; EWJ-A06; EWJ-A04; YKA-11
Technical Data Sheet (PDF)
