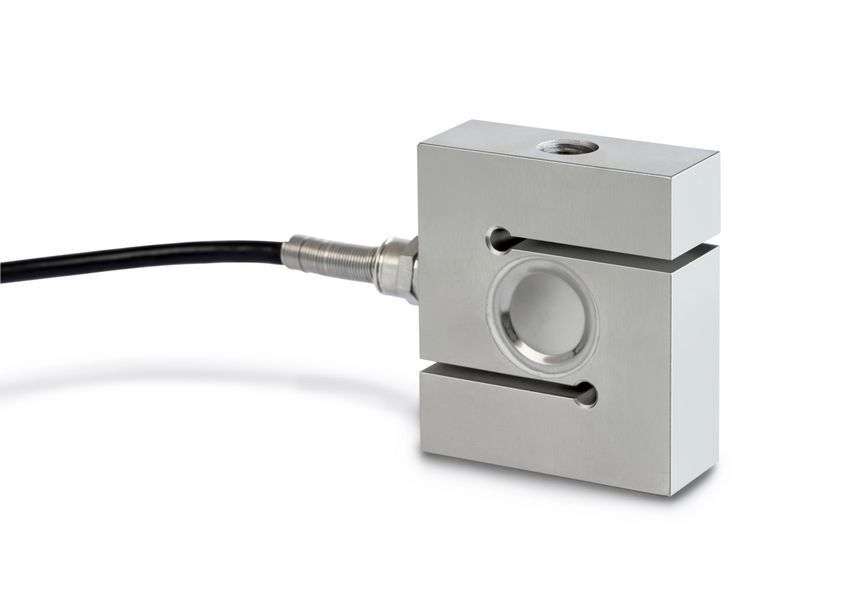

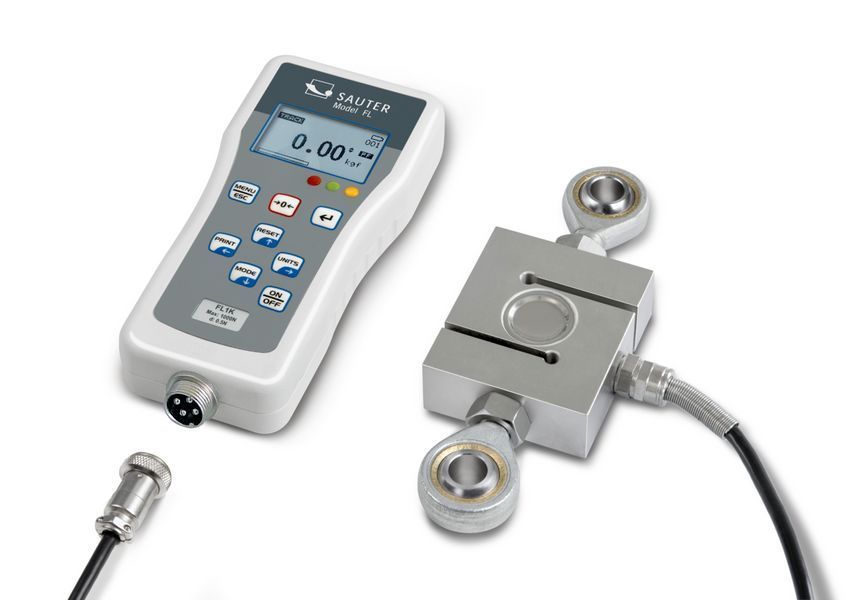

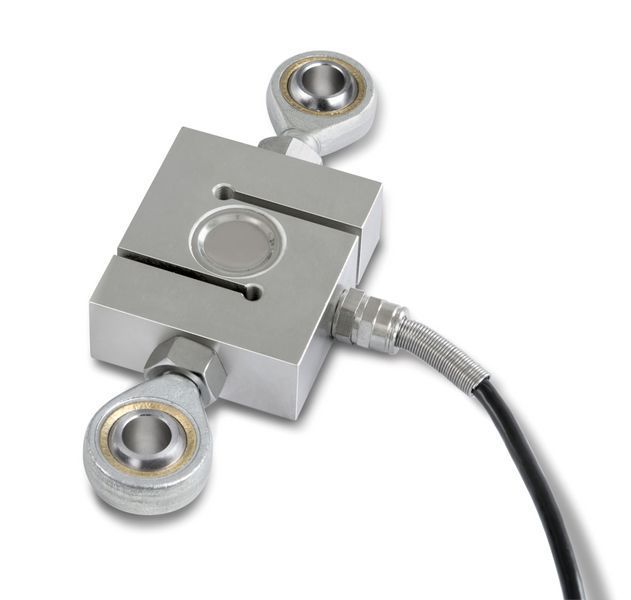

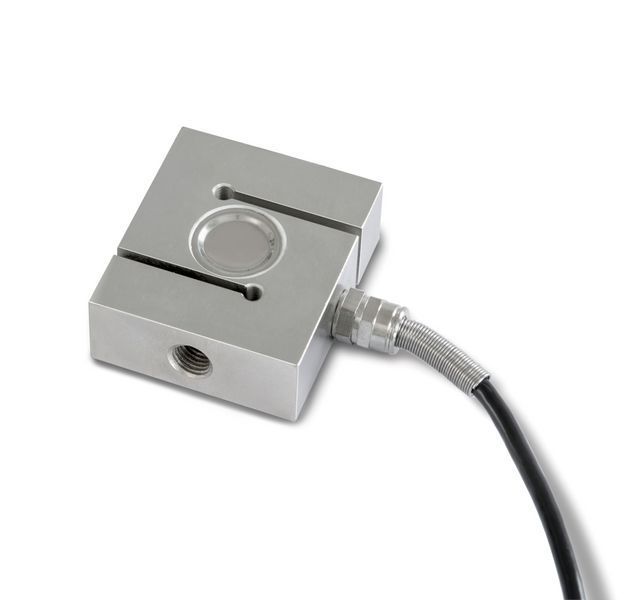

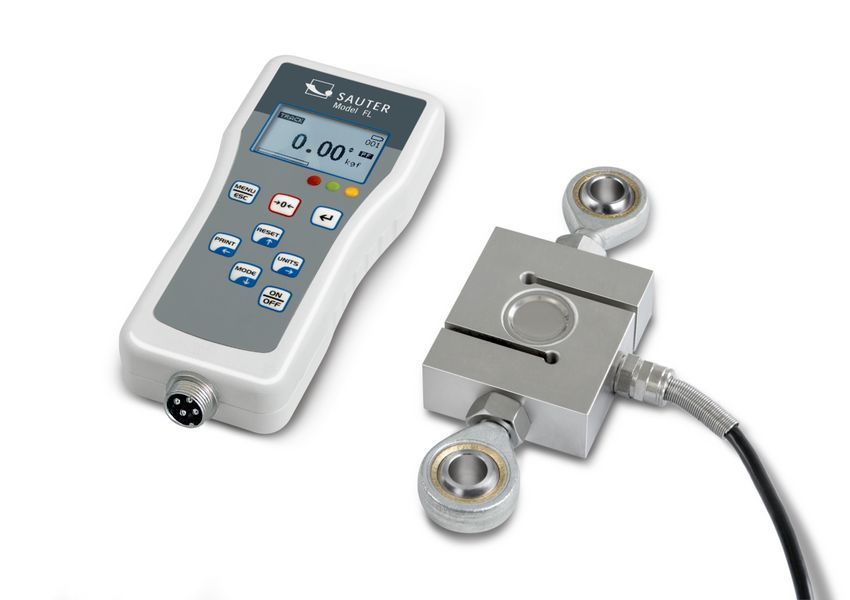

- Premium force gauge with external measuring cell, tension loops included with delivery

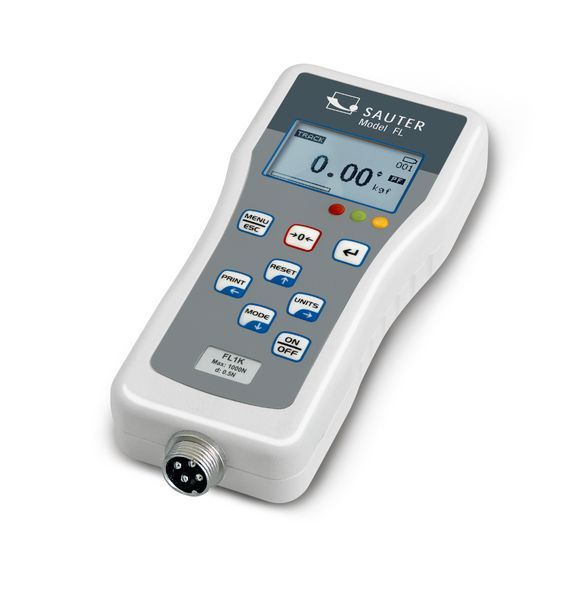

- Turnable display with backlight
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Metal housing for durable use in harsh environmental conditions
- Can be mounted on all SAUTER test stands starting 1 kN
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal
- Internal memory for up to 500 measurement values
- Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)
- USB data interface, as standard
- Selectable measuring units: N, kN, kgf, ozf, lbf

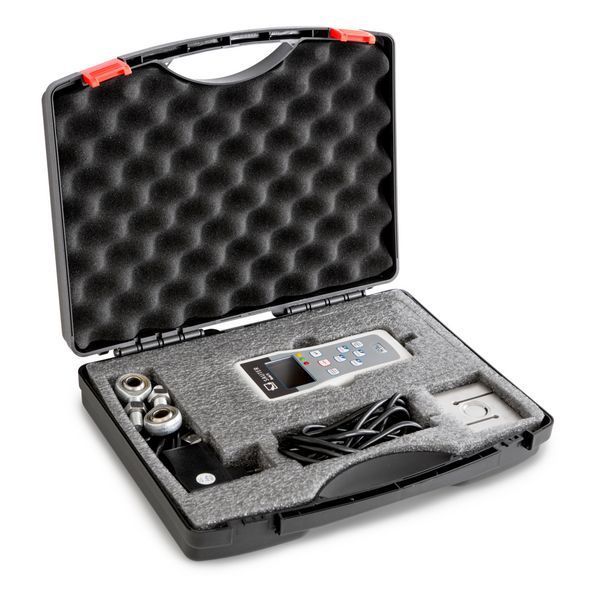

- Delivered in a robust carrying case
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-128H
Material housing: stainless steel
Dimension housing (W×D×H): 96×48×179 mm
Dimension housing (Width): 96 mm
Dimension housing (Depth): 48 mm
Dimension housing (Height): 179 mm
Display type: LCD
Display digit height: 12 mm
Units: kg; lb; N
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Rechargeable battery operating time - backlight off: 300 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min
Battery: 2×1.5 V AA
Battery operating time: 300 h
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 1,2 kg
Net weight: 0,50 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 155×220×75 mm
Dimensions packaging Width: 155 mm
Dimensions packaging Depth: 220 mm
Dimensions packaging Height: 75 mm
Total packaging weight: 649 g
Packaging component carton/cardboard: 324,5 g
Packaging component Styrofoam: 324,5 g
Tolerance (% of [Max]): 0,5%
Internal measuring frequency: 5 Hz
Pictograms Standard: External adjustment; Units switchable; Hold function (average value); Protection against dust and water splashes IP65; Prepared for battery operation; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: HCB-A01; HCB-A02; 356-79
