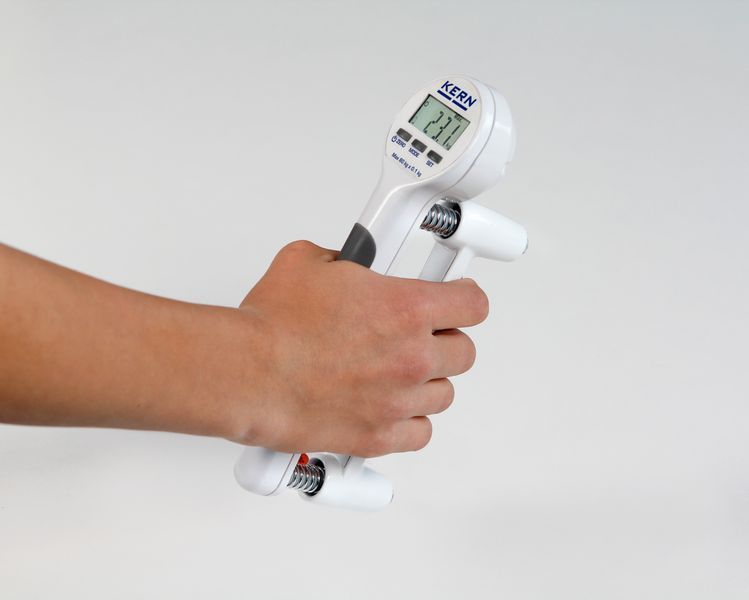

- Especially suitable for use in rehabilitation centres for determining manual clamping force
- There are four measuring methods, which for example, as part of a rehabilitation program, help the medical staff to monitor the fitness of the patient’s hands and carry out controlled training:
- Real time mode: immediately shows the client‘s current strength
- Peak/Max mode: shows the maximum strength of a client‘s grip
- Average mode: Calculates the average strength from two grips
- Counting mode: Counts the number of presses which exceed a previously defined strength limit - An ideal device to determine reduced handstrength and among others a possible mortality risk of elderly persons as well as a malnutrition in case of chemotherapy or similar treatments
- Safe, comfortable use thanks to non-slip rubber grips
- Integrated AUTO-OFF function after 1 min, to preserve the batteries
- Weight displayed in kg or lb

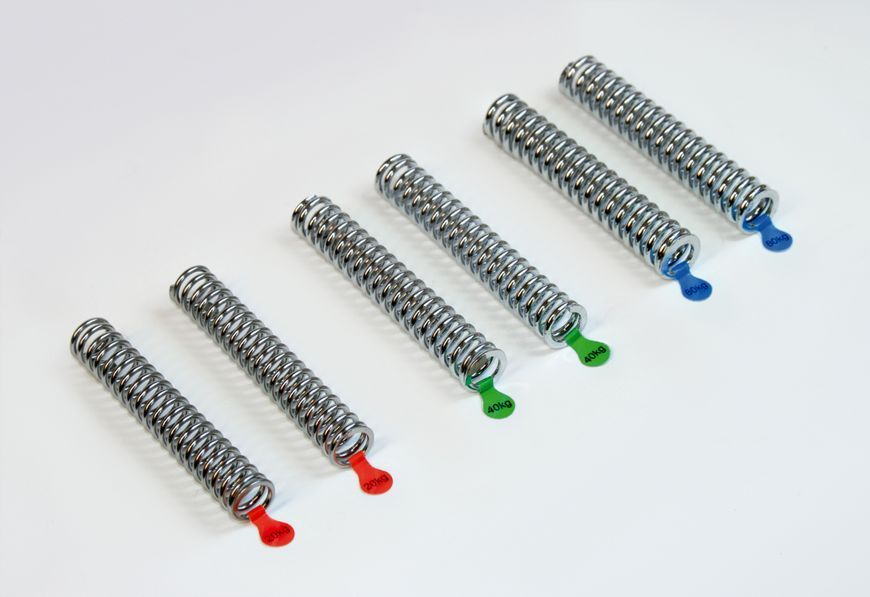

- Exchangeable springs facilitate fast switching of the capacity (additional spring sets are included with delivery). The varying rigidity of the individual springs makes the hand grip dynamometer ideal for a wide variety of patient groups, e.g. children or senior citizens or in sports medicine
- Stable case for safe, easy transport and for storage of the additional spring sets, standard, W×D×H 350×265×85 mm
- Rehabilitation facilities
- Physiotherapists and occupational therapists
- Outpatient facilities
- Retirement and nursing homes
Weighing range (Max): 80 kg
Readability (g): 100 g
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for DAkkS calibration: 963-127
Material housing: plastic
Dimension housing (W×D×H): 210×315×90 mm
Dimension housing (Width): 210 mm
Dimension housing (Depth): 315 mm
Dimension housing (Height): 90 mm
Dimension completely mounted (W×D×H): 210×315×160 mm
Dimension completely mounted (Width): 210 mm
Dimension completely mounted (Depth): 315 mm
Dimension completely mounted (Height): 160 mm
Material weighing plate: stainless steel
Dimension weighing surface (Ø): 120 mm
Display type: LCD
Display digit height: 21 mm
Units: kg; g; t; gn; dwt; tl (Tw); tl (HK); ozt; tl (Singap, Malays); ct; mo; lb; oz; ffa; tol; m
Supplied power supply: Power supply unit
Battery / accumulator type: Li-Ion
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 6,5 h
Rechargeable battery operating time - backlight on: 36 h
Rechargeable battery operating time - backlight off: 72 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard,Bluetooth BTC (v2.0) (optional, factory),Bluetooth BLE (v4.0) (optional, factory)
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 15 °C
Ambient temperature [Max] (°C): 30 °C
Gross weight: 2,6 kg
Net weight: 1,4 kg
UN number (hazardous goods): Li-Metal, packed with device (UN 3091, Packing Instruction #12)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 380×280×280 mm
Dimensions packaging Width: 380 mm
Dimensions packaging Depth: 280 mm
Dimensions packaging Height: 280 mm
Total packaging weight: 1210 g
Packaging component Paper: 0 g
Packaging component carton/cardboard: 379 g
Packaging component plastic: 0 g
Packaging component Styrofoam: 1810 g
Packaging component glass: 0 g
Packaging component wood: 0 g
Packaging component metal: 0 g
Packaging component foam: 0 g
Pictograms Standard: External adjustment; Interface command set KERN Communication Protocol (KCP); Piece counting function; Net-Total function; Percentage determination function; Units switchable; Measuring with tolerance range (checkweighing function); Hold function (average value); Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Data Interface Bluetooth; Rechargeable battery
Accessories: YKN-01; YKI-02; PFB-A12S05; 326-11; AFH 13; YKG-01; YKH-01; CFS-A01; 315-211-406; YPS-03; YPS-04; YPS-05; PFB-A10; EWJ-A06; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; YKA-11; PFB-A12
