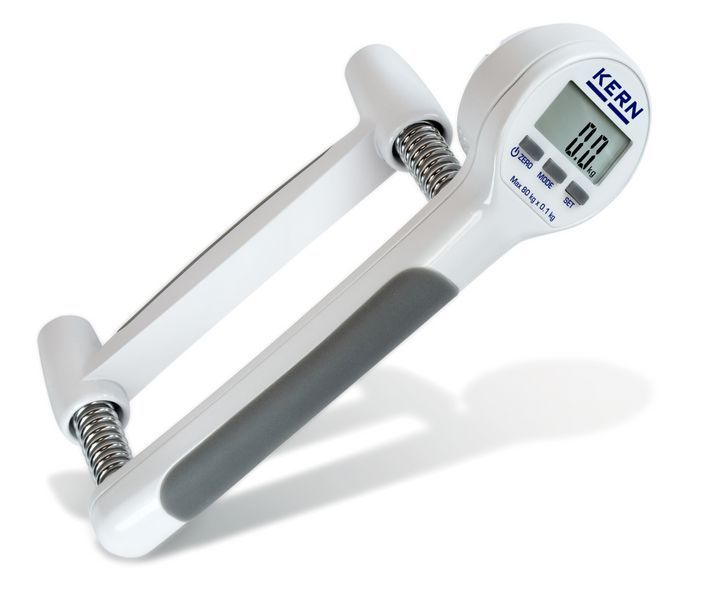

Digital Hand Grip Dynamometer KERN MAP 80K1S

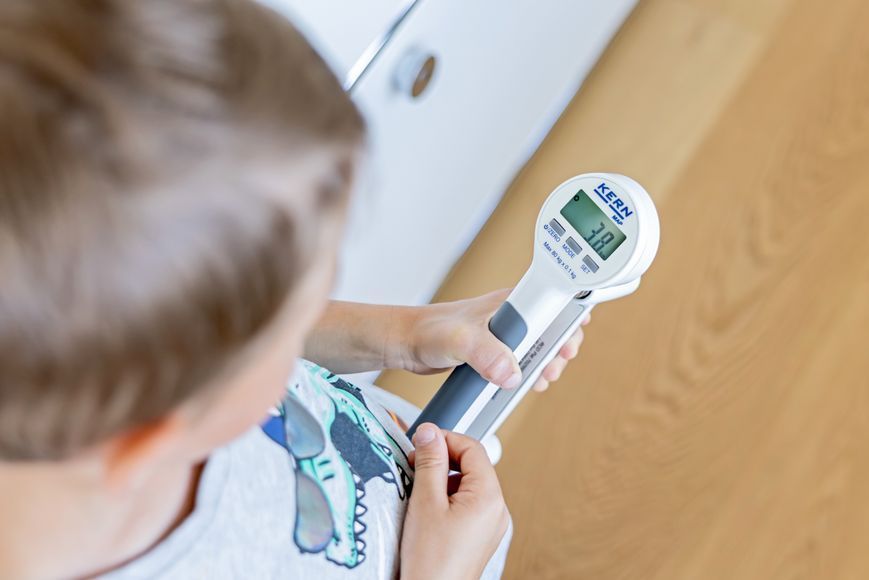

Hand grip dynamometer for children – ideal for rehabilitation and early diagnosis

• The hand grip dynamometer for children is particularly suitable for use in rehabilitation after injuries and for the early detection of motor deficits and developmental delays. It facilitates the design of playful and motivating therapies and the simple, objective documentation of progress

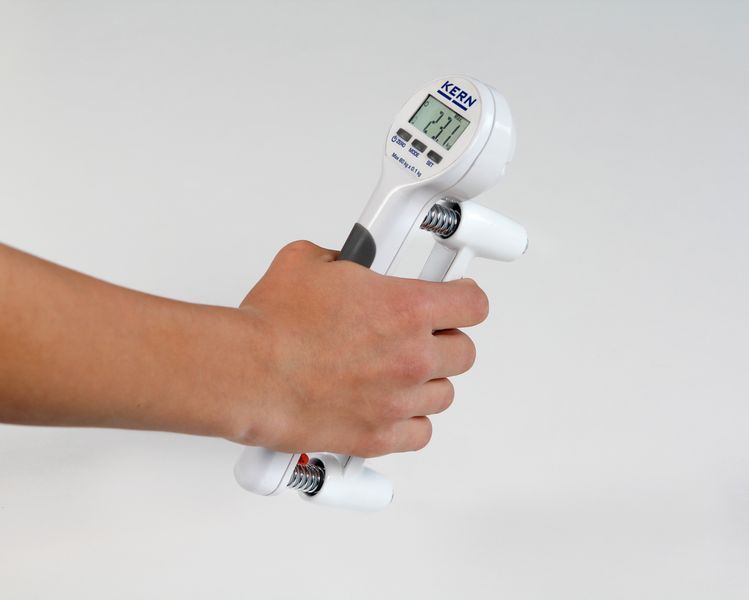

• The shallow grip depth is designed for children's hands and promotes ergonomic gripping
• There are four measuring methods, which for example, as part of a rehabilitation program, help the medical staff to monitor the fitness of the patient’s hands and carry out controlled training:
  - Real time mode: immediately shows the client‘s current strength
  - Peak/Max mode: shows the maximum strength of a client‘s grip
  - Average mode: Calculates the average strength from two grips
  - Counting mode: Counts the number of presses which exceed a previously defined strength limit

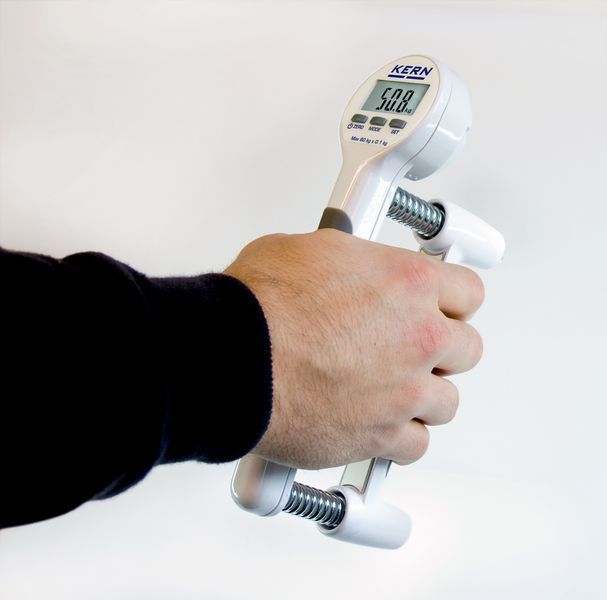

• Safe, comfortable use thanks to non-slip rubber grips
• Integrated AUTO-OFF function after 1 min, to preserve the batteries
• Weight displayed in kg or lb

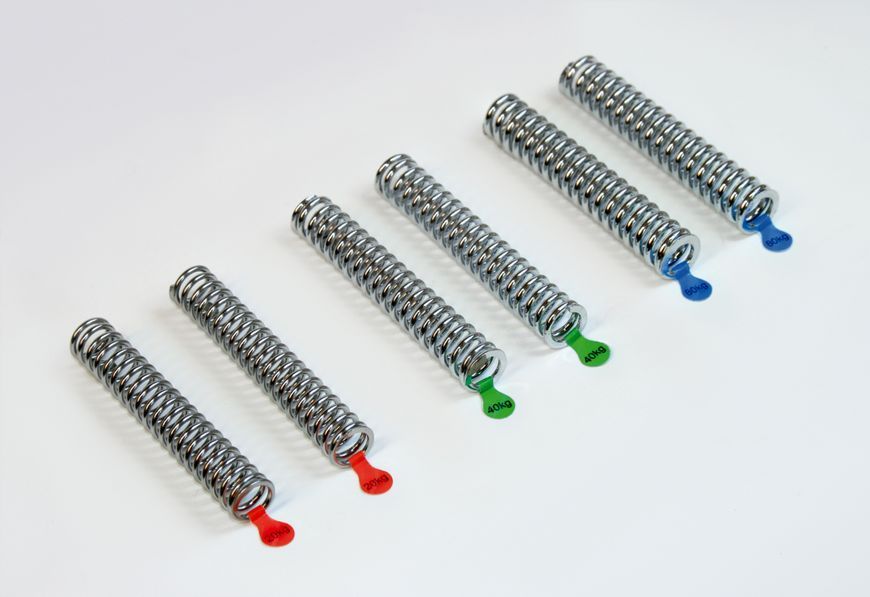

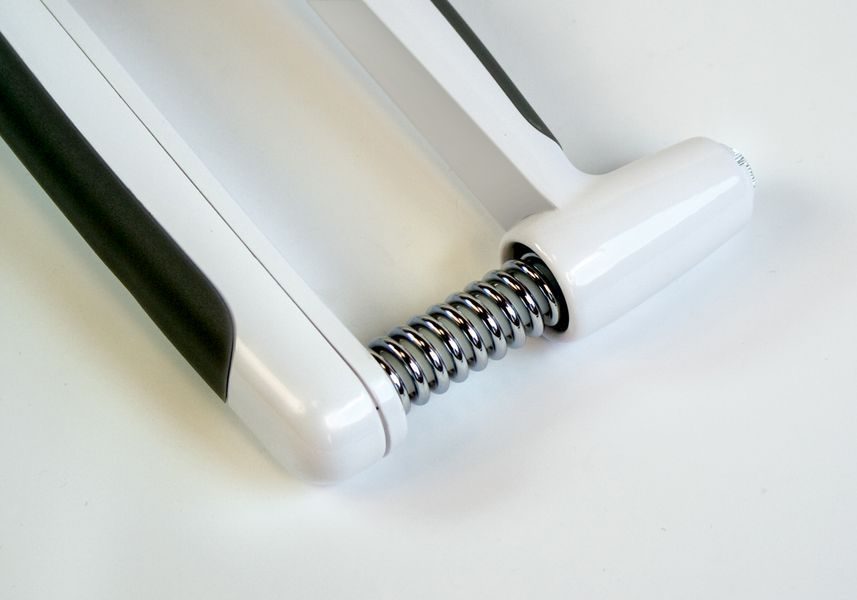

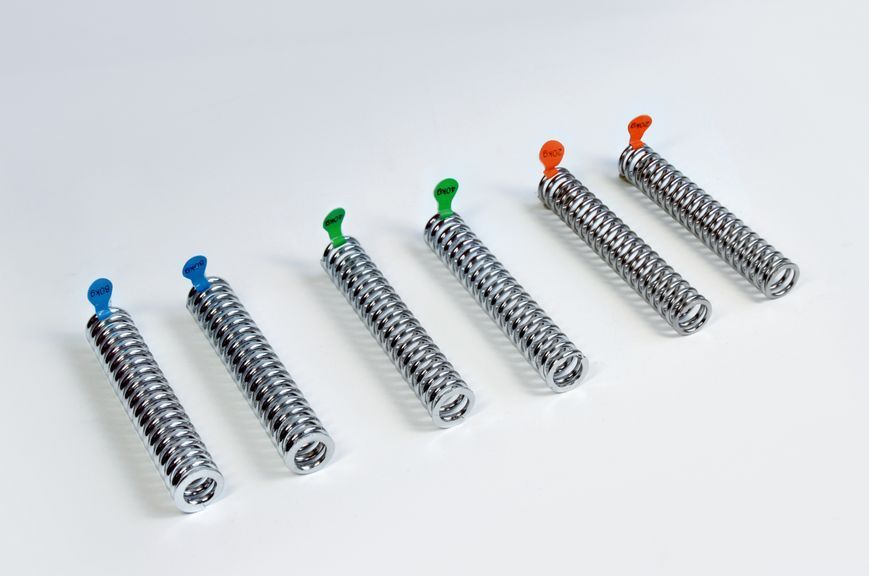

• Exchangeable springs facilitate fast switching of the capacity (additional spring sets are included with delivery). The varying rigidity of the individual springs makes the hand grip dynamometer ideal for a wide variety of patient groups, e.g. children or senior citizens or in sports medicine

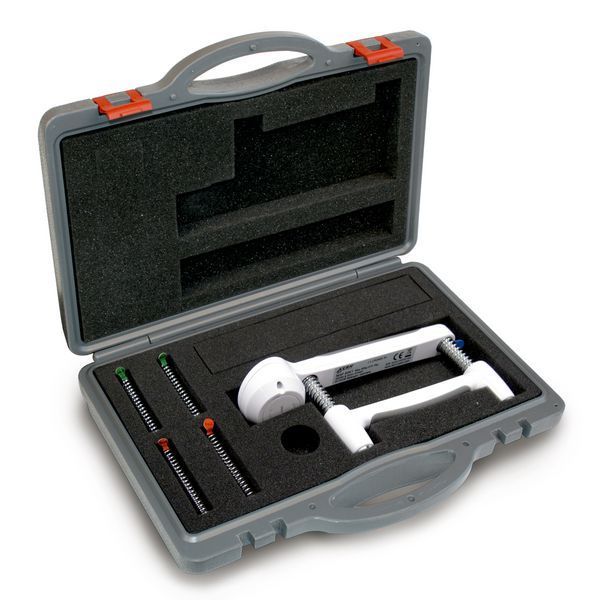

• Stable case for safe, easy transport and for storage of the additional spring sets, standard, W×D×H 350×265×85 mm

• Rehabilitation facilities
• Physiotherapists and occupational therapists
• Outpatient facilities
• Retirement and nursing homes

Weighing range (Max): 80 kg
Readability (g): 100 g
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for conformity assessment: 965-230
Article number for DAkkS calibration: 963-130
Material weighing plate: steel, powder-coated
Dimension weighing platform (W×D×H): 1000×1000×85 mm
Dimension weighing platform (Width): 1000 mm
Dimension weighing platform (Depth): 1000 mm
Dimension weighing platform (Height): 85 mm
Dimensions weighing surface (W×D): 1000×1000 mm
Dimension weighing surface (Width): 1000 mm
Dimension weighing surface (Depth): 1000 mm
Display type: LCD
Display digit height: 48 mm
Units: kg; g; ffa; PCS; %
Supplied power supply: Power supply unit
Battery / accumulator type: Li-Ion
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 8 h
Rechargeable battery operating time - backlight on: 11 h
Rechargeable battery operating time - backlight off: 22 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec
Battery: 3 V CR2032
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 (optional),Ethernet (optional),Alibi memory (optional, factory),analogue (0 - 10 V) (optional),analogue (4 - 20 mA) (optional),Bluetooth BLE (v4.0) (optional),USB-Device (optional),KUP,WiFi (optional)
Humity of environment [Min]: 0 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 135 kg
Net weight: 95 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Freight
Dimensions packaging (W×D×H): 1120×1080×360 mm
Dimensions packaging Width: 1120 mm
Dimensions packaging Depth: 1080 mm
Dimensions packaging Height: 360 mm
Total packaging weight: 37 kg
Packaging component carton/cardboard: 740 g
Packaging component wood: 36260 g
Load cell connection: 6-wire
Pictograms Standard: External adjustment; KERN IoT-ready; Data interface KERN Universal Port (KUP); Interface command set KERN Communication Protocol (KCP); GLP/ISO Protocol; Value & time; Piece counting function; Sum function; Percentage determination function; Units switchable; Measuring with tolerance range (checkweighing function); Hold function (average value); Platform: Protection against dust and water splashes IP67; Load Cell: Protection against dust and water splashes IP67; Universal plug-in power supply; Weighing principle Strain gauges; Delivery Truck 2 days
Pictograms Option: EasyTouch compatible; Data interface RS-232; Data Interface USB; Data Interface WiFi; Data Interface Bluetooth; Analogue interface; Network interface; Rechargeable battery; Accredited calibration (DKD)
Pictograms Factory: Alibi memory; Conformity assessment
Accessories: BFS-A07; CFS-A03; YKR-01; YKN-01; BFB-A03; BFS-A01N; BFS-A03N; BFS-A06N; YBA-A18S05; YKG-01; YKH-01; KUP-01; KUP-03; KUP-04; KUP-05; KUP-06; KUP-08; KUP-13; YMM-04; YKC-01; YKT-01; YKA-27; YBA-A18
