Datasheet Testo 760-1 (EN) | Instruction Manual Testo 760-1 (EN)

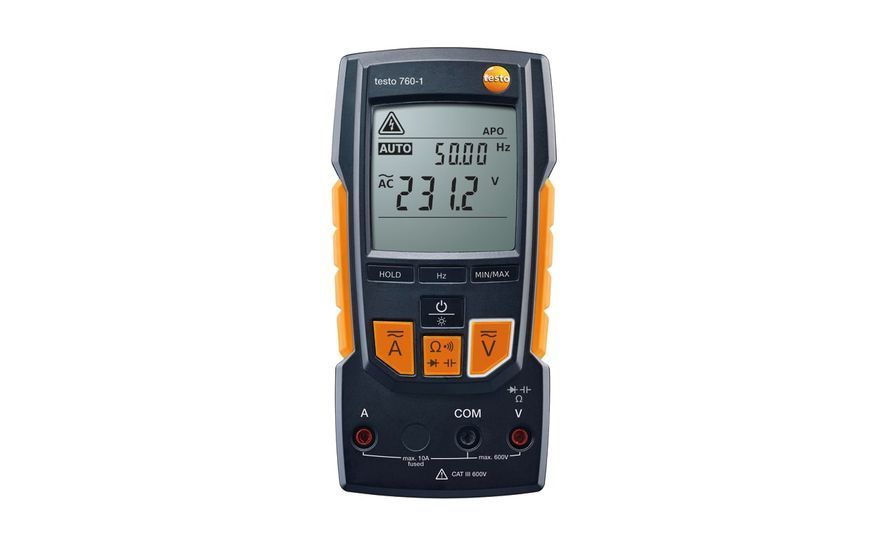

The compact digital multimeter Testo 760-1 sets high standards for entry-level electrical measuring instruments. Eliminating the traditional rotary dial entirely, it implements automatic measurement parameter detection through the assignment of the measuring sockets. This modern setup prevents incorrect settings and rules out common configuration errors. Designed for safe one-handed control via illuminated function keys, it features a clear 2-line display for monitoring voltage, current, resistance, capacitance, and frequency in commercial facility inspection environments.
B2B Industrial Applications
- Electrical Facility Commissioning: Standard checking of AC/DC operational voltages and line continuity in utility layouts.
- Electronic Component Diagnostics: Measuring localized circuit resistance and capacitance limits during equipment troubleshooting.

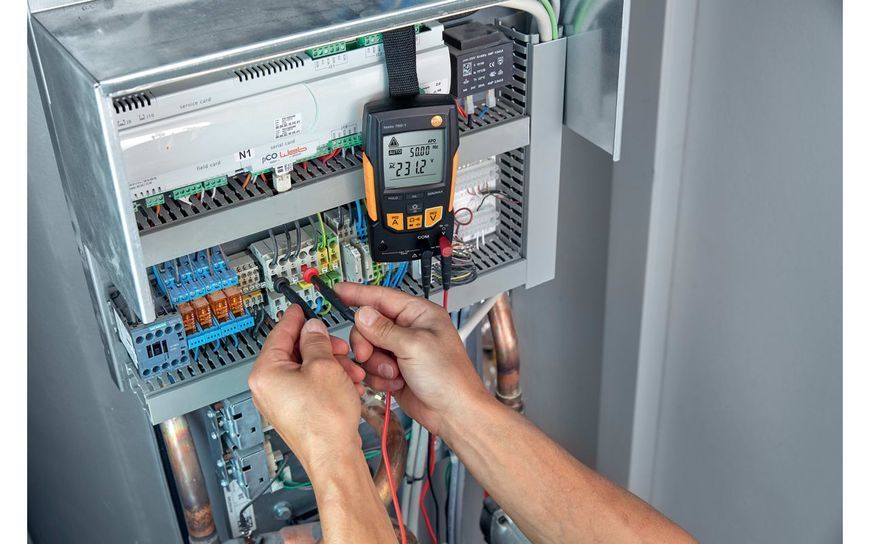

- HVAC Control Board Inspections: Routine checks of frequency parameters and signal inputs on primary heating and cooling automation blocks.
Technical Specifications
| Voltage Measuring Range | 1 mV to 600 V AC / DC |
| Current Measuring Range | 1 mA to 10 A AC / DC |
| Resistance Measuring Range | 0.1 Ohm to 40.00 MOhm |
| Capacitance Measuring Range | 0.01 nF to 100 microF |
| Frequency Measuring Range | 0.001 Hz to 512.0 kHz |
| Overvoltage Category Rating | CAT III 600V |
| Enclosure Protection Class | IP64 (dustproof and splash resistant) |
| Interface Sockets | 4 measuring jacks with automatic link gating |
| Battery Type / Dimensions | 3x AAA micro / 167 x 85 x 45 mm |
Package Contents
- Testo 760-1 digital multimeter
- 1x set of high-quality measuring cables
- Calibration protocol
- 3x AAA batteries
