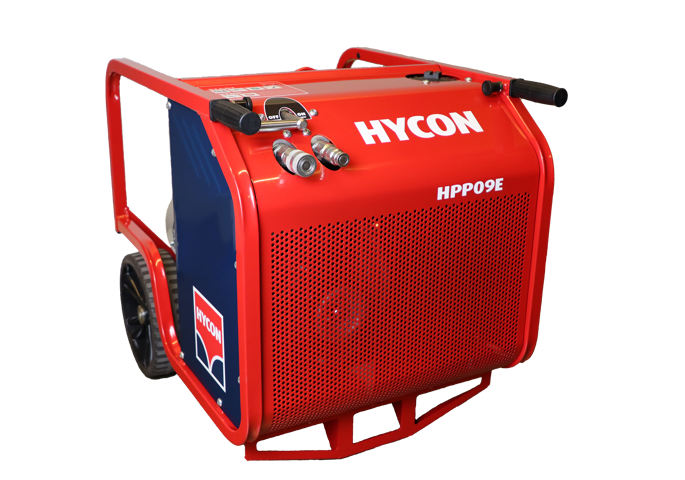

Electric Hydraulic Power Pack HYCON HPP09E
Downloads:
PDF Instruction 1
The HYCON HPP09E is the most compact electric hydraulic power pack engineered for maximum performance and indoor operations. Powered by a heavy-duty 5.5 kW Hoyer MS112 electric motor, this robust unit delivers an optimal oil flow of 20 LPM at a working pressure of 120 bar, making it an ideal choice for noise-sensitive or zero-emission job sites requiring 3x400V 16A power supply.
Designed with mobility and operator convenience in mind, the HPP09E weighs only 88 kg and features compact frame dimensions of 705 x 550 x 645 mm, allowing for easy transportation in standard service vehicles or cars. Its heavy-duty construction ensures continuous operation under demanding conditions, supplying steady power to specialized 20 LPM hydraulic cutters, saws, breakers, and core drills.
Applications
- Indoor concrete cutting and diamond drilling where exhaust fumes are prohibited
- Building renovation and demolition projects in enclosed environments
- Specialized diamond sawing and concrete breaking operations
- Tool rental fleets serving professional cutting contractors
- Utility installation and indoor infrastructure maintenance
Specifications
| Parameter | Value |
| Model / Item No. | HYCON HPP09E / 2020055 |
| Motor Type | Hoyer MS112 (5.5 kW, 16 A) |
| Power Supply | 3 x 400 V, 50 Hz |
| Oil Flow Rate | 20 LPM |
| Working Pressure | 120 bar |
| Maximum Pressure | 150 bar |
| Dimensions (L x W x H) | 705 x 550 x 645 mm |
| Weight | 88 kg |
| Sound Power Level LWa | 94 dB |
| Certification | CE approved |
Package Contents
- HYCON HPP09E Electric Hydraulic Power Pack
- Integrated Hoyer MS112 Electric Motor
- User Manual and Maintenance Guide
- CE Compliance Certificate
