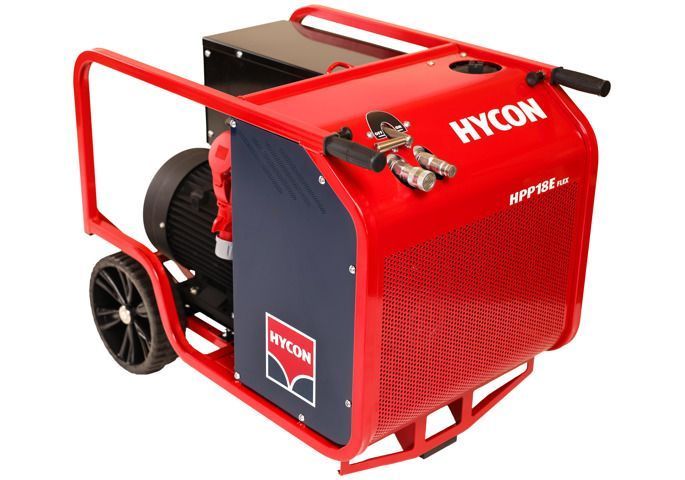

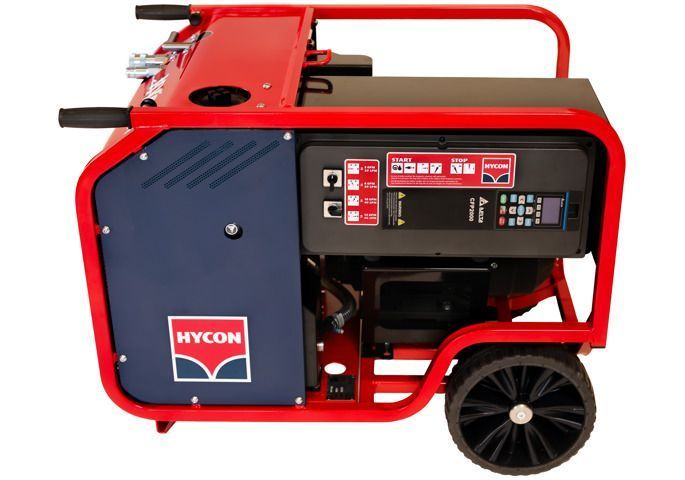

Electric Hydraulic Power Pack HYCON HPP18E FLEX
Downloads:
PDF Instruction 1
The HYCON HPP18E FLEX is a professional electric hydraulic power pack designed for heavy duty applications in concrete cutting and utility works. Powered by a high performance 13.2 kW electric motor this unit provides a completely emission free power source ideal for indoor operation and confined spaces where internal combustion engines cannot be operated.
Equipped with an advanced Variable Frequency Drive VFD system the unit regulates motor output speed to adjust hydraulic oil flow between 20 30 40 and 46 LPM. Unlike traditional power packs that restrict flow while running at full RPM this frequency control optimizes energy consumption reduces thermal stress on hydraulic fluid and delivers maximum efficiency during operation.
Applications
- Indoor concrete sawing and core drilling operations
- Utility pipe cutting and municipal maintenance works
- Enclosed space demolition and restoration projects
- Powering heavy hydraulic saws cut off tools and pumps
- Specialized industrial applications requiring zero emissions
Specifications
| Item number | 2020211 |
| Motor power | 13.2 kW (18 HP) Hoyer HMA3 132M2 |
| Electrical supply | 3x400/480V 50/60 Hz 35A |
| Hydraulic oil flow | 20-30-40-46 LPM |
| Working pressure | 120 bar |
| Maximum pressure | 160 bar |
| Noise level LWa | 99 dB |
| Dimensions L x W x H | 805 x 625 x 704 mm |
| Weight | 155 kg |
| Certification | CE approval |
Package Contents
- HYCON HPP18E FLEX hydraulic power pack
- Integrated VFD control unit
- Standard quick release hydraulic couplings
- User operation manual
