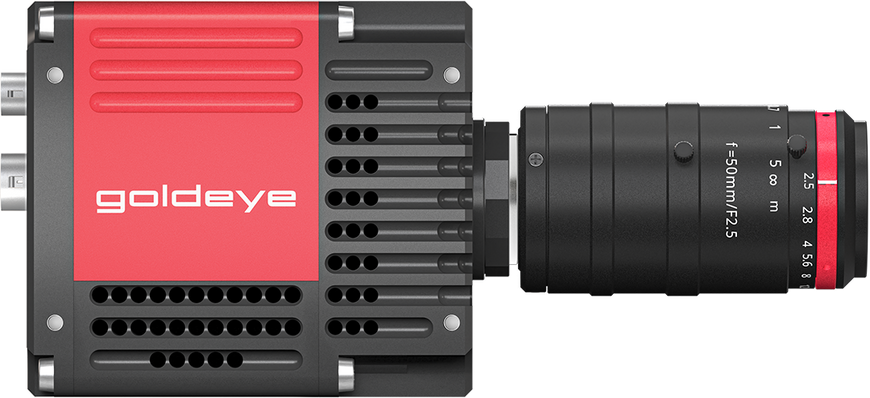

Extended SWIR InGaAs Camera Goldeye CL-008 XSWIR 2.2 TEC2 Camera Link
Downloads:
PDF Instruction 1
The Goldeye CL-008 XSWIR 2.2 TEC2 is an advanced high-speed extended short-wave infrared camera designed for demanding scientific and industrial imaging applications. Featuring a sensitive InGaAs sensor with a spectral response spanning from 1200 nm up to 2200 nm, it delivers exceptional signal-to-noise ratio and precise spectral detail. Equipped with a two-stage thermoelectric cooler (TEC2), this camera stabilizes sensor temperature, minimizing dark current for low-light and long exposure requirements.
With a full frame rate of up to 344 fps at 320x256 resolution, the system operates over a robust Camera Link Base digital interface. The integrated 256 MB image buffer guarantees smooth high-speed data transmission without frame drops. Powerful InGaAs sensor technology combined with global shutter design makes it an ideal solution for dynamic thermal process analysis, semiconductor inspection, and spectrographic measurements.
Applications
- Semiconductor wafer inspection and quality control
- High-speed spectral analysis and sorting
- Hyperspectral imaging and material identification
- Laser beam profiling in extended SWIR band
- Thermal imaging of hot glass and metal processes
- Scientific research requiring low dark current
Specifications
| Parameter | Value |
| Model | Goldeye CL-008 XSWIR 2.2 TEC2 |
| Sensor Type | CMOS InGaAs Area Scan |
| Spectral Range | 1200 nm to 2200 nm |
| Resolution | 320 x 256 pixels |
| Frame Rate | 344 fps |
| Pixel Size | 30.00 um x 30.00 um |
| Sensor Size | 9.6 x 7.68 mm |
| Shutter Type | Global Shutter |
| Digital Interface | Camera Link Base |
| Cooling | Two-stage Thermo-Electric Cooler (TEC2) |
| Dynamic Range / Bit Depth | 14-bit |
| Exposure Time Range | 6 us to 7 ms |
| On-board Memory | 256 MB RAM |
| Operating Temperature | -20 C to +55 C |
| Dimensions | 90 x 80 x 80 mm |
| Weight | 730 g |
| Power Supply | 10.8 V to 30.0 V DC (20 W) |
Package Contents
- Goldeye CL-008 XSWIR 2.2 TEC2 camera body
- Industrial I/O mating connector
- Quick installation guide
- Factory test report
