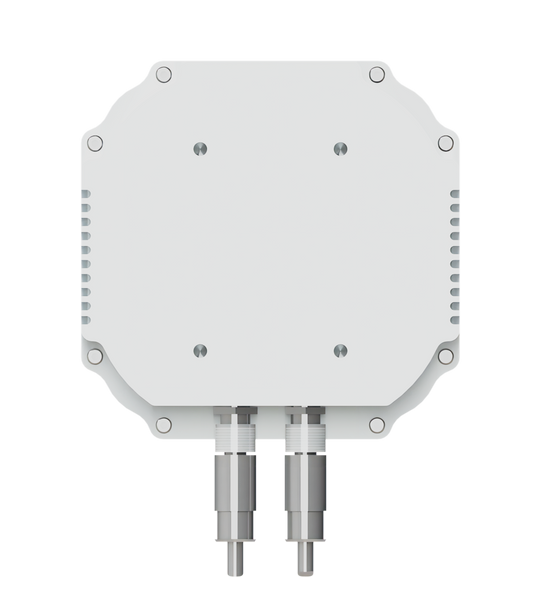

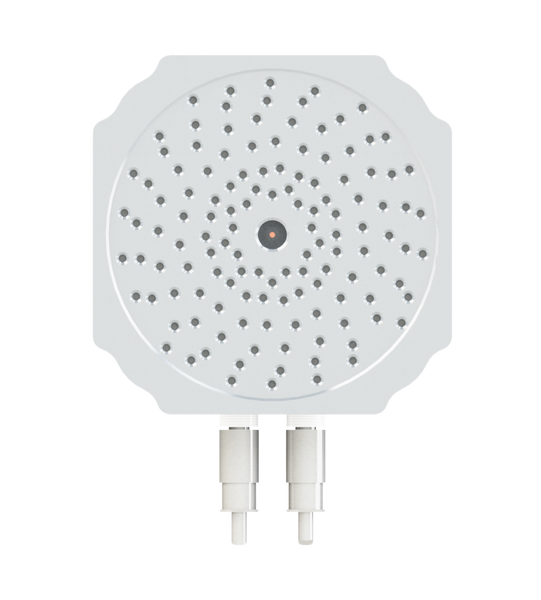

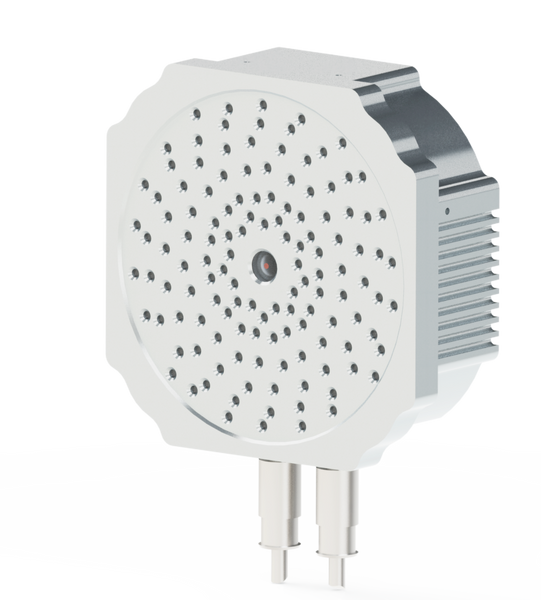

Fixed Acoustic Imaging Camera Hertzinno HZ-FA-371
Downloads:
PDF Instruction 1
The Hertzinno HZ-FA-371 is an advanced fixed acoustic imaging camera engineered for continuous 24/7 online monitoring of electrical partial discharge, compressed gas leaks, and mechanical noise anomalies. Equipped with a high-density 128-channel MEMS microphone array and sophisticated AI beamforming algorithms, this device precisely localizes sound sources and visualizes them over high-resolution video streams in real time across a distance of 0.3m to 50m.
Designed for demanding industrial infrastructure, the camera features robust explosion-proof certification Ex ib IIC T4 Gb / Ex ib IIIC T80°C Db and IP66/IP68 ingress protection. Seamless system integration with enterprise platforms and robotic systems is achieved through standard industrial interfaces including RTSP, HTTP, WebSocket, and Ethernet.
Scope of Application
- Continuous partial discharge and corona monitoring in high-voltage substations and switchgear rooms
- Automated gas leak localization across pipelines, valves, flanges, and compressor stations
- Compressed air leakage detection in automated manufacturing facilities
- Integration with unmanned patrol platforms and robotic inspection systems
- Acoustic monitoring of switchgear, UPS, and cooling zones in data centers
Specifications
| Parameter | Value |
| Microphone Array | 128 Channel Digital MEMS |
| Frequency Bandwidth | 2 kHz - 65 kHz |
| Detection Distance | 0.3 m - 50 m |
| Dynamic Range | 30 dB - 120 dB |
| Sampling Rate | 130 kHz |
| Camera FOV | 72° ±3° |
| Video Resolution | Up to 2592x1944 H.264 |
| Leak Rate Sensitivity | >0.035 L/min @120 kPa (0.3m), >0.067 L/min @300 kPa (3m) |
| Communication Interfaces | Ethernet, HTTP, WebSocket, RTSP |
| Explosion Proof Rating | Ex ib IIC T4 Gb / Ex ib IIIC T80°C Db |
| Ingress Protection | IP66 / IP68 |
| Power Supply | DC 12V / 3A |
| Operating Temperature | -20°C to +70°C |
| Dimensions and Weight | 135 x 171.43 x 48 mm / approx. 900g |
Package Content
- Hertzinno HZ-FA-371 Acoustic Camera
- Protective dust cover
- Power and Ethernet communication cables
- Mounting bracket set
- User manual and factory inspection certificate
