Flue gas analyzer testo 300 NEXT LEVEL kit 2 (with printer)

Coming soon
Item: 0564 3002 71
Check the price
Log in to the site to
add the item to your wish list
%
Login to display the cumulative discount
Get a Quote
Log in to the site to
add the item to the waiting list
Description

Download Software Manual (PDF) | Download Instruction Manual (PDF)

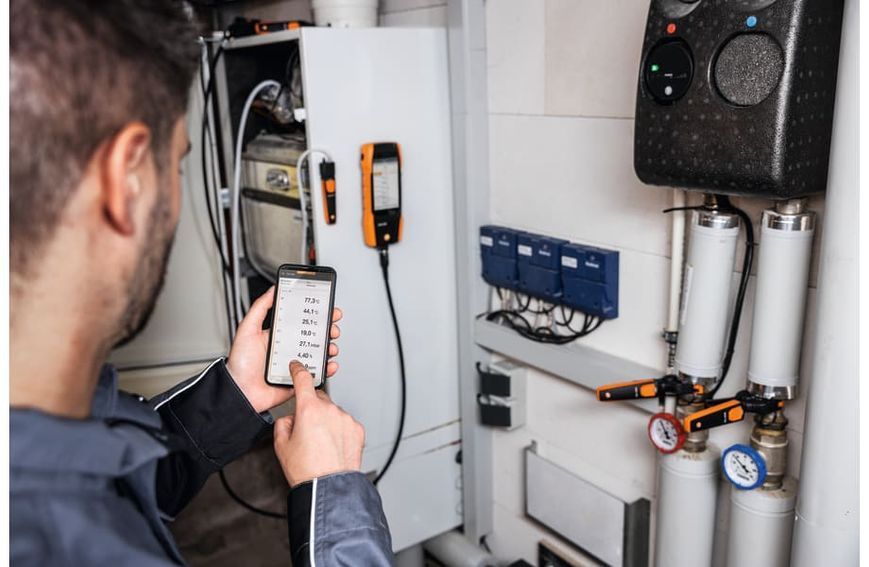

The TÜV-tested testo 300 NEXT LEVEL kit 2 is a professional flue gas analyzer developed for high-precision measurements on heating systems. Equipped with an O2 sensor and a CO sensor up to 4000 ppm, this system features intuitive measurement menus on a fast-response Smart-Touch display. It allows efficient, wireless parallel operation of up to four testo Smart Probes simultaneously, secondary screen integration, and data export into user-specific engineering software.

Industrial Applications and Scenarios:

  • HVAC Installation and Commissioning: Testing, balancing, and exhaust monitoring of residential and commercial gas heating systems.
  • Industrial Burner Maintenance: Inspection of small to medium-sized industrial boiler plants and emission profiling.
  • Energy Efficiency Auditing: Immediate calculation of thermal loss and combustion parameters for facilities engineering.

Technical Specifications:

  • Flue gas O₂ measuring range: 0 to 21 Vol.% (Accuracy: ±0.2 Vol.%)
  • Flue gas CO measuring range: 0 to 4000 ppm (Accuracy: ±20 ppm within 0 to 400 ppm, ±5% of mv within 401 to 2000 ppm)
  • Temperature - TC Type K (NiCr-Ni): -40 to +1200 °C (Resolution: 0.1 °C from -40 to +999.9 °C)
  • Differential Pressure (Piezoresistive): -100 to +200 hPa (Accuracy: ±0.5 hPa from 0 to +50.0 hPa)
  • Draught Pressure (Piezoresistive): -9.99 to +40 hPa (Resolution: 0.001 hPa from 0 to 0.1 hPa)
  • Ambient CO measuring range: 0 to 2000 ppm (Accuracy: ±10 ppm from 0 to 100 ppm)
  • Calculated parameters: Flue gas degree of effectivity Eta (0 to 120 %), Flue gas loss (0 to 99.9 %), CO₂ calculation from O₂
  • Memory capacity: 1,000,000 measuring values
  • Battery life: 10 h (Rechargeable Lithium ion battery)
  • Protection class: IP40

Kit Components: testo 300 NEXT LEVEL flue gas analyzer, O2 and CO sensor up to 4000 ppm, mains unit, basic flue gas probe, testo Bluetooth Connector, spare dirt filters, testo Bluetooth printer, spare thermal paper, EasyHeat software, and heavy-duty instrument case.
