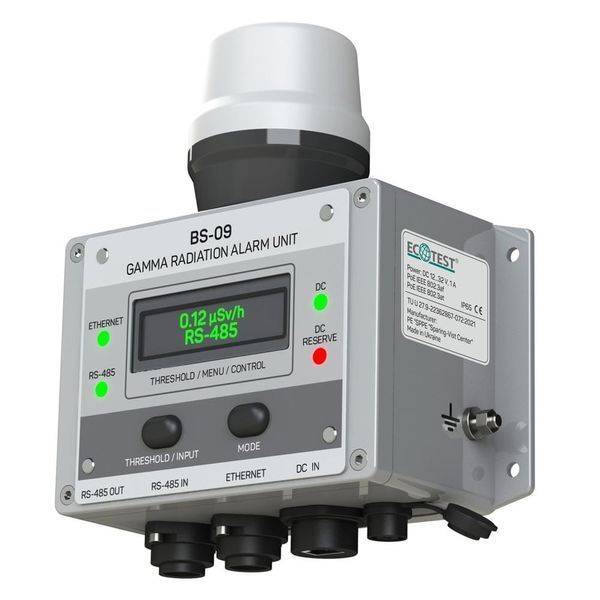

Gamma Radiation Alarm Unit Ecotest BS-09
Downloads:
PDF Instruction 1
The professional Ecotest BS-09 gamma radiation alarm unit is designed for immediate visual and audible alerting of personnel regarding elevated radiation levels at hazardous facilities. Operating in pair with the BDBG-09 radiation detection unit, it displays real-time ambient dose equivalent rate (DER) values on a high-contrast OLED display.
This device features advanced network integration capabilities via RS-485 and Ethernet interfaces supporting Modbus TCP and proprietary Ecotest communication protocols. The integrated Li-Po rechargeable battery guarantees up to 24 hours of autonomous operation, while non-volatile flash memory stores up to 24 hours of continuous measurement history.
The built-in three-color light indicator and 80 dB sound alarm system instantly signal normal radiation background (green), threshold exceeded (yellow), and safety limit exceeded (red). The specialized BS-09 Geo version integrates a GNSS satellite navigation module for geo-referencing radiation data in mobile monitoring systems.
Scope of Application
- Continuous radiation monitoring at nuclear power plants and industrial sites
- Personnel safety alerts in radiological laboratories and medical institutions
- Border control checkpoints and customs radiation monitoring systems
- Mobile radiation survey systems and environmental monitoring (BS-09 Geo version)
- Civil defense and emergency response post monitoring
Specifications
| Parameter | Value |
| DER indication range | 1x10-8 to 99.9 Sv/h |
| DER alarm threshold setting range | 1x10-8 to 99.9 Sv/h |
| Power supply via PoE (Ethernet) | 25 to 60 V |
| External power supply (RS-485 / DC jack) | 12 to 32 V |
| Output supply voltage for external detector | 12 ± 1.2 V |
| Maximum power consumption | 7.5 W |
| Sound alarm volume | 80 dB |
| Communication interfaces | RS-485, Ethernet (Modbus TCP, Ecotest) |
| Battery operation time | up to 24 hours |
| Measurement history log | 24 hours |
| Operating temperature range | -20 to +50 °C |
| Dimensions | 181 × 230 × 81 mm |
| Weight | 1.2 kg |
| GNSS positioning accuracy (Geo version) | 2.5 m RMS |
Package Contents
- Ecotest BS-09 gamma radiation alarm unit
- Connecting cable for BDBG-09 detector unit
- Mounting hardware kit
- User manual and technical passport
- Protective transport packaging
