Handheld Hydraulic Cut-off Saw HYCON HCS14 Underwater
Downloads:
PDF Instruction 1

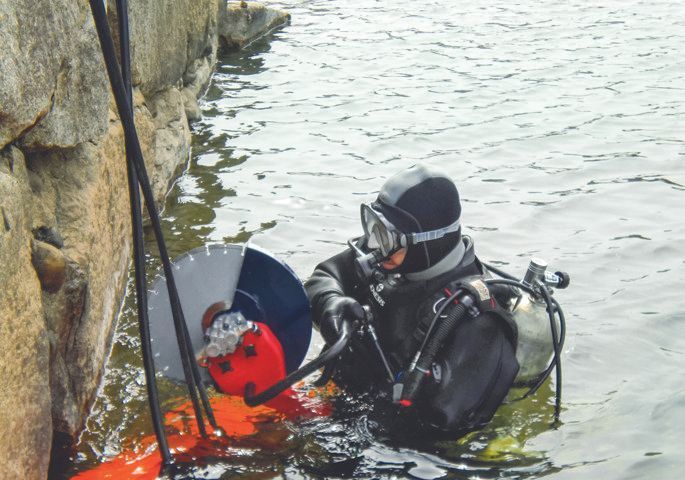

The HYCON HCS14 Underwater hydraulic saw represents the pinnacle of handheld cutting tools engineered specifically for extreme underwater and subsea operation. Equipped with a high performance hydraulic direct drive motor, this tool delivers uncompromising power while maintaining minimal maintenance requirements in demanding maritime and construction environments.
Featuring advanced safety systems, the integrated pressure relief valve prevents dangerous kickbacks by automatically stopping blade rotation if jamming occurs. The specialized blade guard incorporates dedicated flushing holes designed for easy underwater cleaning and debris removal, ensuring uninterrupted operational efficiency for professional diving contractors.
Application Scope
- Subsea concrete cutting and underwater infrastructure repair
- Cutting reinforced concrete, brickwork, and masonry structures
- Steel pipe and metal profile cutting during offshore construction
- Emergency rescue operations and maritime salvage work
- Commercial diving construction and hydrotechnical maintenance
Technical Specifications
| Item Number | 3030401-01 |
| Weight without hose/disc | 7.4 kg |
| Blade Diameter | 350 mm |
| Cutting Depth | 137 mm |
| Oil Flow Rate | 20-30 LPM |
| Working Pressure | 120 bar |
| Maximum Hydraulic Pressure | 172 bar |
| Max Rotation Speed | 3800 rpm |
| Max Peripheral Blade Speed | 69 m/s |
| Sound Power Level LWa | 116 dB |
| Certification | CE Approved |
Package Contents
- HYCON HCS14 Underwater hydraulic cut-off saw unit
- Protective blade guard with specialized underwater cleaning slots
- Hydraulic tail hoses with quick release couplings
- User manual and safety guidelines
