Handheld Hydraulic Post Driver HYCON HPD
Downloads:
PDF Instruction 1

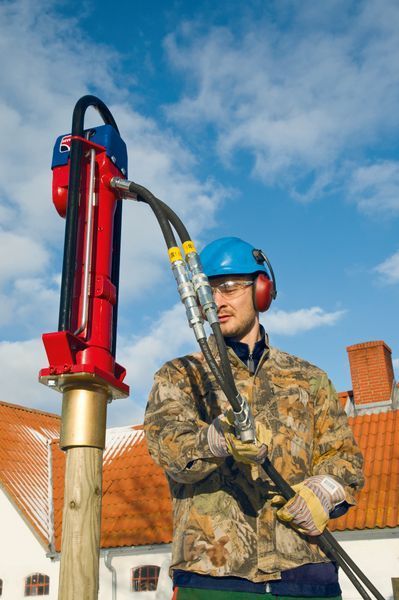

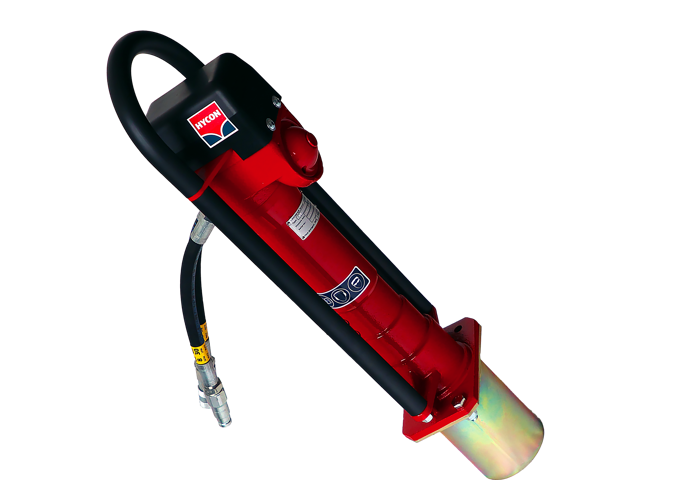

The HYCON HPD hydraulic post driver is a high-performance, maintenance-free solution engineered for heavy-duty piling operations. Designed for efficiency and durability, this tool operates seamlessly at a working pressure of 100 bar with an oil flow rate of 20-30 LPM. It provides maximum driving force without demanding complex daily maintenance, making it an essential tool for utility contractors and agricultural engineers.
Featuring flexible profile compatibility, the tool utilizes replaceable adaptors that fit square posts from 65x65 mm to 110x110 mm and round posts from Ø60 mm to Ø130 mm. The HYCON HPD can be powered directly by any hydraulic power pack or connected to excavators and tractors using the HYCON HFD oil flow divider, offering total field adaptability.
Application Scope

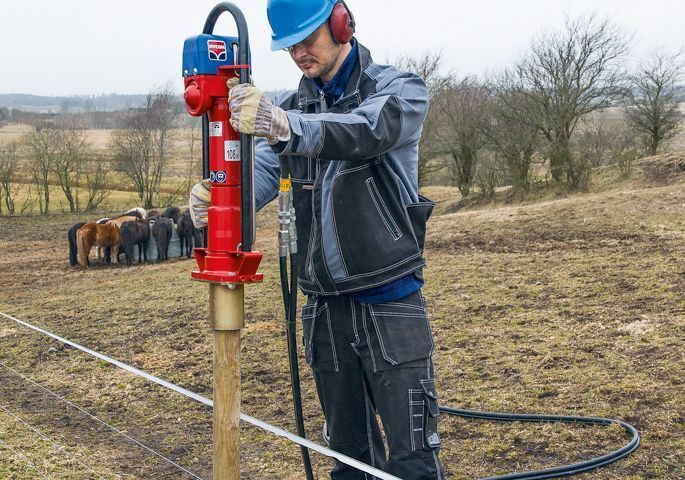

- Fence post driving and enclosure installation
- Mounting traffic and road warning signs
- Vineyard and forestry support stake setup
- Guardrail and temporary safety barrier installation
- Agricultural framing and field anchoring
Specifications
| Item Number | 1010700 |
| Optional Trigger Valve Kit Item No. | 4142828 |
| Weight | 28.2 kg |
| Dimensions (L x W) | 645 x 230 mm |
| Oil Flow Rate | 20-30 LPM |
| Working Pressure | 100 bar |
| Maximum Pressure | 160 bar |
| Sound Power Level (LWa) | 96 dB |
| Vibration Level (3 axis) | 9.4 m/s2 |
| Square Adaptors | 65 x 65 mm to 110 x 110 mm |
| Round Adaptors | Ø60, Ø80, Ø105, Ø130 mm |
| Certification | CE approved |
Package Includes
- HYCON HPD Hydraulic Post Driver

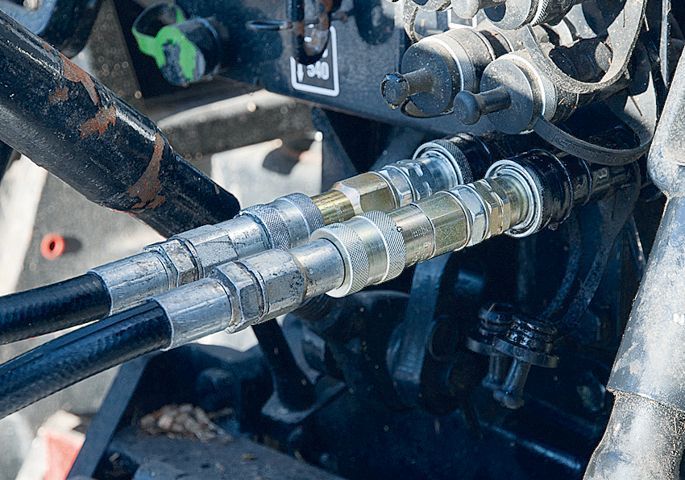

- Standard quick-release hydraulic couplings
- Operating instructions and technical documentation
