HYCON HFD Oil Flow Divider
Downloads:
PDF Instruction 1

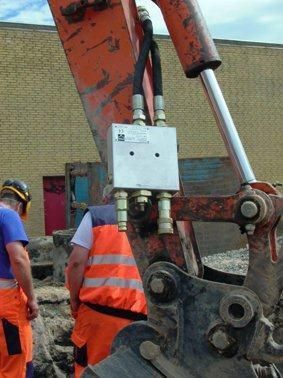

The HYCON HFD oil flow divider is an essential solution for connecting hydraulic tools directly to heavy machinery power take-outs (PTO) such as mini excavators, backhoes, and skid steers. By regulating hydraulic parameters, the HFD eliminates the need for an external hydraulic power pack on job sites.
Equipped with advanced safety features, this device serves as a comprehensive overload protection system. It integrates a flow regulation valve to control output, an adjustable pressure relief valve to limit maximum operating pressure, and a check valve to guarantee the correct direction of oil flow.
Featuring a robust aluminum casing, the unit ensures durable operation in extreme environments while protecting high-performance saws, pumps, and breakers from excessive hydraulic power.
Applications

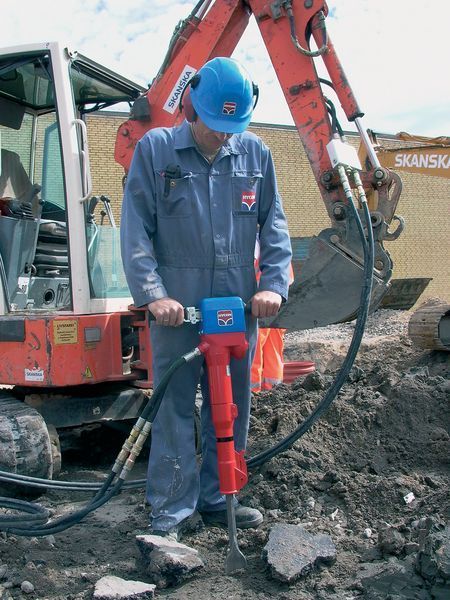

- Connecting hydraulic saws and breakers to mini excavators

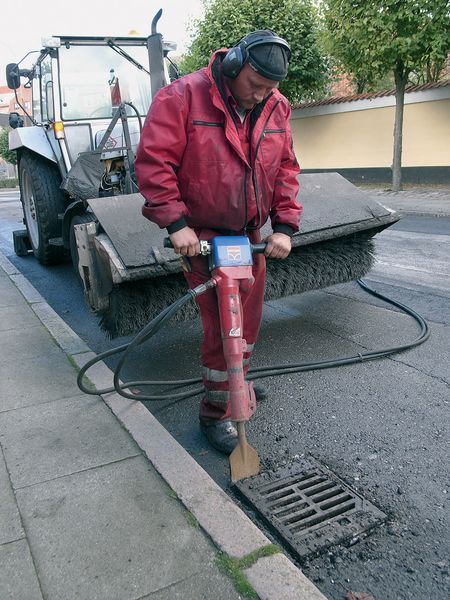

- Operating hydraulic submersible pumps via tractor or skid steer PTO
- Protecting sensitive hydraulic tools from pressure spikes on construction sites
- Hydraulic flow regulation in municipal utility repair operations
- Field maintenance works using existing heavy equipment power sources
Technical Specifications
| Item Number | 3030060 |
| Max Input Oil Flow | 80 LPM |
| Output Oil Flow Settings | 20, 30, or 40 LPM (max 160 bar) |
| Max Input Pressure Relief Valve | 240 bar |
| Max Output Pressure Relief Valve | 160 bar (adjustable) |
| Housing Material | Solid Aluminum |
Package Includes

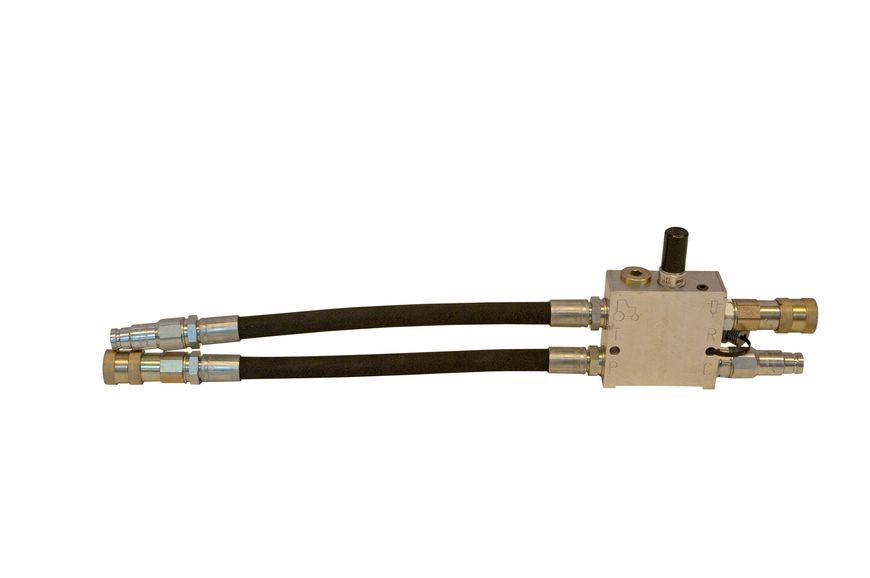

- HYCON HFD Oil Flow Divider Unit
- 0.3 m hydraulic hose
- Quick-release coupling set
- Replaceable flow restriction nozzles (20, 30, 40 LPM)
