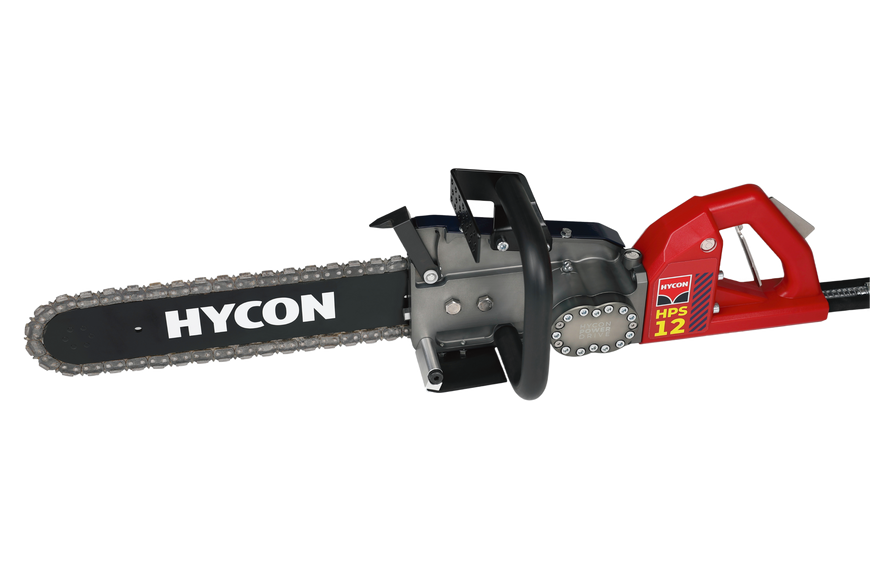

Hydraulic Concrete Power Saw HYCON HPS12
Downloads:
PDF Instruction 1

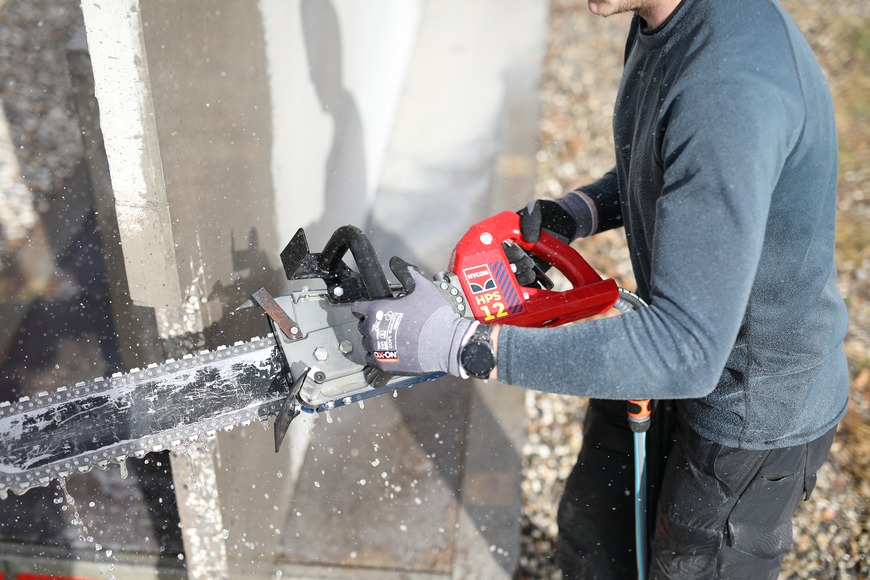

The HYCON HPS12 hydraulic concrete saw is an exceptionally powerful, heavy-duty cutting tool designed for demanding professional application in extreme conditions. Powered by a high-efficiency hydraulic drive system operating at 40-46 LPM oil flow, it cuts seamlessly through reinforced concrete, solid steel, natural rock, and masonry structures. Featuring the shortest body length on the market at just 480 mm, this saw provides superior control, reduced operator fatigue, and unmatched efficiency in highly confined working spaces.
Built standard for precision flush cutting, the tool incorporates an integrated wall walker mechanism that enhances leverage and stability during tough horizontal and vertical cuts. The special purpose-built HYCON Power Drive motor eliminates seal failure issues commonly found in standard motors, drastically lowering maintenance requirements and extending total operational lifespan. Supplied with 2-meter whip hoses, the heavy quick-release couplings rest on the ground, minimizing direct strain on the operator hands.
For ultimate cutting efficiency and perfect straight alignment, the HPS12 mounts effortfully onto the optional SawEZ guide rail system. Engineered with low triple-axis vibration levels under 2.5 m/s², it ensures full compliance with modern workplace ergonomic and safety standards.
Application Areas
- Deep penetration cutting of heavily reinforced concrete walls and foundations
- Precision flush cutting along floors, ceilings, and adjacent walls
- Emergency and technical cutting of steel encased pipes and utility lines
- Constrained space structural modification and demolition work
- Natural rock and stone block dimensioning in civil engineering projects
Specifications
| Parameter | Value |
| Article Item No. | 3030800 |
| Weight (without hose/blade) | 8.0 kg |
| Overall Body Length | 480 mm |
| Maximum Cutting Depth | 630 mm |
| Required Hydraulic Oil Flow | 40 - 46 LPM |
| Working Pressure | 120 bar |
| Maximum System Pressure | 172 bar |
| Maximum Return Pressure | 40 bar |
| Maximum Rotation Speed | 5800 RPM |
| Chain Speed | 27 m/s |
| Whip Hose Length | 2.0 m |
| Sound Power Level (LWa) | 109 dB |
| 3-Axis Vibration Level | < 2.5 m/s² |
Package Includes
- HYCON HPS12 Hydraulic Saw Main Unit
- Integrated Wall Walker Attachment
- 2-meter Whip Hoses with Quick-Disconnect Couplings
- Operational and Maintenance Safety Manual
