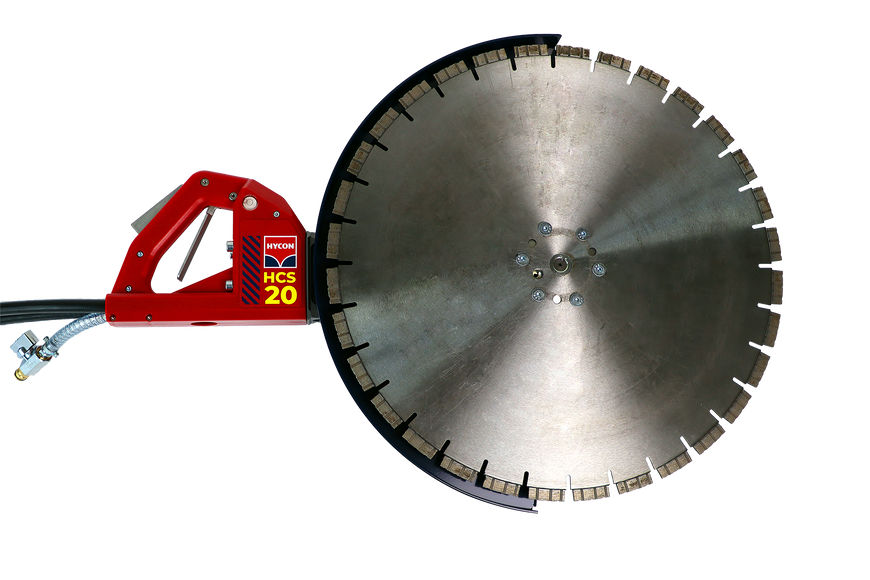

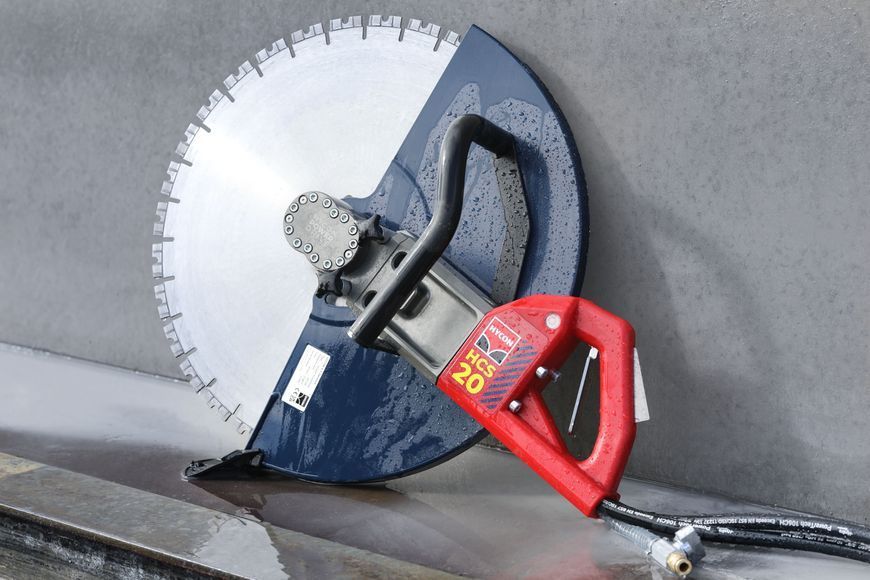

Hydraulic Cut-off Saw HYCON HCS20 PowerDrive Flush Cut
Downloads:
PDF Instruction 1
The HYCON HCS20 PowerDrive Flush Cut is a high-performance hydraulic cut-off saw engineered for extreme cutting operations in reinforced concrete brick masonry asphalt and steel structures. Designed specifically for flush cutting applications this saw allows operators to make precise cuts flush against walls floors and adjacent surfaces where standard blade guards create obstructions. Powered by an advanced HYCON PowerDrive hydraulic motor the HCS20 withstands return pressures up to 3x higher than standard hydraulic motors preventing seal damage and providing exceptional durability under demanding site conditions.
Safety and operational efficiency are paramount in the design of the HCS20. It features an integrated automatic water trigger system that activates flushing water simultaneously with the tool trigger keeping the blade cool and suppressing dust. Internal water channels route cooling water directly through the body and hydraulic motor ensuring cool surface temperatures during prolonged use. Furthermore an automatic pressure relief valve stops the saw instantly if the blade jams and the blade comes to a complete standstill within ten seconds of releasing the trigger ensuring maximum operator protection.
Applications

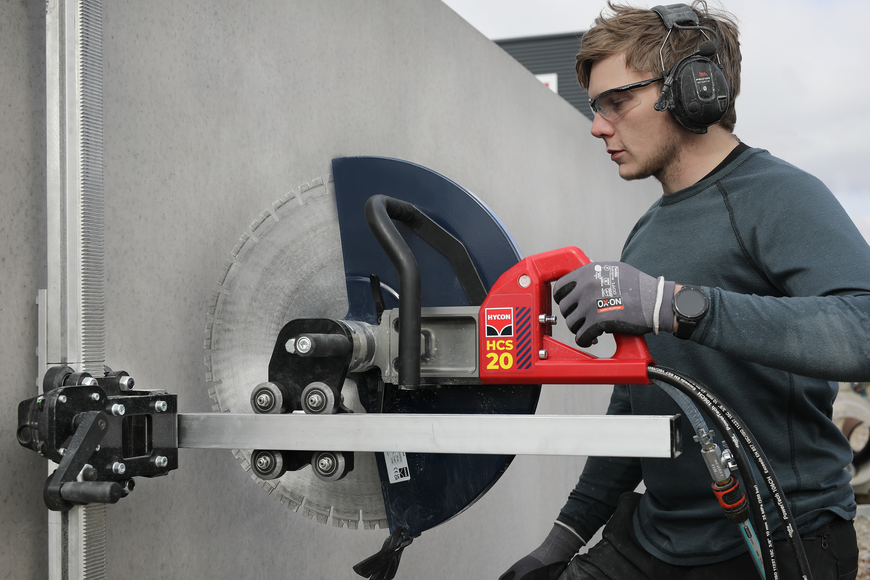

- Flush cutting of concrete walls floors and ceilings without offset
- Demolition and modification of reinforced concrete structures
- Cutting steel beams pipes and heavy structural elements
- Underwater and wet environment cutting operations
- Emergency rescue cutting and infrastructure repair
Specifications
| Item Number | 3030515 |
| Weight without hose and disc | 11.2 kg |
| Blade Diameter | Ø500 mm |
| Cutting Depth | 212 mm |
| Oil Flow Range | 30-46 LPM |
| Working Pressure | 120 bar |
| Max Pressure | 172 bar |
| Max Return Pressure | 40 bar / 580 PSI |
| Max Rotation Speed | 2500 rpm |
| Hose Whip Length | 2 m / 6 ft 6 in |
| Sound Power Level LWa | 110 dB |
| 3-Axis Vibration Level | Less than 2.5 m/s² |
| Certification | CE Approved |
Package Contents
- HYCON HCS20 PowerDrive Flush Cut Hydraulic Saw
- 2m Hose Whip with Quick Release Couplings
- Integrated Automatic Water Flushing System
- User Manual and Safety Documentation
