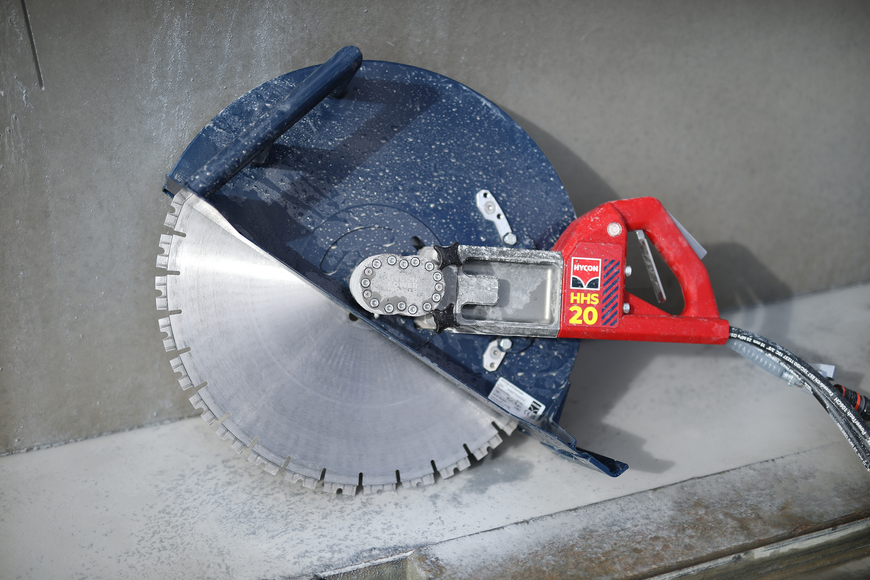

Hydraulic Handsaw HYCON HHS20 PowerDrive
Downloads:
PDF Instruction 1

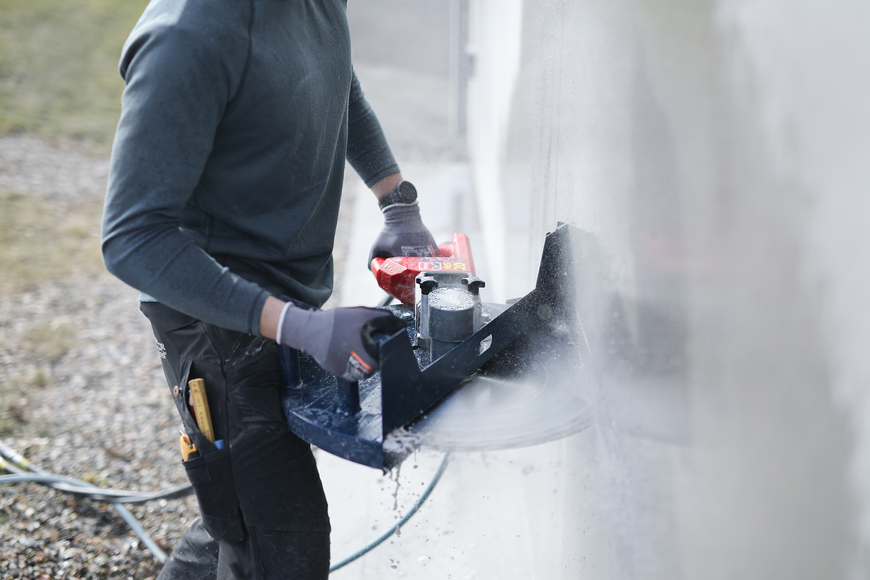

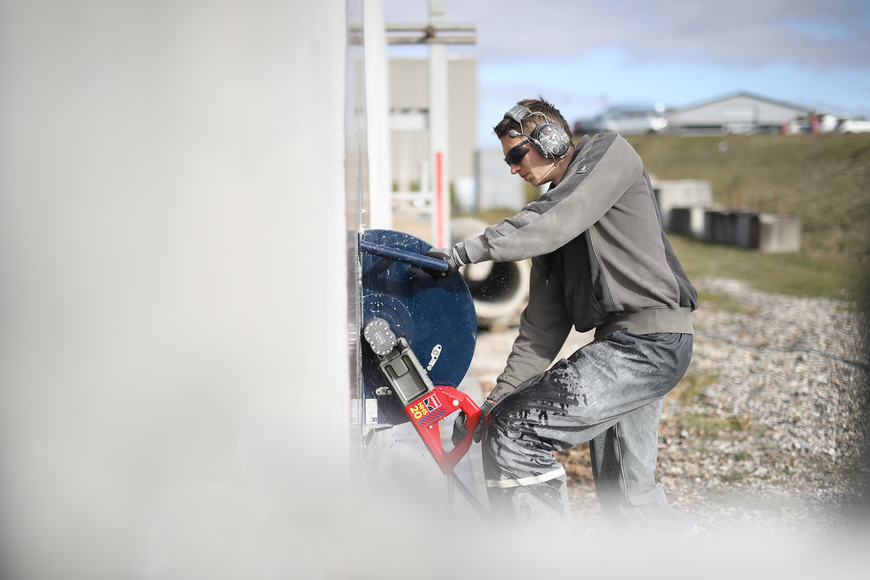

The HYCON HHS20 PowerDrive is an exceptionally robust hydraulic handsaw designed for continuous cutting through reinforced concrete, rock, masonry, and structural steel. Built for extreme operational conditions, this high-performance saw allows operators to perform precise horizontal and vertical cuts where heavy machinery cannot operate.
Equipped with the innovative HYCON PowerDrive direct motor technology, the saw eliminates seal failures and minimizes mechanical wear. The integrated automatic water activation system synchronizes blade flushing with the throttle trigger, ensuring efficient dust suppression and optimal diamond blade cooling.
Scope of Application
- Cutting window and door openings in reinforced concrete walls
- Heavy-duty demolition and restructuring of concrete structures
- Cutting steel beams, pipes, and metal frameworks
- Underwater and underground cutting operations
- Working in confined spaces inaccessible to excavators or track saws
Specifications
| Item number | 3030530 |
| Blade diameter | Ø500 mm |
| Max cutting depth | 212 mm |
| Oil flow rate | 30-46 LPM |
| Working pressure | 120 bar |
| Max hydraulic pressure | 172 bar |
| Max return pressure | 40 bar / 580 PSI |
| Max rotation speed | 2200 rpm |
| Max blade peripheral speed | 59 m/s |
| Hose whip length | 2 m |
| Weight without hose/disc | 11.6 kg |
| Vibration level (3-axis) | <2.5 m/s² |
| Sound power level LWa | 110 dB |
Package Contents
- HYCON HHS20 PowerDrive hydraulic handsaw unit
- 2m whip hose with quick-release couplings
- Front-mounted control handle
- Skid plate with replaceable rear splash guard
- Integrated automatic water flushing system
- User operation and maintenance manual
