Hydraulic Power Pack HPP18V MULTIFLEX Gasoline Vanguard 18 HP
Downloads:
PDF Instruction 1

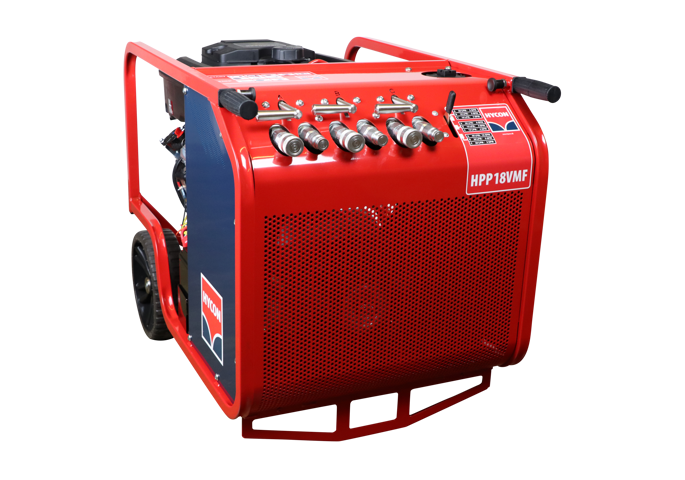

The HPP18V MULTIFLEX hydraulic power pack represents an advanced engineering solution designed for demanding professional operations. Built upon a high performance platform, this robust system features a tandem gear pump delivering exceptional versatility through two independent outlets or a combined high flow configuration.
Powered by a reliable Vanguard 18 HP gasoline engine, the MULTIFLEX provides up to eight distinct flow settings. This allows operators to run two hydraulic tools simultaneously at 20 lpm or a single heavy duty tool at up to 40 lpm without performance compromise.
Equipped with dual recoil and electric start capabilities, the unit guarantees reliable operation in challenging field conditions. Its compact steel frame ensures durable protection while maintaining high portability across construction sites.
Scope of Application
- Independent simultaneous operation of two 20 lpm hydraulic breakers
- High capacity single tool operation up to 40 lpm such as cut off saws or submersible pumps
- Heavy duty concrete cutting and core drilling operations
- Municipal utility maintenance and emergency repair tasks
- Underwater and specialized civil engineering works
Specifications
| Item Number | 2020118 |
| Engine | Vanguard 18 (18 hp) gasoline |
| Starter System | Recoil and Electric |
| Oil Flow Rate | 1 x 20-40 LPM or 2 x 20 LPM |
| Working Pressure | 120 bar |
| Maximum Pressure | 160 bar |
| Sound Power Level LWa | 101 dB |
| Dimensions (L x W x H) | 860 x 610 x 688 mm |
| Weight | 112 kg |
| Certification | CE approved |
Package Contents
- Hydraulic Power Pack HPP18V MULTIFLEX
- Integrated Vanguard 18 HP Gasoline Engine
- Dual Recoil and Electric Starter System
- Tandem Gear Pump Assembly
- User Manual and Safety Documentation
