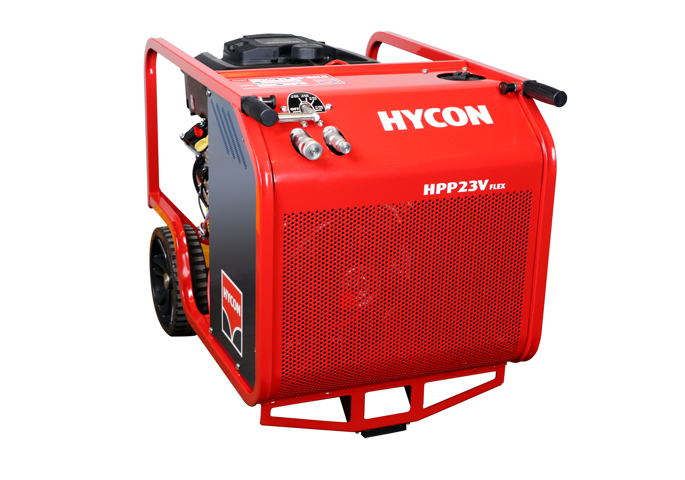

HYCON HPP23V FLEX Hydraulic Power Pack
Downloads:
PDF Instruction 1

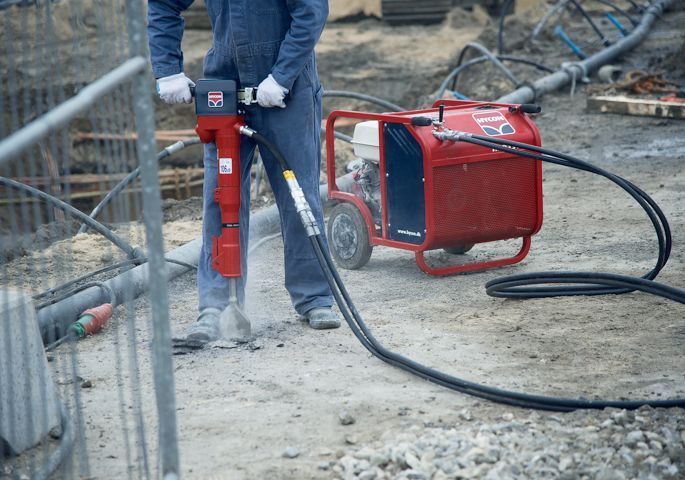

The HYCON HPP23V FLEX hydraulic power pack represents the top tier of portable power units, driven by a reliable 23 HP Briggs & Stratton Vanguard gasoline engine. Designed for heavy-duty construction tasks, this versatile hydraulic station delivers adjustable oil flow from 20 to 46 liters per minute, making it capable of powering demanding equipment like large diamond saws, wall saws, and concrete chain saws. Its robust construction ensures optimal power transmission and superior reliability in extreme jobsite conditions.
Featuring an innovative ring cooler technology developed by HYCON, the unit guarantees extraordinary oil cooling efficiency across extreme ambient temperatures ranging from arctic cold to desert heat. The rigid frame protects all vital internal components while offering simple maintenance accessibility, allowing operators to wash down the cooler directly using high-pressure washers without risking damage.
Built in accordance with EHTMA categories C, D, E, and F, the station provides pre-set performance levels of 20, 30, 40, and 46 LPM at 138 bar pressure. Equipped with dual electric and recoil starter options, the HPP23V FLEX offers unparalleled versatility and dependable operation for non-EU industrial projects demanding continuous high hydraulic output.
Applications
- Powering heavy-duty concrete chain saws and wall saws
- Driving large circular diamond saws and cut-off saws
- Operating high-capacity hydraulic submersible pumps
- Powering heavy hydraulic breakers and core drills
- Industrial outdoor construction and infrastructure maintenance
Specifications
| Parameter | Value |
| Model | HYCON HPP23V FLEX |
| Article Number | 2020523 |
| Engine | Briggs & Stratton Vanguard 23 HP Gasoline |
| Starter Type | Recoil / Electric |
| Oil Flow Rate | 20 - 46 LPM |
| Working Pressure | 120 bar |
| Maximum Pressure | 160 bar |
| EHTMA Categories | C (20 lpm), D (30 lpm), E (40 lpm), F (46 lpm) at 138 bar |
| Cooling System | Thermostatically controlled Ring Cooler |
| Dimensions (L x W x H) | 860 x 610 x 688 mm |
| Weight | 108 kg |
| Certification | Non-CE (Export outside EU) |
Kit Includes
- HYCON HPP23V FLEX Hydraulic Power Pack
- Integrated B&S Vanguard 23 HP Gasoline Engine
- Electric and Recoil Starter System
- Operation and Maintenance Manual
