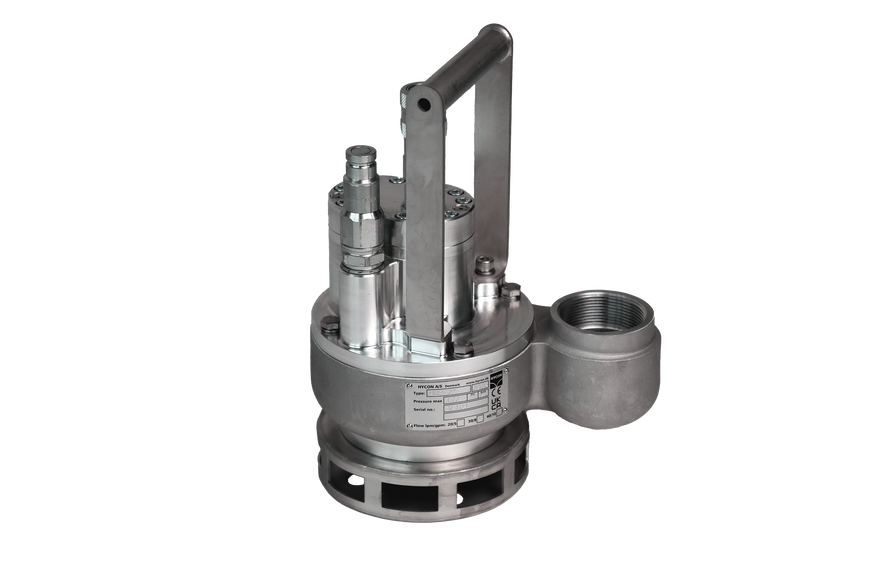

HYCON HWP2 PowerDrive Hydraulic Submersible Pump
Downloads:
PDF Instruction 1
The HYCON HWP2 PowerDrive is an exceptionally compact and powerful hydraulic submersible pump designed for high-demanding dewatering tasks in utility and construction sectors. Featuring an outside diameter of merely 24 cm, this ultra-lightweight pump easily fits into narrow manholes while delivering an astounding capacity of up to 47 m³/h. Its robust design handles heavily contaminated water and solid particles up to 30 mm in diameter without clogging or performance loss.
Equipped with HYCON proprietary PowerDrive motor technology, the unit withstands return pressures of up to 40 bar without damaging internal oil seals. The direct-drive mechanism guarantees continuous non-stop operation and allows safe dry running, eliminating the risk of motor breakdown or seal damage during demanding site duties.
Application Area
- Dewatering flooded construction pits and narrow trenches
- Municipal utility maintenance and sewer line pumping
- Pumping dirty water containing solids up to 30 mm
- Emergency flood relief and disaster response operations
- Continuous heavy-duty site water management
Specifications
| Item Number | 3030022 |
| Weight | 7.7 kg |
| Optimal Oil Flow | 30 LPM |
| Max Working Pressure | 172 bar |
| Max Return Pressure | 40 bar |
| Max Flow Capacity | 47 m³/h |
| Max Head | 30 m |
| Max Solid Size | Ø30 mm |
| Outlet Connection | BSP 2 inch female thread |
| Outer Diameter | 24 cm |
| Certification | CE |
Scope of Delivery
- HYCON HWP2 PowerDrive hydraulic submersible pump unit
- User operating and maintenance manual
- Optional accessory: Hose 10m with 2 inch BSP snap-tite coupling (Item 4032697)
