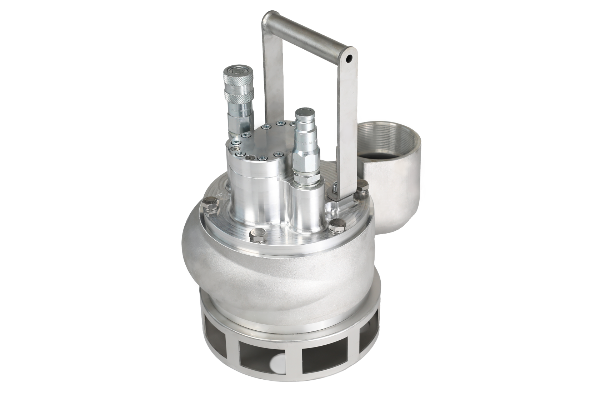

Hydraulic Submersible Pump HYCON HWP3 PowerDrive
Downloads:
PDF Instruction 1
The HYCON HWP3 PowerDrive hydraulic submersible water pump delivers an exceptional flow capacity of up to 85 m3/h while weighing only 11 kg. Engineered with a compact outer diameter of 30 cm, this 3 inch pump offers unparalleled portability and performance in confined spaces and demanding construction environments.
At the core of the unit is the proprietary HYCON PowerDrive hydraulic direct drive motor paired with an advanced vortex impeller design. This combination guarantees continuous daily operation without risk of damage to the motor or seals even if the pump runs dry continuously.
Users can choose between two strainer options: a standard strainer handling solid particles up to 63 mm or a fine strainer for solids up to 10 mm. Featuring a maximum working pressure of 172 bar and complete CE approval, it sets the standard for professional hydraulic pumping operations.
Applications
- Dewatering flooded excavation pits and construction trenches
- Pumping heavy wastewater with high content of solid particles
- Municipal utility emergency flood control and drainage
- Industrial wastewater bypass pumping
- Water extraction in narrow or difficult to reach workspaces
Specifications
| Model | HYCON HWP3 PowerDrive |
| Item No Standard Strainer | 3030013 |
| Item No Fine Strainer | 3030013-01 |
| Weight | 11 kg |
| Max Flow Capacity | 85 m3/h (370 GPM) |
| Max Head | 20 m |
| Oil Flow Range | 20-30 LPM (5-8 GPM) |
| Max Working Pressure | 172 bar (2500 psi) |
| Max Return Pressure | 40 bar (580 psi) |
| Outlet Connection | 3 inch BSP female thread |
| Max Solids Size Standard Strainer | 63 mm |
| Max Solids Size Fine Strainer | 10 mm |
| Outer Diameter | 30 cm |
| Certification | CE Approval |
Scope of Delivery
- Hydraulic Submersible Pump HYCON HWP3
- Selected Strainer (Standard Ø63mm or Fine Ø10mm)
- User Manual and Safety Instructions
