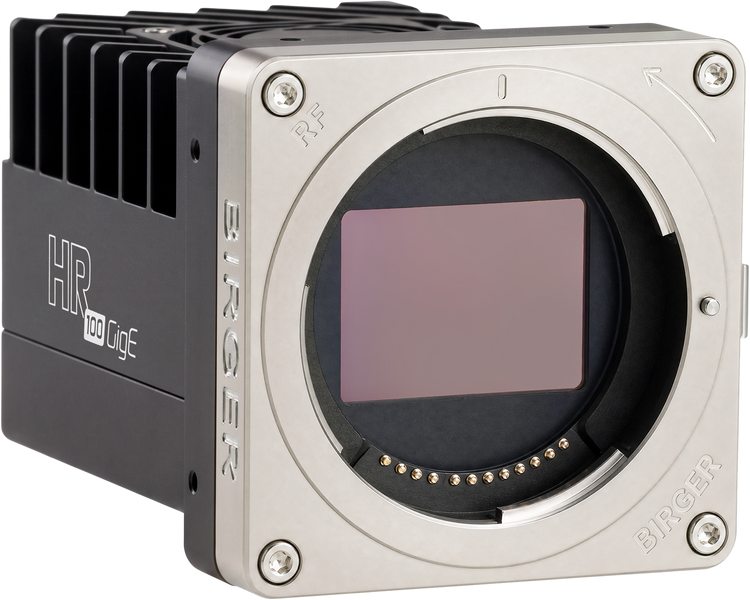

Allied Vision HR 100GigE hr927M100GE-RF Camera
Downloads:
PDF Instruction 1
The Allied Vision hr927M100GE-RF represents the pinnacle of high-bandwidth machine vision technology. Featuring the impressive 104.90 Megapixel Sony IMX927 CMOS sensor with Global Shutter, this camera delivers uncompressed, ultra-high-resolution imaging at a remarkable frame rate of up to 112 frames per second.
Equipped with a ultra-fast 100GigE interface via QSFP28 and full compliance with the GigE Vision 3.0 standard, the camera transfers massive data volumes effortlessly. Integrated features such as Flat-Field Correction (FFC), Defect Pixel Correction (DPC), dynamic Look-Up Tables (LUT), and 4032 MB on-board RAM buffer guarantee flawless performance in data-intensive optical inspection tasks.
Application Scenarios
- Ultra-high resolution flat panel display (FPD) and OLED inspection
- Semiconductor wafer and printed circuit board (PCB) automated optical inspection (AOI)
- Aerial photography, geospatial mapping, and surveillance systems
- Precision optical metrology and scientific research
- High-speed industrial quality assurance and web inspection
Specifications
| Product Code | F004332 |
| Model | hr927M100GE-RF |
| Sensor Model | Sony IMX927 CMOS Mono |
| Sensor Size | 28.06 x 28.06 mm (Type 2.5) |
| Resolution | 10,240 x 10,240 (104.90 MP) |
| Pixel Size | 2.74 µm x 2.74 µm |
| Shutter Type | Global Shutter |
| Frame Rate | 112 fps |
| Spectral Range | 400 nm to 1000 nm (Visible) |
| Interface | 100GigE (QSFP28 connector) |
| Standard | GigE Vision 3.0 |
| Bit Depth | 8-bit, 10-bit, 12-bit (mono8, mono10, mono12) |
| Exposure Time | 8 µs to 60 s |
| Gain Control | 0.0 dB to 48.0 dB |
| On-Board RAM Buffer | 4032 MB |
| Flash Memory | 32768 MB |
| I/O Ports | 12-pin Hirose HR10A-10P-12S, RS422 I/O, 2x 24V inputs, 2x Open drain outputs |
| Lens Mount | RF-Mount |
| Power Supply | 24 to 25 VDC (33 W typical) |
| Dimensions / Weight | 109 x 69 x 69 mm / 570 g |
| IP Rating | IP30 |
| Operating Temperature | -10 °C to 60 °C (housing) |
Package Contents
- Allied Vision HR 100GigE hr927M100GE-RF Camera Unit
- Protective Lens Mount Cap
- Factory Inspection and Technical Documentation
