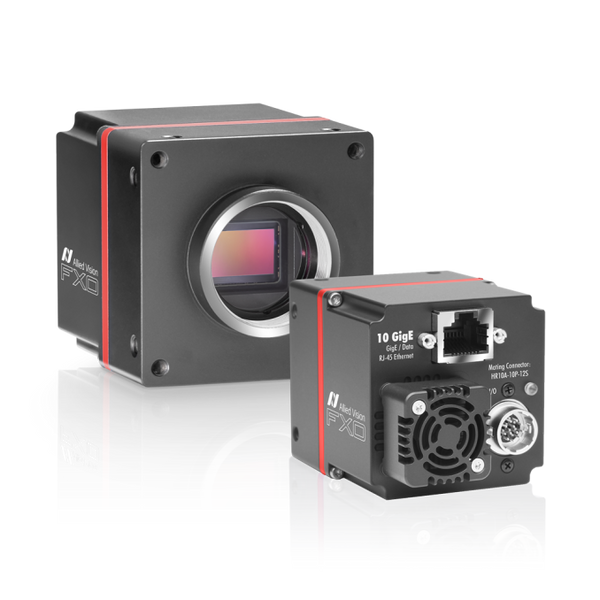

Industrial 10GigE Camera Allied Vision fxo546MXGE Sony IMX546 8.10 MP Mono
Downloads:
PDF Instruction 1
The Allied Vision fxo546MXGE is a state-of-the-art industrial area scan camera equipped with a high-resolution 8.10 Megapixel Sony IMX546 CMOS sensor featuring advanced global shutter technology. Designed for demanding machine vision applications, this camera delivers an exceptional resolution of 2840 x 2840 pixels at high frame rates up to 88 frames per second. Its high-bandwidth 10GigE interface over standard RJ-45 connectors ensures uncompressed, ultra-fast image data transmission over long cable lengths.
Built with an onboard 896 MB image buffer and 32 MB flash memory, the fxo546MXGE provides robust frame queuing and system stability. Advanced image processing functions such as flat-field correction (FFC), defect pixel correction (DPC), dynamic shading correction, lookup tables (LUT), and precise PTP (IEEE 1588) synchronization allow seamless integration into automated optical inspection lines and continuous quality control environments.
Applications
- High-speed automated optical inspection (AOI)
- Semiconductor and electronics manufacturing control
- Precision metrology and surface defect detection
- Traffic monitoring and intelligent transportation systems
- Medical imaging and biological sample analysis
Specifications
| Model | fxo546MXGE (Product Code F002152) |
| Sensor Model | Sony IMX546 CMOS Global Shutter |
| Resolution | 2840 x 2840 (8.10 Megapixels) |
| Sensor Size | 7.78 x 7.78 mm (Type 2/3) |
| Pixel Size | 2.74 µm x 2.74 µm |
| Chroma / Spectrum | Monochrome / Visible (400 nm to 1000 nm) |
| Frame Rate | 88 fps |
| Digital Interface | 10GigE (RJ-45, GigE Vision 2.0 standard) |
| Exposure Time | 6 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| Memory | 896 MB RAM image buffer, 32 MB Flash |
| Digital I/O | 12-pin Hirose, 2x 24V In, 4x Open Drain Out, 1x RS232 In/Out, 1x Opto-isolated In |
| Power Supply | 10 to 25 VDC or Power over Ethernet (PoE), 9 W typical |
| Lens Mount | C-Mount |
| Dimensions and Weight | 76 x 50 x 50 mm, 240 g |
| Operating Temperature | -10 °C to 60 °C (housing) |
| Protection Class | IP30 with K9 AR coating filter (400-850nm) |
Package Contents
- Allied Vision fxo546MXGE 10GigE Camera
- C-Mount protection cap
- Safety and installation guidelines
