Industrial 10GigE Camera SVS-Vistek FXO fxo532MXGE
Downloads:
PDF Instruction 1

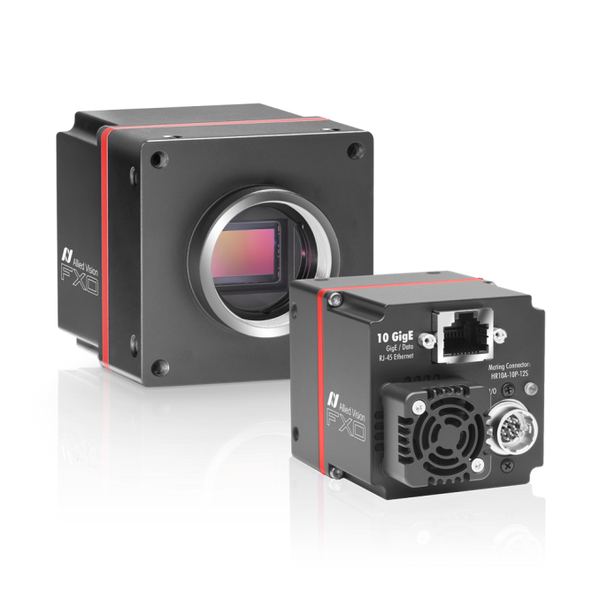

The high-performance monochrome camera SVS-Vistek FXO fxo532MXGE features a Sony IMX532 CMOS sensor that delivers 16.20 MP resolution with global shutter technology. Equipped with an ultra-fast 10GigE interface, it achieves frame rates up to 75 fps, making it ideal for demanding high-speed machine vision applications.
Supporting GigE Vision 2.0/3.0 standards, precise PTP (IEEE 1588) timing, and RDMA support, this camera ensures minimal latency and CPU load. An integrated 896 MB RAM frame buffer guarantees zero frame loss during peak data transfer rates.
Applications
- High-speed inline manufacturing inspection
- Automated Optical Inspection (AOI) for PCBs
- Semiconductor wafer and component inspection
- Scientific research and optical microscopy
- Real-time material sorting and defect detection
Technical Specifications
| Model | fxo532MXGE (Part No. F002447) |
| Sensor | Sony IMX532 CMOS Mono (Type 1.1) |
| Resolution | 5328 x 3040 (16.20 MP) |
| Pixel Size | 2.74 x 2.74 µm |
| Shutter Type | Global shutter |
| Frame Rate | 75 fps |
| Digital Interface | 10GigE (RJ-45), GigE Vision 2.0/3.0 |
| Exposure Time | 5 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| On-board Memory | 896 MB RAM, 32 MB Flash |
| I/O Connectors | 12-pin Hirose, 2x 24V in, 4x Open Drain out, RS232, opto-isolated in |
| Power Supply | 10 to 25 VDC (12 W typical) |
| Lens Mount | C-Mount |
| Dimensions & Weight | 76 x 50 x 50 mm, 240 g |
| Operating Temp. | -10°C to 60°C |
| IP Rating | IP30 |
Package Contents
- SVS-Vistek FXO fxo532MXGE camera body
- C-Mount protective cap
- Technical documentation
