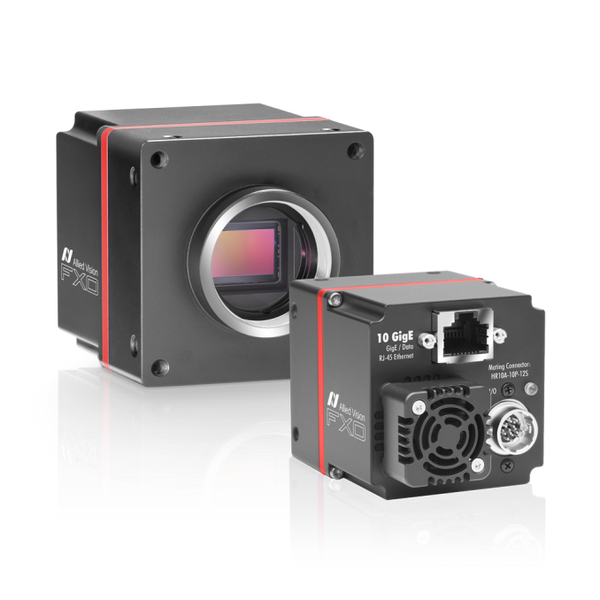

Industrial 10GigE Camera SVS-Vistek FXO fxo537MXGE Mono 5 MP 242.2 fps
Downloads:
PDF Instruction 1
The SVS-Vistek fxo537MXGE is an advanced high-speed machine vision camera equipped with a high-performance CMOS monochrome Sony IMX537 sensor. Delivering a resolution of 2448 x 2048 pixels at an impressive frame rate of 242.2 fps, this device is engineered for demanding industrial tasks requiring precision and rapid data acquisition. Featuring a global shutter, it completely eliminates motion blur during high-speed production line inspections.
Equipped with a ultra-fast 10GigE digital interface utilizing a standard RJ-45 connection, the camera supports RDMA technology to minimize CPU overhead and transfer high-bandwidth raw image data seamlessly. The camera integrates an expansive 896 MB image buffer (RAM) and 32 MB flash memory, offering built-in features like Flat-Field Correction (FFC), Defect Pixel Correction (DPC), Look-Up Tables (LUT), and precise hardware multi-channel LED control via integrated PWM generators.
Housed in a compact 76 x 50 x 50 mm aluminum casing with an IP30 protection rating and standard C-Mount lens attachment, the camera ensures stable operation in harsh thermal environments ranging from -10 degrees Celsius up to 60 degrees Celsius. Advanced timing features such as Precision Time Protocol (PTP IEEE 1588) enable precise multi-camera synchronization.
Application Fields
- High-speed inline surface inspection and defect detection
- Automated optical inspection (AOI) in semiconductor manufacturing
- Robotic pick-and-place sorting and motion tracking systems
- Print quality inspection and high-speed packaging verification
- ITS intelligent transportation and traffic analysis systems
Specifications
| Model | fxo537MXGE (Product Code F002358) |
| Sensor Type | Sony IMX537 CMOS Monochrome Area Scan |
| Shutter Type | Global Shutter |
| Resolution | 2448 x 2048 (5.00 Megapixels) |
| Pixel Size | 2.74 µm x 2.74 µm |
| Sensor Size | 6.71 x 5.61 mm (Type 1/1.8) |
| Maximum Frame Rate | 242.2 fps |
| Digital Interface | 10GigE (RJ-45) GenICam, GigE Vision 2.0 / 3.0 |
| Image Buffer RAM | 896 MByte |
| Non-volatile Flash | 32 MByte |
| Pixel Formats | Mono8, Mono12 (Sensor bit depth 8-bit, 12-bit) |
| Exposure Range | 5 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| I/O Channels | 1x Opto-In, 2x 24V In, 4x Open Drain Out, 1x RS232 In/Out |
| I/O Connector | 12-pin Hirose HR10A-10P-12S |
| Lens Mount | C-Mount |
| Power Supply / Consumption | 10 to 25V DC, 12 W typical |
| Dimensions and Weight | 76 x 50 x 50 mm, 240 g |
| Operating Temperature | -10 to 60 degrees Celsius |
Package Contents
- SVS-Vistek fxo537MXGE industrial camera
- Protective lens mount cap
- Factory calibration certificate and safety instructions
