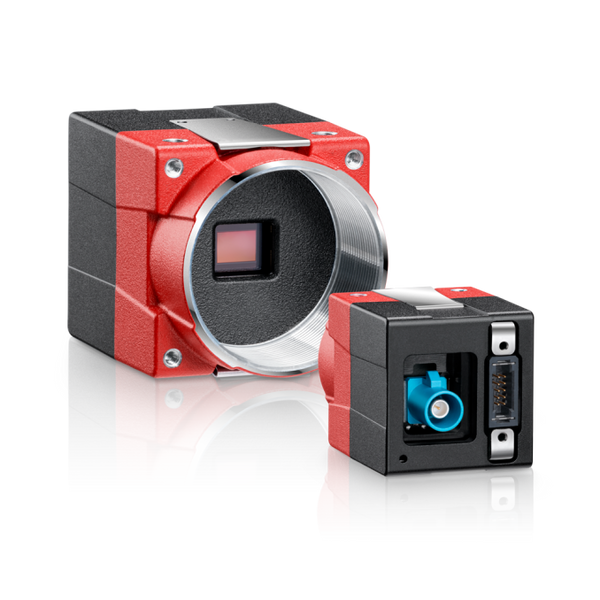

Industrial Camera Allied Vision Alvium FP3-2050 FPD-Link III
Downloads:
PDF Instruction 1
The Alvium FP3-2050 is an innovative embedded vision camera equipped with a high-resolution 19.70 MP Sony IMX183 CMOS sensor. Featuring an advanced FPD-Link III digital interface based on MIPI CSI-2, this compact camera enables long cable lengths and robust data transmission for demanding industrial inspection tasks. Its 2.40 µm pixel size combined with an 80% quantum efficiency at 529 nm ensures exceptional image quality and precision.
Designed for seamless OEM integration, the unit incorporates 256 KB of RAM image buffer and 1024 KB Flash memory. With flexible exposure timing from 13 µs to 10 s and configurable gain settings, the camera provides optimal performance across diverse lighting conditions. The rugged enclosure measuring 41 × 29 × 29 mm with C-Mount lens support makes it a highly versatile component for industrial automation systems.
Application Scope
- High-resolution PCB and semiconductor inspection
- Automated quality control in precision manufacturing
- Medical imaging and laboratory microscopy devices
- Robotics and autonomous mobile system vision
- Aerial surveillance and payload mapping via drones
Technical Specifications
| Model | Alvium FP3-2050 |
| Sensor Model | Sony IMX183 CMOS (Type 1) |
| Resolution | 5376 × 3672 (19.70 Megapixels) |
| Pixel Size | 2.40 µm × 2.40 µm |
| Shutter Type | Rolling shutter, Global Reset Shutter |
| Spectral Range | 300 nm to 1100 nm |
| Quantum Efficiency | 80% at 529 nm |
| Digital Interface | FPD-Link III (MIPI CSI-2 based, up to 4 lanes) |
| Connectors | Coax, STP |
| Exposure Range | 13 µs to 10 s |
| Gain Range | 0.0 dB to 27.0 dB |
| Sensor Bit Depth | 10-bit |
| On-board Memory | 256 KB RAM, 1024 KB Flash |
| Digital I/O | 2 programmable non-isolated GPIOs |
| Power Requirements | 5 VDC via MIPI CSI-2 |
| Operating Temperature | -20 °C to +65 °C (housing) |
| Lens Mount | C-Mount |
| Dimensions / Weight | 41 × 29 × 29 mm / 70 g |
Package Contents
- Allied Vision Alvium FP3-2050 camera unit
- Protective C-Mount lens cap
- Manufacturer quick start documentation
