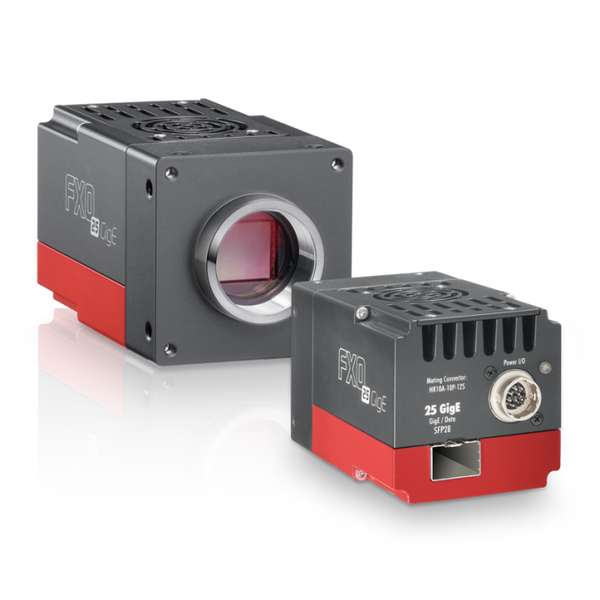

Industrial Camera Allied Vision FXO 25GigE fxo530M25GE
Downloads:
PDF Instruction 1
The Allied Vision fxo530M25GE is a state-of-the-art monochrome machine vision camera designed for high-demanding optical inspection tasks. Built around the advanced Sony IMX530 Pregius S CMOS sensor, this device delivers an outstanding resolution of 24.60 Megapixels (5328 × 4608 pixels) paired with a pixel size of 2.74 µm. Featuring a global shutter architecture, it guarantees distortion-free acquisition of high-speed moving objects with precision and clarity.
Equipped with an ultra-fast 25GigE interface via SFP28 connection, the camera achieves a frame rate of up to 96 frames per second at full resolution. It features RDMA support, GigE Vision 3.0 compatibility, and an integrated 4032 MB image buffer to eliminate packet loss during data transmission. The rugged housing with a C-Mount lens interface operates under wide temperature ranges, making it an optimal solution for industrial automation setups.
Application Areas
- High-speed automated optical inspection (AOI) in semiconductor manufacturing
- Surface defect detection on wide-web production lines
- 3D metrology and high-precision spatial measurements
- Intelligent transportation systems and rail infrastructure inspection
- Precision sorting and quality assurance in pharmaceuticals
Specifications
| Parameter | Value |
| Model Name | fxo530M25GE (Product Code F002304) |
| Sensor Type | Sony IMX530 Pregius S CMOS (Monochrome) |
| Shutter Type | Global Shutter |
| Resolution | 5328 x 4608 pixels (24.60 MP) |
| Pixel Size | 2.74 µm x 2.74 µm |
| Optical Format | 14.6 mm x 12.63 mm (Type 1.2) |
| Max Frame Rate | 96 fps |
| Dynamic Range | 72 dB |
| Signal-to-Noise Ratio (SNR) | 39 dB |
| Digital Interface | 25GigE (SFP28, GigE Vision 2.0 and 3.0) |
| On-Board Memory | 4032 MB RAM image buffer, 128 MB Flash |
| Exposure Range | 4 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| Digital I/O | 12-pin Hirose HR10A-10P-12S (2x 24V IN, 4x Open Drain OUT, RS232, Opto IN) |
| Supply Voltage | 10 to 25 VDC |
| Power Consumption | 17.5 W typical |
| Lens Mount | C-Mount |
| Dimensions and Weight | 100 x 50 x 50 mm, 320 g |
| Ingress Protection | IP30 |
Package Content
- Allied Vision FXO 25GigE fxo530M25GE camera body
- Factory calibration certificate
- Safety and installation documentation
