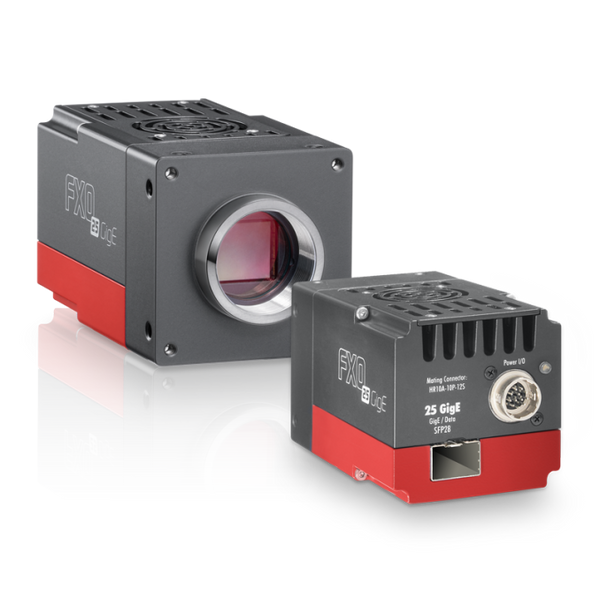

Allied Vision FXO fxo535M25GE 25GigE Camera
Downloads:
PDF Instruction 1
The Allied Vision fxo535M25GE is a high-performance industrial monochrome camera equipped with the 12.3 Megapixel Sony IMX535 CMOS sensor. Featuring a state-of-the-art 25GigE interface with SFP28 connectivity and RDMA support, it delivers uncompressed image data at an astonishing frame rate of 182.5 fps with minimal CPU overhead.
Designed for demanding high-speed machine vision applications, the camera integrates an onboard 4032 MB image buffer, precision Time Protocol (PTP IEEE 1588), dynamic range of 72 dB, and extensive hardware trigger features. Its compact industrial housing and flexible C-mount make it an ideal choice for complex automated inspection systems.
Scope of Application
- High-speed industrial quality control and automated optical inspection (AOI)
- Semiconductor and printed circuit board (PCB) wafer inspection
- ITS (Intelligent Transportation Systems) and high-speed traffic monitoring
- 3D surface profiling and scientific high-speed imaging
- Pharmaceutical packaging and inline sorting line verification
Specifications
| Parameter | Value |
| Model | fxo535M25GE (F002310) |
| Sensor | Sony IMX535 CMOS Monochrome |
| Resolution | 4096 × 3008 (12.30 MP) |
| Pixel Size | 2.74 µm × 2.74 µm |
| Sensor Size | 11.22 × 8.24 mm (Type 1/1.1) |
| Shutter Type | Global Shutter |
| Frame Rate | 182.5 fps |
| Interface | 25GigE (SFP28), GigE Vision 2.0/3.0 |
| On-board Memory | 4032 MB RAM, 128 MB Flash |
| Dynamic Range / SNR | 72 dB / 39 dB |
| Exposure Range | 4 µs to 60 s |
| Gain Range | 0.0 dB to 48.0 dB |
| Digital I/O | 1x Opto-in, 2x 24V-in, 4x Open Drain out, 1x RS232 I/O |
| I/O Connector | 12-pin Hirose HR10A-10P-12S |
| Power Supply | 10 to 25 VDC (18 W typical) |
| Dimensions & Weight | 100 × 50 × 50 mm, 320 g |
| Operating Temp. | -10 °C to +60 °C |
| Lens Mount | C-Mount |
Package Contents
- Allied Vision fxo535M25GE camera
- C-mount protective cap
- Safety notes and quick start documentation
