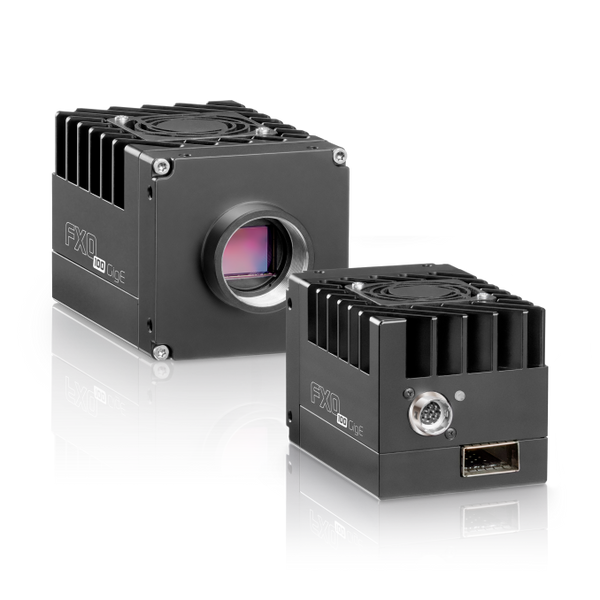

Allied Vision FXO fxo925C100GE-FF Industrial Camera
Downloads:
PDF Instruction 1
The high-speed color industrial camera Allied Vision FXO fxo925C100GE-FF features a state-of-the-art Sony IMX925 CMOS global shutter sensor. It delivers a resolution of 24.50 MP (5312 x 4608 pixels) at an impressive frame rate of up to 442.7 frames per second. Powered by an ultra-fast 100GigE QSFP28 interface and RDMA protocol support, it transfers massive throughput with minimal host CPU load.
Housed in a compact design with a Flat Front lens mount, the unit integrates 4032 MB onboard RAM buffer for flawless image capture. Compliant with the GigE Vision 3.0 standard, it supports Precision Time Protocol (PTP), advanced image control functions (LUT, ROI, color transformation), and dedicated PIV mode for high-end scientific and industrial vision solutions.
Application Fields
- High-speed PCB and semiconductor wafer inspection
- Particle Image Velocimetry (PIV) fluid dynamics research
- Ultra-fast inline continuous production quality control
- Monitoring fast physical and chemical motion phenomena
- Sports motion tracking and detailed ballistic analytics
Specifications
| Parameter | Value |
| Model | fxo925C100GE-FF |
| Product Code | F002463 |
| Sensor Model | Sony IMX925 CMOS Color |
| Resolution | 5312 x 4608 (24.50 MP) |
| Shutter Type | Global Shutter |
| Pixel Size | 2.74 um x 2.74 um |
| Max Frame Rate | 442.7 fps |
| Interface | 100GigE (QSFP28) |
| Vision Standard | GigE Vision 3.0 |
| On-board RAM | 4032 MB |
| Non-volatile Flash | 32768 MB |
| Power Consumption | 28 W (typical) |
| I/O Connector | 12-pin Hirose HR10A-10P-12S |
| Dimensions | 87 x 58 x 58 mm |
| Weight | 440 g |
| Lens Mount | Flat Front |
Package Contents
- Allied Vision FXO fxo925C100GE-FF camera
- Protective lens mount cap
- Product passport and technical documentation
