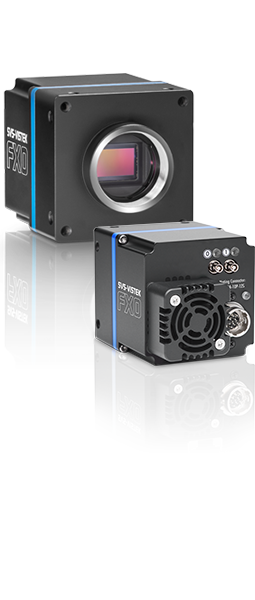

Industrial CXP-12 Color Camera Allied Vision fxo537CCX12-2C
Downloads:
PDF Instruction 1
The Allied Vision fxo537CCX12-2C is a cutting-edge high-speed machine vision camera equipped with a premium Sony IMX537 CMOS sensor delivering a resolution of 2448 x 2048 pixels (5.00 MP). Designed for demanding industrial applications, it features a dual CXP-12 CoaXPress interface capable of capturing vivid color images at an astonishing frame rate of up to 262 frames per second with minimal latency.
Featuring advanced Global Shutter technology, dynamic range of 72 dB, and full support for Power over CoaXPress (PoCxP), this compact unit simplifies cable topology while maximizing data throughput. Its robust mechanical housing, versatile I/O control options, and optimized IR-Cut filter make it an unmatched solution for automated optical inspection systems.
Application Scope
- High-speed automated optical inspection (AOI) on PCB assembly lines
- Precision semiconductor wafer inspection and defect detection
- Pharmaceutical packaging verification and continuous quality control
- Intelligent transport systems and fast moving object tracking
- Robotic guidance and high-throughput sorting logistics
Specifications
| Parameter | Value |
| Model Code | fxo537CCX12-2C (F002255) |
| Sensor Model | Sony IMX537 CMOS (Color) |
| Shutter Type | Global Shutter |
| Resolution | 2448 x 2048 (5.00 MP) |
| Pixel Size | 2.74 um x 2.74 um |
| Frame Rate | 262 fps |
| Digital Interface | Dual CoaXPress CXP-12 (Micro-BNC) |
| Dynamic Range / SNR | 72 dB / 39 dB |
| Power Requirements | 10-25 VDC or Power over CoaXPress (PoCxP) |
| Lens Mount | C-Mount |
| Dimensions / Weight | 73 x 50 x 50 mm / 240 g |
Package Contents
- Allied Vision fxo537CCX12-2C camera body
- C-Mount protection cap
- Safety and installation guidelines
