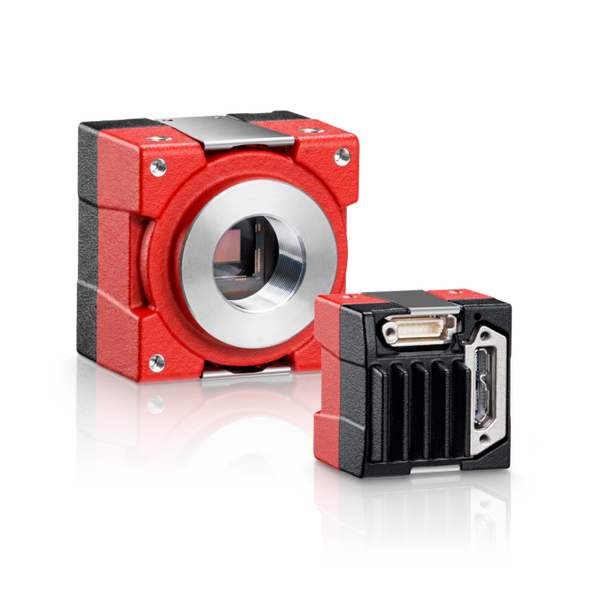

Industrial USB Camera Allied Vision Alvium 1800 U-321
Downloads:
PDF Instruction 1
The Alvium 1800 U-321 is an advanced industrial USB3 camera built around the high-performance Sony IMX900 CMOS sensor. Featuring a 3.20 Megapixel resolution (2064 × 1552) and a frame rate up to 111 fps with a global shutter, this camera delivers uncompromised image quality without distortion for fast-moving objects in automated manufacturing and inspection environments.
Powered by Allied Vision's proprietary ALVIUM System-on-Chip (SoC) technology, the camera offers comprehensive on-board image preprocessing, exceptional power efficiency, and hardware flexibility. Fully compliant with the USB3 Vision standard, it provides smooth plug-and-play integration for both traditional machine vision PCs and compact embedded vision systems.
Application Fields
- Automated optical inspection (AOI) and industrial quality control
- Robotics, pick-and-place, and motion control systems
- Medical imaging, microscopy, and laboratory automation
- Intelligent transportation systems (ITS) and traffic monitoring
- Embedded vision platforms requiring low power consumption
Specifications
| Parameter | Value |
| Model | Alvium 1800 U-321 |
| Sensor Model | Sony IMX900 CMOS Global Shutter |
| Resolution | 2064 × 1552 (3.20 MP) |
| Sensor Size | 1/3.1 inch (4.6 × 3.5 mm) |
| Pixel Size | 2.25 µm × 2.25 µm |
| Max Frame Rate | 111 fps |
| Digital Interface | USB 3.1 Gen 1 (USB3 Vision standard) |
| Chroma Options | Monochrome / Color |
| Shutter Type | Global Shutter (GS) |
| Exposure Time | 7 µs to 10 s |
| Gain Range | 0.0 dB to 48.0 dB |
| Digital I/O | 4 programmable GPIOs |
| Power Supply | Power over USB (2.0 W) / Ext. 5.0 V DC |
| Lens Mount Options | C-Mount, CS-Mount, S-Mount |
| Housing Options | Bare Board, Open Housing, Closed Housing |
| Operating Temperature | -20 °C to +65 °C (housing) |
| Dimensions & Weight | 38 × 29 × 29 mm, 65 g |
Package Contents
- Allied Vision Alvium 1800 U-321 camera module
- Selected lens mount configuration
- Quick start guide and documentation
