Information Display Panel Ecotest IT-09T with BDBG-09 Detector Unit
Downloads:
PDF Instruction 1

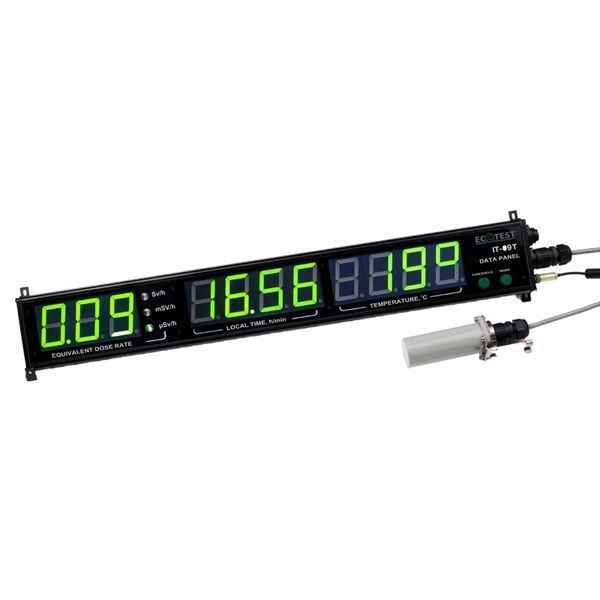

The Ecotest IT-09T information display panel is engineered for real-time visualization of gamma radiation ambient dose equivalent rate (DER), current time, and ambient temperature. Designed to work seamlessly with the remote BDBG-09 gamma radiation detector unit, this system provides a robust solution for continuous 24/7 radiation environment monitoring.
With detector placement flexibility up to 50 meters away and an IP51 industrial enclosure, the unit is ideal for both indoor and outdoor facility coverage. Integrated audible and visual alarms instantly alert personnel when threshold levels of gamma radiation background are exceeded.
Scope of Application
- Automated systems for continuous radiation monitoring
- Dosimetric control at industrial and nuclear energy facilities
- Environmental monitoring at customs border checkpoints and terminals
- Radiological laboratories and specialized medical institutions
- Civil defense and emergency response infrastructure monitoring
Specifications
| Parameter | Value |
| Gamma DER display range | 0.01 ... 107 uSv/h |
| DER display digits | 3 digits |
| Real-time display digits | 4 digits |
| Clock error per 48 hours | max +-1 min |
| Temperature display range | -40 to +50 °C |
| Temperature display digits | 2 digits |
| Temperature error (-15 to +50 °C) | max +-1 °C |
| Temperature error (-40 to -15 °C) | max +-2 °C |
| Warm-up time | max 1 min |
| Operating mode | continuous 24/7 |
| Supply voltage (adapter) | 12 ... 16 V DC (nominal 15 V) |
| Current consumption | max 1 A |
| Enclosure protection rating | IP51 |
| Display unit dimensions | 748 x 135 x 40 mm |
| BDBG-09 cable length | 10 ... 50 m |
| Display unit weight | max 2.3 kg |
Package Contents
- Information display panel IT-09T (or IT-09)
- Gamma detector unit BDBG-09 with mounting bracket (or BDBG-09S, BDBG-09V, BDBG-09SV)
- Power adapter
- Connecting cable (length per order)
- Mounting kit (KOELNER FIX-K-08 dowels 4 pcs, WPF-4240 screws 4 pcs, FIX dowels with screw 10/660 2 pcs)
- Operating manual and logbook
- Packaging
