Testo 805i Smartphone-Operated Infrared Smart Probe

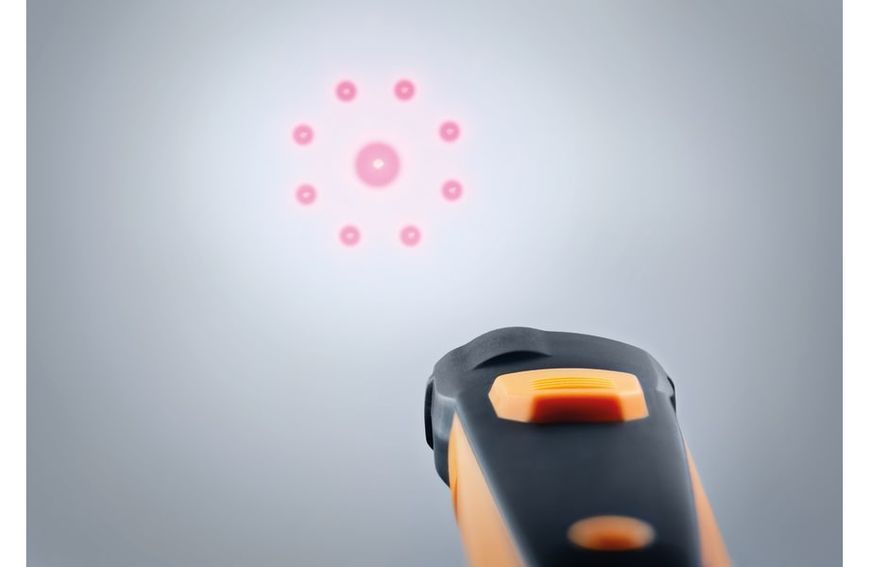

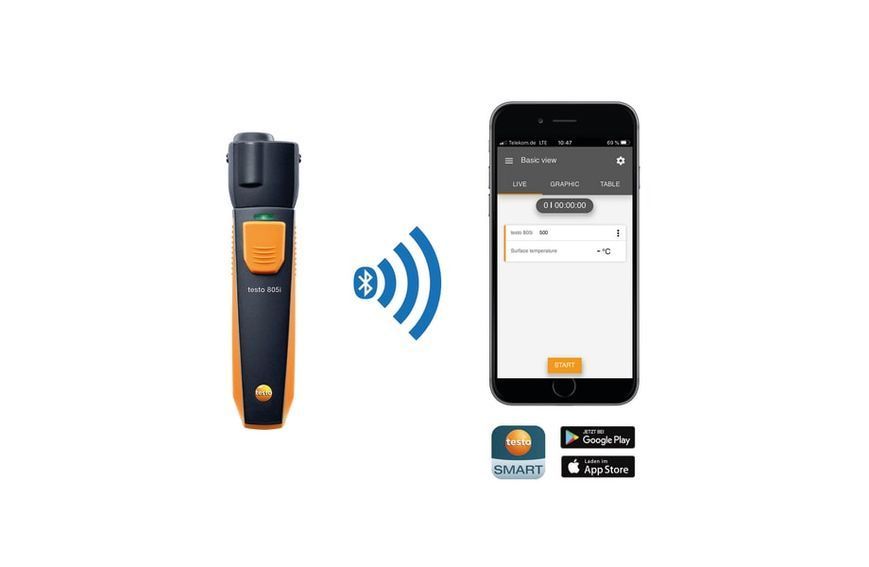

The compact Testo 805i infrared thermometer is a wireless, App-controlled measuring instrument designed for precise non-contact surface temperature measurements. Optimized for technical diagnostics in building envelopes, climate distribution lines, and electrical systems, it projects an innovative 8-point laser circle that clearly marks the exact boundaries of the measurement spot. Operating via Bluetooth 4.2 connection, this device synchronizes with the testo Smart App on your smartphone or tablet, providing digital logging, customizable emissivity profiles by material type, and structural mold risk assessment maps based on real-time data integration.
Industrial Applications
- HVAC and Climate Diagnostics: Fast scanning of wall surface distribution profiles, ventilation ducts, and refrigeration system component casing.
- Electrical Components Auditing: Non-contact thermal inspection of electrical fuses, active switch components, and control panels under operational load.
- Preventative Building Engineering: Identification of localization defects susceptible to moisture degradation and structural thermal loss zones.
Technical Characteristics
| Infrared Measuring Range | -30 to +250 °C |
| Measurement Accuracy | ±1.5 °C or ±1.5 % of measured value (0 to +250 °C); ±2 °C (-20 to -0.1 °C); ±2.5 °C (-30 to -20.1 °C) |
| Infrared Resolution | 0.1 °C scaling matrix |
| Targeting Laser System | Integrated visible 8-point laser circle targeting array |
| Data Connectivity Platform | Bluetooth® 4.2 wireless link for mobile terminal integration |
| Smart Application System | Full data management via free testo Smart App (Requires iOS 13.0+ or Android 8.0+) |
| Housing Material Profile | Robust industrial ABS and TPE protection shell; weight 97 g |
| Power Structure & Batteries | Powered by 3 AAA micro batteries providing up to 30 hours of continuous operation |
| Physical Dimensions | Compact structural shell measuring 140 x 36 x 25 mm |
| Environmental Thresholds | Operational environmental limits from -10 to +50 °C; storage from -20 to +60 °C |
Package Contents
- Testo 805i wireless infrared thermometer smart probe
- 3 AAA micro batteries for immediate outfield tool configuration
- Factory calibration validation certificate and clear operational installation instructions
