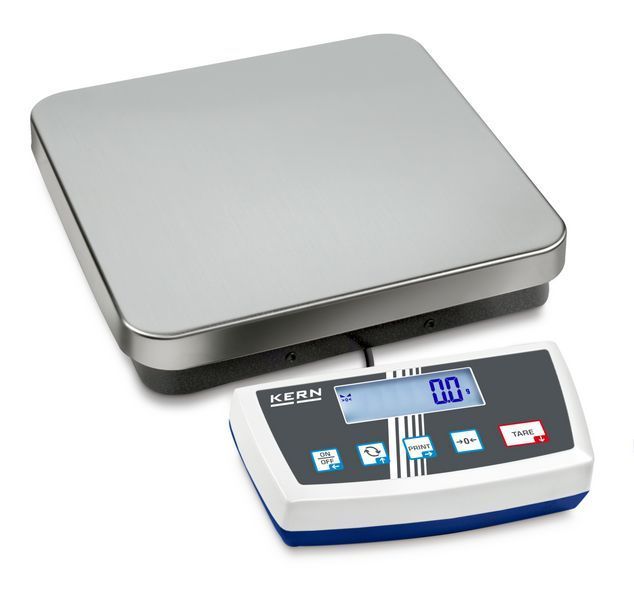

- High-capacity precision balance, ideal for high volume or heavy samples to be weighed with a high degree of accuracy
- User guidance step by step on display by Yes/No dialogue
- Numerical subtraction of tare weight for known container weight. Useful for checking fill-levels
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
- Freely programmable weighing unit, e.g. display direct in special units such as length of wire g/m, surface weight g/m², or else
- KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay
- KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
- Standardised, simplified concept of operation
- Protective working cover included with delivery
- Quality assurance
- Test equipment monitoring
- Digital processes
Weighing range (Max): 8000 g
Readability (g): 0,05 g
Reproducibility: 0,05 g
linearity: ± 0,15 g
Interfaces: analogue (4 - 20 mA)
Gross weight: 0,35 kg
Net weight: 0,25 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 190×160×105 mm
Dimensions packaging Width: 190 mm
Dimensions packaging Depth: 160 mm
Dimensions packaging Height: 105 mm
Total packaging weight: 125 g
Packaging component carton/cardboard: 86 g
Packaging component foam: 33 g
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Analogue interface; Protection against dust and water splashes IP54; Package shipment 1 day
Accessories: CE WT-01
Technical Data Sheet (PDF)
