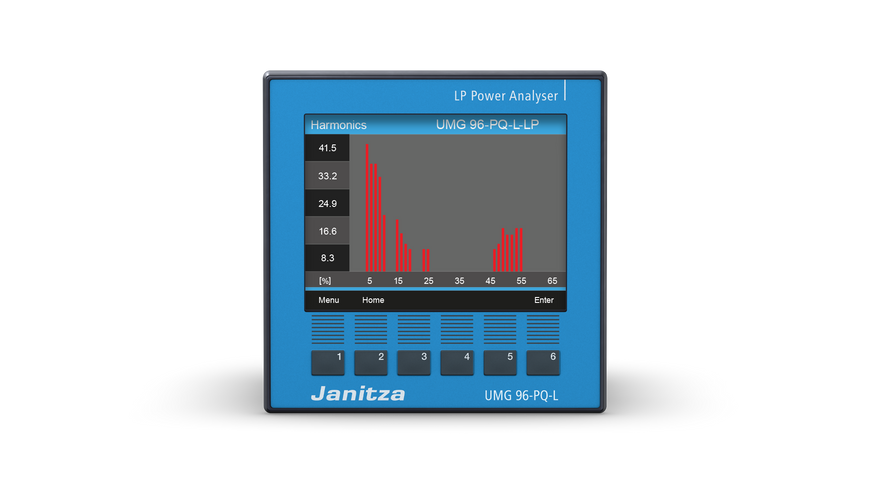

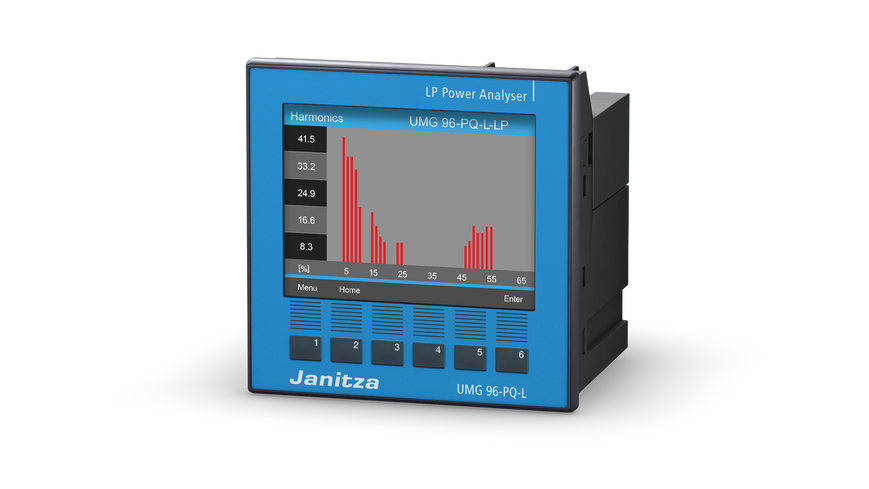

Janitza UMG 96-PQ-L-LP Modular Power Quality Analyzer
Downloads:
PDF Instruction 1
PDF Instruction 2
The Janitza UMG 96-PQ-L-LP is an advanced, modular power analyzer optimized for precise energy management and power quality analysis in compact distribution systems. Equipped with dedicated low-power current inputs supporting 333 mV transformers and passive Rogowski coils (such as 100 mV/1 kA), it removes the need for bulky converter terminals, significantly saving cabinet space and reducing installation costs.
Featuring high-resolution signal processing with 280 sampling points per wave, the device captures harmonics up to the 65th order and records full-wave events with 20 ms RMS resolution. Its intelligent 64 MB memory partitioning allows storing long-term energy trends up to 15 years alongside high-resolution short-term PQ events without data loss.
Integrated RS485 and optional Ethernet module enable seamless Modbus RTU/TCP gateway functionality. The device offers 50 configurable comparators, color graphic display with oscilloscope waveform visualization, and RCM residual current monitoring capability for complete network transparency.
Application Scope
- Energy management systems compliant with ISO 50001 standards
- Retrofit installations using flexible passive Rogowski coils
- Continuous power quality monitoring up to the 65th harmonic
- Residual current monitoring (RCM) and temperature supervision
- Sub-metering and cost-center allocation with Class 0.5S precision
- Compact switchboard panels with space-constrained DIN layout
Specifications
| Parameter | Value |
| Product Model | Janitza UMG 96-PQ-L-LP |
| Part Numbers | 5236006 (90-277V AC / 90-250V DC), 5236007 (24-90V AC / 24-90V DC) |
| Active Energy Accuracy | Class 0.5S (333 mV CTs and Rogowski coils) |
| Current Inputs | Low-power inputs (333 mV transformer / 100 mV per 1 kA Rogowski) |
| Harmonics Measurement | 1st to 65th harmonic (Voltage and Current) |
| Sampling Rate | 280 sampling points per full wave (50 / 60 Hz) |
| Internal Memory | 64 MB (Up to 15 years historical data logging) |
| Event Recording | 20 ms RMS value memory for full-wave events |
| Digital Inputs / Outputs | 3 Digital Inputs, 3 Digital/Pulse Outputs, 1 Analog Output |
| Interfaces | RS485 (Modbus RTU), optional Ethernet (Modbus TCP/IP, Gateway) |
| Supported Networks | TN-Net, TT-Net |
| Comparators | 50 configurable limit comparators with hysteresis |
| Display | Color graphic LCD with 6-button intuitive interface |
| Dimensions & Mounting | 96 x 96 mm front panel installation |
| Overvoltage Category | 600V CAT III / 300V CAT IV |
| Certifications | UL certified, EN 60870-5-4 time synchronization |
Package Contents
- Janitza UMG 96-PQ-L-LP basic analyzer unit
- Panel mounting brackets and fixing clips
- Multilingual installation and safety manual
