- 1.5cm High Accuracy
- 480,000pts/sec Speed
- IP65 Metal Design
- Quick-Swap Battery

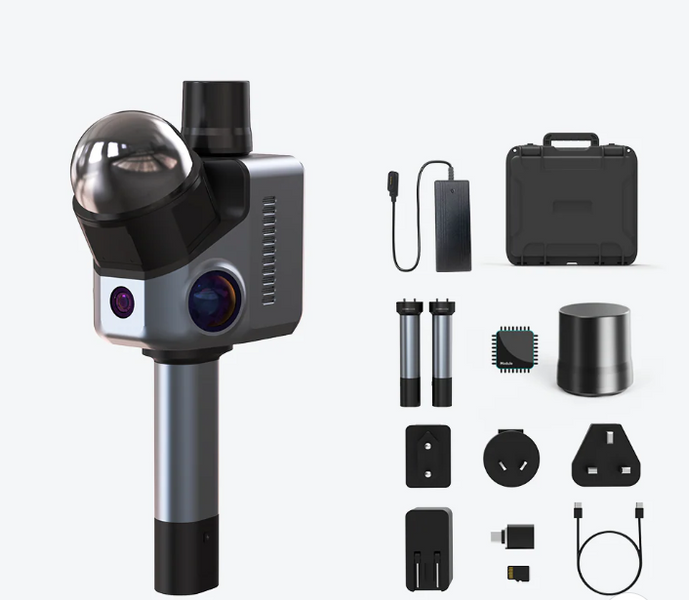

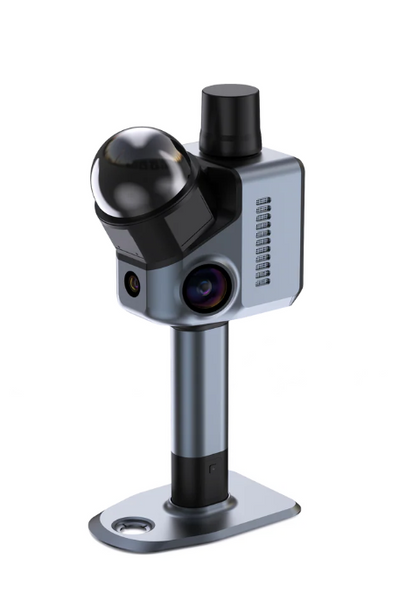

The Hawk LiDAR Scanner from 3DMakerpro is a high-performance long-range LiDAR scanning solution designed for fast, accurate, and reliable 3D data capture in large-scale indoor and outdoor environments. Engineered with advanced LiDAR technology and intelligent processing, Hawk delivers professional-grade point cloud data for surveying, mapping, inspection, and digital documentation workflows.
Long-Range, High-Efficiency LiDAR Scanning
Hawk is optimized for large-area scanning, enabling efficient digitization of buildings, infrastructure, terrain, and expansive objects. Its LiDAR-based distance measurement provides stable performance over long ranges while maintaining consistent accuracy, making it suitable for complex real-world environments.
Reliable Accuracy for Professional Applications
With precise distance measurement and high point cloud density, Hawk produces clean and well-aligned 3D data suitable for surveying, construction documentation, industrial inspection, architecture, and digital twin creation. The system is designed to maintain accuracy across varying distances and surface conditions.
Advanced LiDAR Technology
Using a high-performance LiDAR sensor, Hawk captures spatial data independent of lighting conditions, allowing it to operate reliably in low-light or outdoor environments where optical scanners may struggle. This ensures dependable results across diverse scanning scenarios.
Intelligent Tracking & Data Alignment
Hawk incorporates intelligent tracking and positioning algorithms that support stable data acquisition during movement. This enables smooth scanning workflows and consistent point cloud alignment, even when scanning large or complex spaces.
Efficient Workflow & Broad Software Compatibility
Designed for streamlined operation, Hawk delivers fast data capture and efficient point cloud generation. Scan results can be exported in industry-standard formats, ensuring compatibility with common CAD, BIM, GIS, and 3D modeling software used in professional environments.
Rugged and Practical Design
Built for field use, Hawk features a robust and ergonomic design suitable for extended scanning sessions. Its portable form factor allows professionals to conduct on-site scanning with confidence, whether indoors or outdoors.
Tech Specs
Hawk LiDAR Scanner
Accuracy:
1.5cm@10m; 3cm@20m; 5cm@40m
Scan Radius:
40–70m (measured at >10% or >80% reflectivity)
Scan Range:
80–140m
Scan Angle:
Horizontal 360°, Vertical 63.5°
Point Cloud Frequency:
480,000 points/second
Laser Light Source:
905nm
Eye Safety:
Class 1 (IEC60825-1:2014) Eye safe
HDR Mode:
Supports 3–5 EV
Color Texture:
13MP 1-inch sensor camera*2
Single camera NIR visual tracking system
Data Interface:
USB-Type C ×2
Network Support:
Wi-Fi5
Screen:
3.9"
Output Formats:
3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ)
Built-in Battery:
12,000mAh (supports 1 hour of work; external power supply supported)
Dimensions:
120 × 145 × 85 mm
Weight:
900g
Configuration:
8 Cores 2.4GHz 32GB (Supports TF card expansion)
Recommended Configuration:
Processor: Intel Core i7
Memory: 64GB RAM
Graphics Card: NVIDIA RTX 4060, 16GB VRAM
Minimum Configuration:
Processor: Intel Core i7
Memory: 32GB RAM
Graphics Card: NVIDIA RTX 3060, 12GB VRAM
Note: Gaussian Splatting is only supported on NVIDIA GPUs.
