- Provides quick and consistent testing
- High level of security at repeated measurements
- Provides maximum versatility and precise measuring results
- Slide construction for distance measurement
- Large base plate with high versatility of fastening objects
- Suitable for all SAUTER force gauges up to 500 N (not included in delivery)

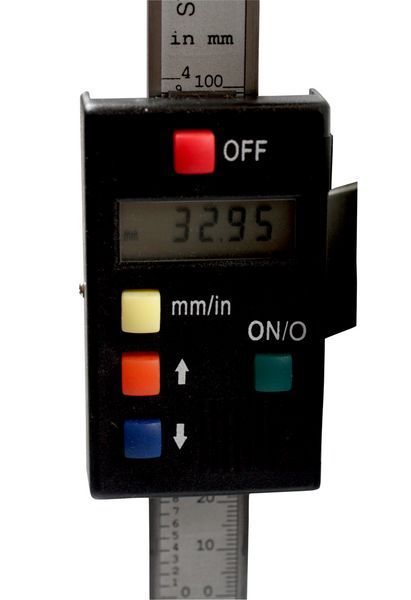

- Digital length meter
- Measuring range: 100 mm
- Readability: 0,01 mm
- Zero setting possible
- Pre-length can be set manually
- without interface
- Plastics technology
- Automotive industry
- Packaging industry
- Medical technology
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-127
Material housing: plastic
Dimension housing (W×D×H): 170×245×39 mm
Dimension housing (Width): 170 mm
Dimension housing (Depth): 245 mm
Dimension housing (Height): 39 mm
Material weighing plate: plastic
Dimension weighing surface (Ø): 150 mm
Display type: LCD
Display digit height: 15 mm
Units: g; dwt; ozt; oz
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Rechargeable battery optional: Rchrg. battery optional
Rechargeable battery charging time: 10 h
Rechargeable battery operating time - backlight off: 50 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min
Battery: 9 V block
Battery operating time: 16 h
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 0,70 kg
Net weight: 0,55 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 265×207×116 mm
Dimensions packaging Width: 265 mm
Dimensions packaging Depth: 207 mm
Dimensions packaging Height: 116 mm
Total packaging weight: 170 g
Packaging component carton/cardboard: 720 g
Packaging component plastic: 5 g
Packaging component Styrofoam: 98 g
Packaging component foam: 23 g
Pictograms Standard: External adjustment; Units switchable; Suspended weighing; Prepared for battery operation; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Universal plug-in power supply; Accredited calibration (DKD)
Accessories: KS-A01; YKA-03N; 440-902; 470-902-003
