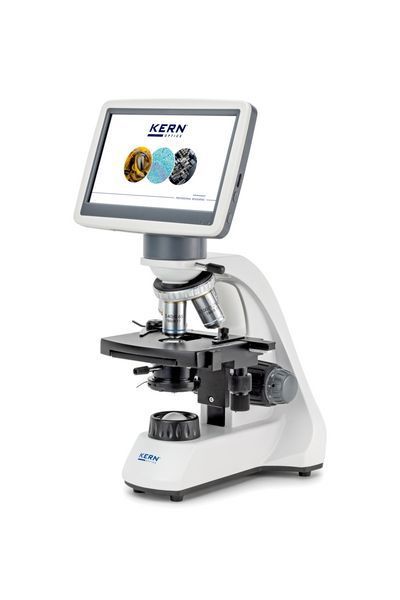

- 7"-LCD display with a high resolution for a clear and detailed view of the sample
- CMOS colour camera for brilliant digital images for documentation and analysis
- Simple installation of the camera instead of the microscope head of the OBT range
- Integrated measuring software for analysis directly on the device
- USB 2.0 interface for data transfer to a PC
- MicroSD card slot with 16 GB microSD card for easy storage
- Menu languages: DE, EN, FR, RU, ZH
- USB dual power supply included with delivery
- External S-Viewer PC software for further analyses
- Schools
- Training centres and universities
- Laboratories and research facilities
Display type: LCD
Supplied power supply: Power supply unit
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Table power supply (separable)
Interfaces: USB 2.0,HDMI,MicroSD card slot
Gross weight: 6 kg
Net weight: 4,4 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 420×390×250 mm
Dimensions packaging Width: 420 mm
Dimensions packaging Depth: 390 mm
Dimensions packaging Height: 250 mm
Total packaging weight: 1 kg
Packaging component Paper: 0 g
Packaging component carton/cardboard: 320 g
Packaging component plastic: 30 g
Packaging component Styrofoam: 650 g
Optical system: Axial
Tube type: Display
Objectives magnifications: 0,7x - 4,5x
Illuminance: Reflected light
Illumination type incident light: LED
Illumination intensity incident light: 3 W
Stand type: mechanical
Zoom [Min]: 0,7x
Zoom [Max]: 4,5x
Magnification ratio: 6,4:1
Camera resolution: 5 MP
Camera sensor type: Sony CMOS
Camera sensor size: 1/2,8"
Pictograms Standard: LED lighting; Incident illumination; Zoom function; Data Interface USB; HDMI digital camera; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Accessories: OBB-A3225; OBB-A3226; OBB-A3227; OCS 901; OCS-A1101; OXM 904; 822-903; MLB-A09; YKK-01
