Mini temperature data logger kit Testo 174 T starter kit

Datasheet PDF | Instruction Manual PDF

Description

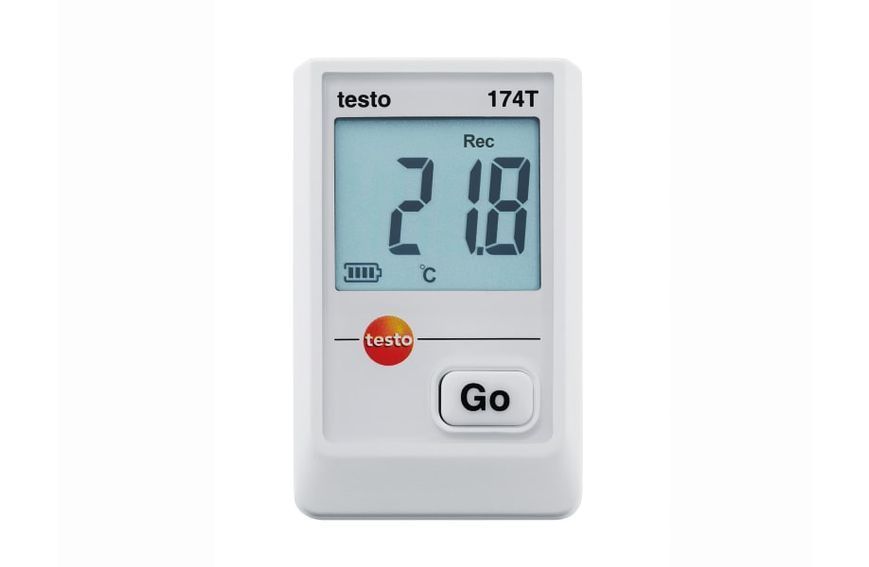

The compact Testo 174 T starter kit temperature data logger set is an all-in-one professional entry solution designed for continuous microclimate control inside retail, storage, and logistics operations. The configuration incorporates three independent Testo 174T mini temperature loggers paired with a central USB programming and readout interface station. Outfitted with precision internal NTC sensors, each module safely records up to 16,000 measurements while achieving a durable operational battery lifespan of approximately 500 days. The high-contrast compact screen shows current thermal variables alongside quick limit breaches locally. The robust housing is fully certified with an IP65 protection rating and operates in full compliance with rigorous international food safety norms.

Industry Applications

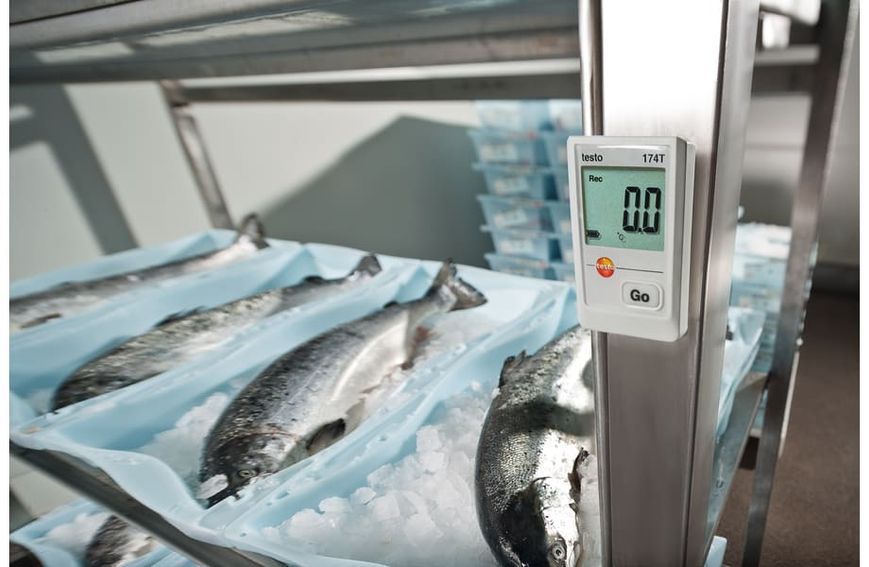

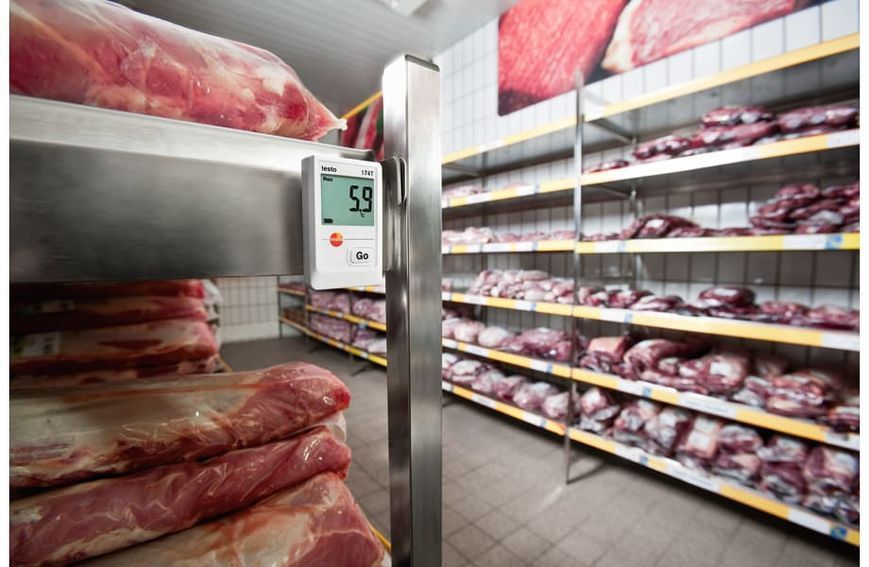

• Perishable Food Warehousing: Continuous monitoring and logging of cold storage, deep-freeze vaults, and display cases to fulfill HACCP obligations.
• Pharmaceutical Logistic Chains: Documenting the baseline environmental stability of sensitive medicine batches during warehousing under EN 12830 standards.
• Supermarkets & Commercial Real Estate: Discrete multi-point temperature auditing across walk-in refrigerators, kitchens, and sales floors.

Technical Parameters

• Sensor Technology Type: Internal NTC temperature sensor (1 channel per logger)
• Temperature Measuring Range: -30 to +70 C
• Measurement Accuracy Profile: +-0.5 C (-30 to +70 C)
• Data Resolution Profile: 0.1 C
• Memory Tracking Capacity: 16,000 readings per individual logger module
• Sampling Measurement Interval: User-programmable from 1 min up to 24 h
• Protection Rating Class: IP65 (Waterproof and dustproof execution layout)
• Battery Setup & Lifespan: 2 x 3V button cells (CR 2032); approx. 500 days operational life (at 15 min cycle at +25 C)
• Data Interfaces: Specialized USB interface docking station (included in kit)
• Dimensions & Weight: 60 x 38 x 18.5 mm; 35 g

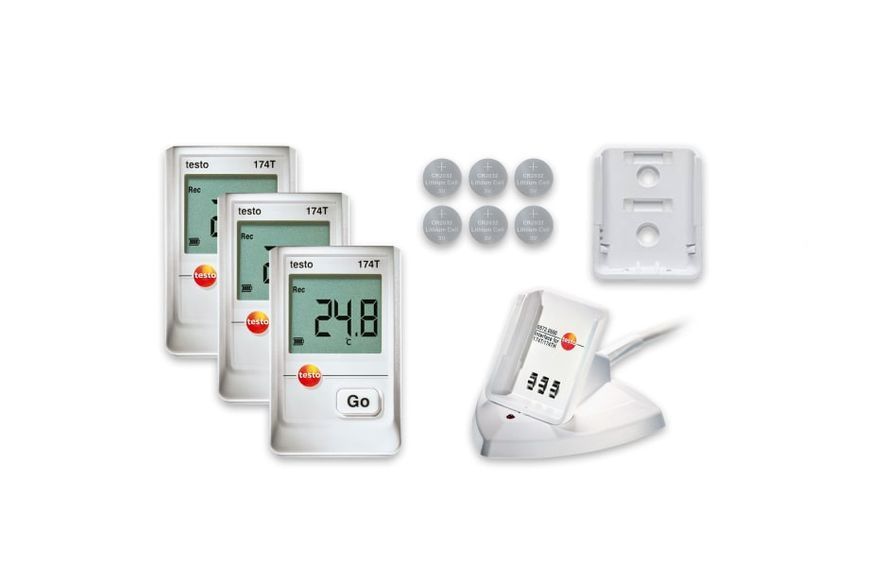

Package Content

• 3 x Testo 174T mini temperature data loggers
• 1 x USB programming and data extraction interface station
• 3 x Wall brackets
• CR 2032 batteries
• Calibration protocols
