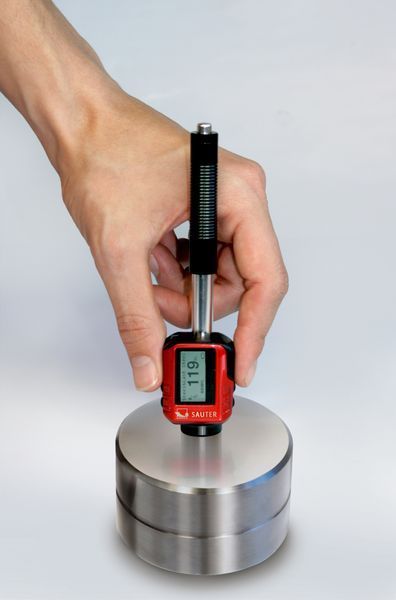

- User-friendly operation: The compact version enables the product to be used in a significantly wider range of applications compared with traditional devices
- The measuring device has been designed for one-hand operation and this allows the user to work more quickly and flexibly

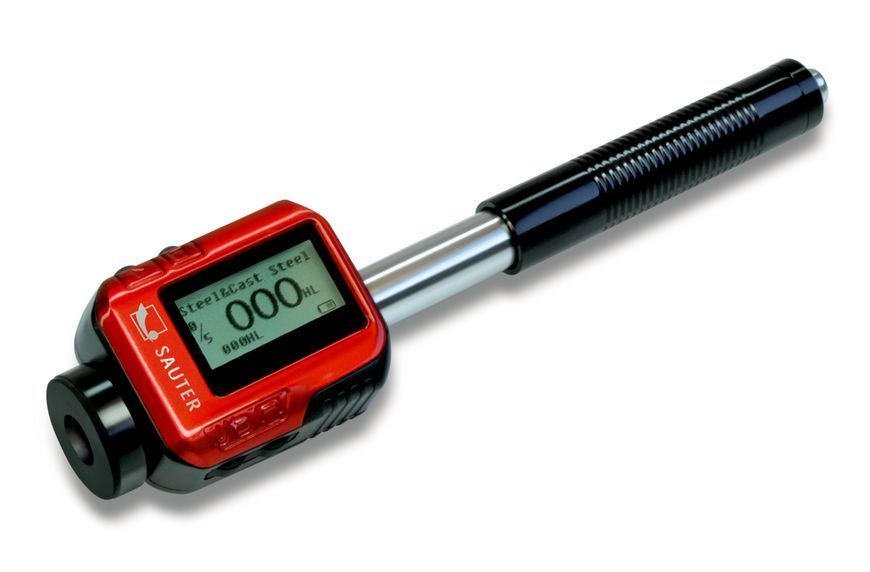

- Modern LCD display: Optimised for industrial applications: increased luminosity and backlight can be switched on, that way the display can be read from any angle
- All measurement directions possible (360°) thanks to an automatic compensation function
- Internal impact sensor included (Type D)
- Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL)
- Standard block for calibration not included in scope of delivery
- Internal data memory for up to 500 measurements with date and time
- Data interface USB, including USB interface cable

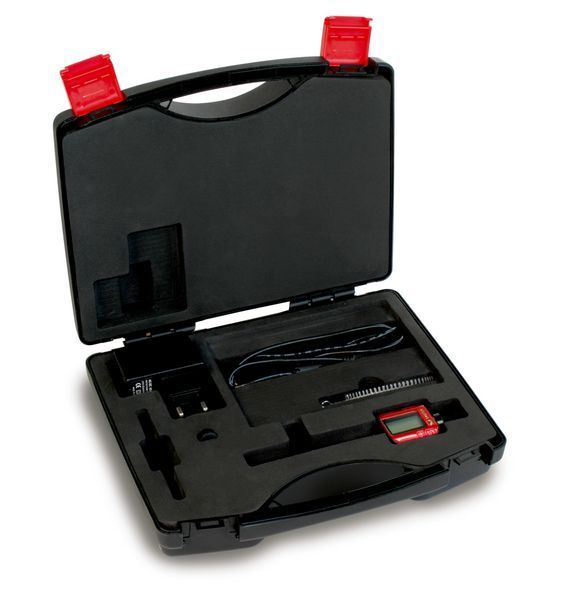

- Delivered in a robust carrying case
- Automotive industry
- Metal processing and steel construction
- Energy and power plant industry
- Oil and gas industry
- Aerospace engineering
Weighing system: Tuning fork
Stabilization time: 3 s
Article number for DAkkS calibration: 963-128
Material housing: stainless steel, cast iron
Dimension housing (W×D×H): 350×520×170 mm
Dimension housing (Width): 350 mm
Dimension housing (Depth): 520 mm
Dimension housing (Height): 170 mm
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 400×350×150 mm
Dimension weighing platform (Width): 400 mm
Dimension weighing platform (Depth): 350 mm
Dimension weighing platform (Height): 150 mm
Dimensions weighing surface (W×D): 350×400 mm
Dimension weighing surface (Width): 350 mm
Dimension weighing surface (Depth): 400 mm
Display type: LCD
Display digit height: 16,5 mm
Units: kg; g; dwt; tl (Tw); tl (HK); ozt; tl (Singap, Malays); ct; lb; oz; tol; mom
Supplied power supply: Power supply unit
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight off: 10 h
Input voltage power supply / power [Max]: 100 V - 240 V AC, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,AUS,UK,US
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: Digital I/O (optional, factory),RS-232 standard - 2x
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 24 kg
Net weight: 18 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 490×830×430 mm
Dimensions packaging Width: 490 mm
Dimensions packaging Depth: 830 mm
Dimensions packaging Height: 430 mm
Total packaging weight: 6 kg
Packaging component carton/cardboard: 5,6 kg
Packaging component plastic: 400 g
Packaging component Styrofoam: 3 kg
Pictograms Standard: External adjustment; Data interface RS-232; GLP/ISO Protocol; Value & time; Piece counting function; Net-Total function; Percentage determination function; Units switchable; Measuring with tolerance range (checkweighing function); Protection against dust and water splashes IP65; Universal plug-in power supply; Weighing principle: Tuning fork; Package shipment 1 day
Pictograms Option: Suspended weighing; Accredited calibration (DKD)
Pictograms Factory: Control output (optocoupler, digital I/O); Rechargeable battery
Accessories: YKI-02; YKG-01; YKH-01; MLB-A05; PWS-A02; FEJ-A07; FEJ-A06; FEJ-A05; FEJ-A02; FEJ-A02S05; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; FEJ-A01
