Janitza UMG 96-PA-MID+ Modular Power Analyzer
Downloads:
PDF Instruction 1

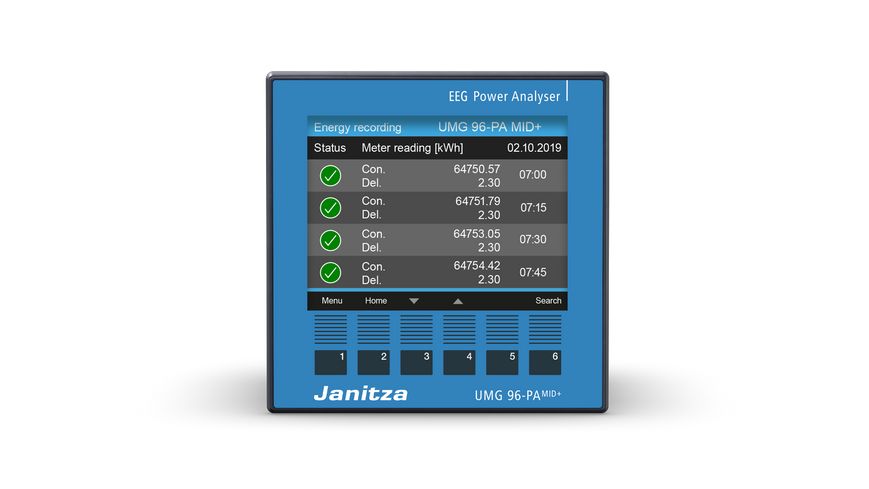

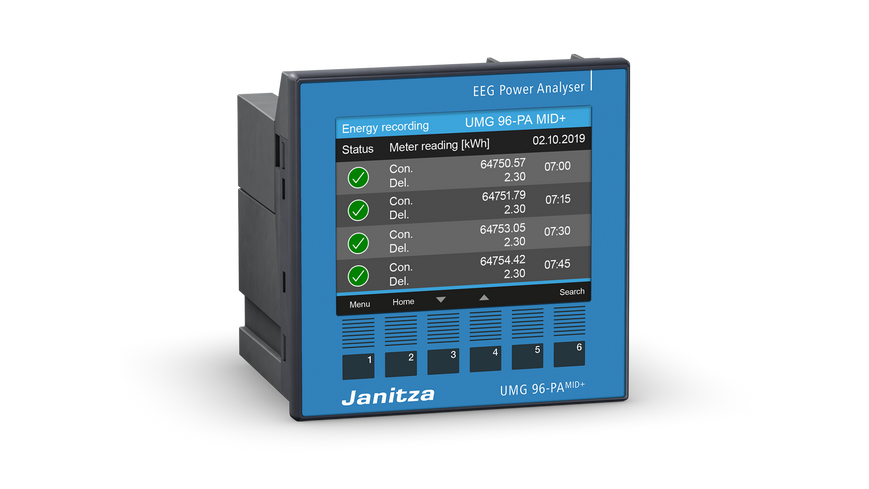

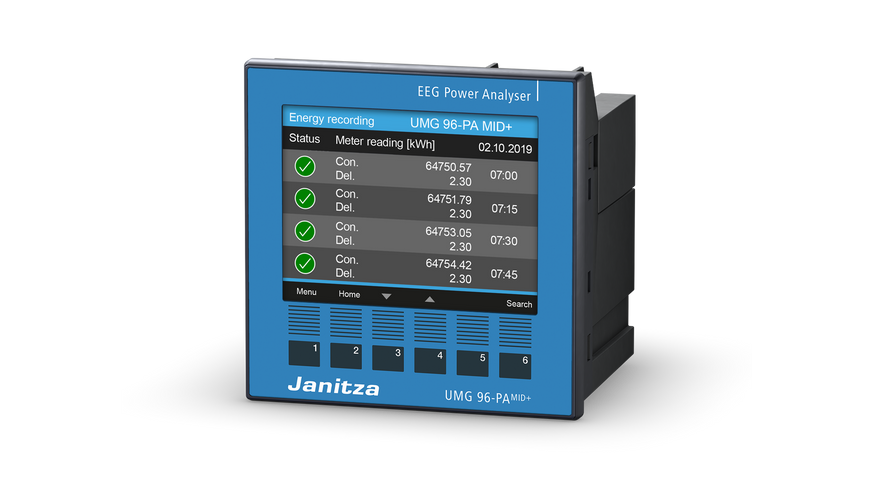

The Janitza UMG 96-PA-MID+ is a high-precision modular power analyzer designed for continuous energy monitoring and submetering in commercial and industrial electrical distribution networks. Featuring official MID certification (2014/32/EU) and PTB-A 50.7 meter reading cycle compliance, it ensures legally compliant data recording suitable for energy billing, tenant cost allocation, and audit management.
Equipped with an accuracy class of 0.2S for active energy, this compact 96x96 mm panel instrument captures up to the 40th harmonic order of voltage and current. Its internal 8 MB memory securely stores meter readings for up to two years, while integrated RS-485 and optional Ethernet Modbus TCP gateway functionalities enable seamless integration into SCADA and energy management systems.
Application Areas
- Submetering and tenant energy cost billing in commercial buildings
- ISO 50001 compliant energy management systems in industrial facilities
- Power quality monitoring and harmonic analysis up to the 40th order
- Residual current monitoring (RCM) for preventive electrical safety
- Integration of slave energy meters via Modbus gateway functionality
Technical Specifications
| Parameter | Value |
| Supply Voltage AC | 90 - 277 V AC |
| Supply Voltage DC | 90 - 250 V DC |
| Accuracy Class (Active Energy) | Class 0.2S (.../5 A) |
| Harmonics Measurement | 1st to 40th order (Voltage / Current) |
| Certifications | MID (2014/32/EU), PTB-A 50.7, UL |
| Internal Memory | 8 MB (up to 2 years data storage) |
| Digital Inputs / Outputs | 3 Inputs / 3 Outputs (Pulse/Digital) |
| Interfaces | RS-485 (Modbus RTU), Ethernet (optional module), Modbus Gateway |
| Overvoltage Category | 600 V CAT III |
| Dimensions | 96 x 96 mm front panel |
Package Contents
- Janitza UMG 96-PA-MID+ Power Analyzer unit
- Terminal covers for lead sealing
- Installation and safety manual
- Mounting hardware for front panel integration
