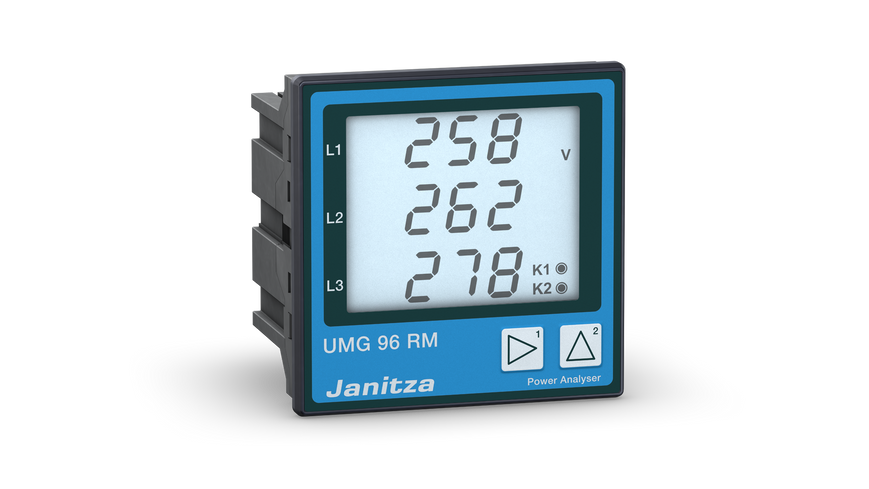

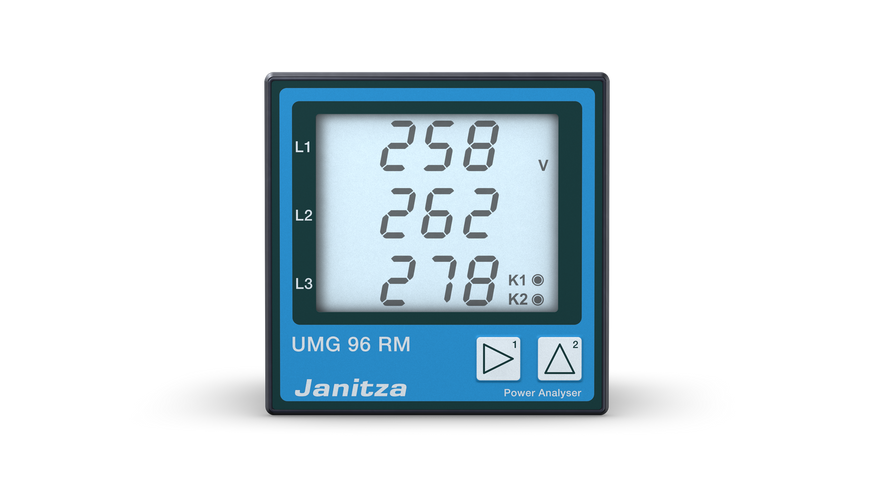

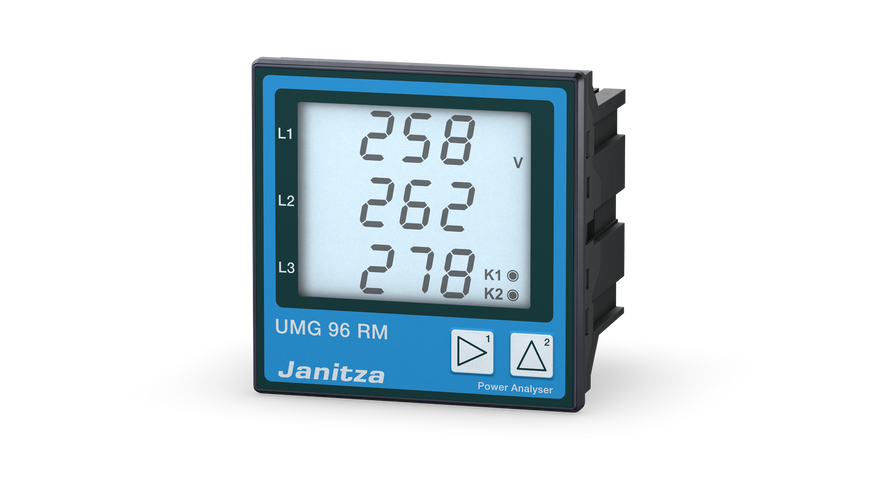

Janitza UMG 96RM-PN Energy Analyzer
Downloads:
PDF Instruction 1
The Janitza UMG 96RM-PN is a high-performance multifunctional energy analyzer equipped with an integrated 2-port PROFINET interface and integrated switch for modern industrial automation. Designed for high precision power quality monitoring and real-time network analysis, it supports class 0.5S active energy accuracy and harmonic measurement up to the 40th harmonic.
This advanced PROFINET power meter features integrated Residual Current Monitoring (RCM) for early fault detection and fire prevention. With embedded web server, HTTP REST interface, RS485 communication, and seamlessly integrated PROFIenergy profile, it delivers continuous energy efficiency in compliance with ISO 50001 standards.
Scope of Application
- Industrial automation and process control systems
- Automotive and plastics manufacturing lines
- Food and beverage production facilities
- Local energy grid sub-stations and low voltage distribution
- Energy management systems compliant with ISO 50001
Technical Specifications
| Parameter | Value |
| Product Model | Janitza UMG 96RM-PN |
| Active Energy Accuracy | Class 0.5S (.../5 A) |
| Harmonics Analysis | 1st to 40th harmonic (V and A) |
| Current Channels | 4 channels (L1, L2, L3, Neutral N) |
| Residual Current Monitoring | 2 RCM inputs (or analog 0-30 mA / temperature) |

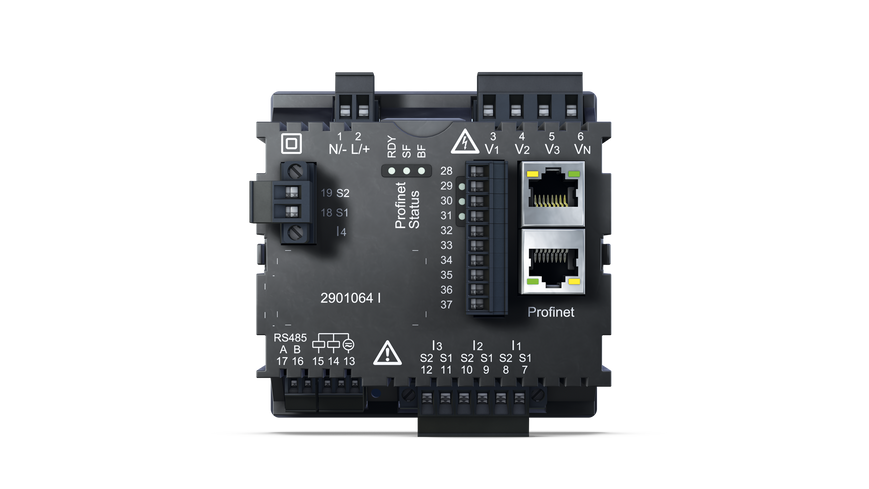

| Network Interfaces | 2x PROFINET Ethernet with integrated switch, 1x RS485 |
| Supported Protocols | PROFINET IO-IRT, PROFIenergy, Modbus RTU, HTTP REST |
| Digital Inputs Outputs | 2 digital outputs, 3 configurable digital inputs outputs |
| Configuration Software | STEP 7, TIA Portal, Janitza GridVis |
| Certifications | UL, IEC 61158 CONFORMITY |
| Supply Voltage Options | 24-90V AC DC (5222091) or 90-277V AC / 90-250V DC (5222090) |
Package Contents
- Janitza UMG 96RM-PN Energy Analyzer
- Mounting kit for panel installation
- Quick start installation guide
