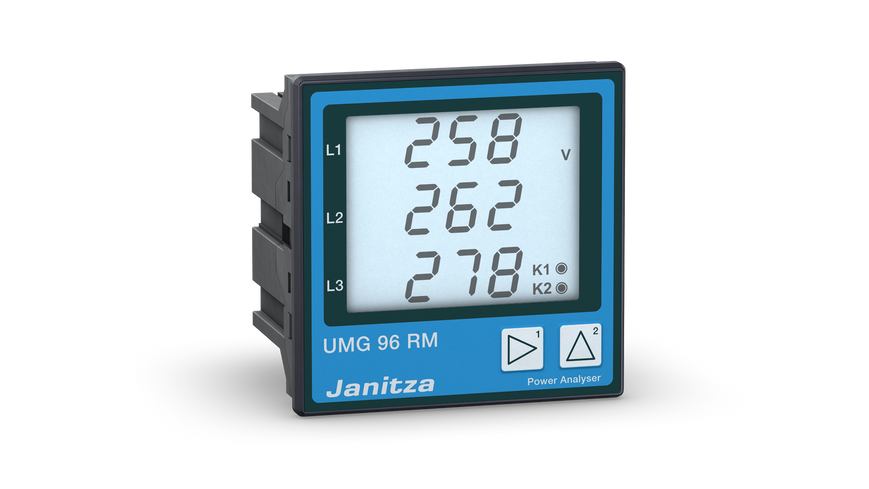

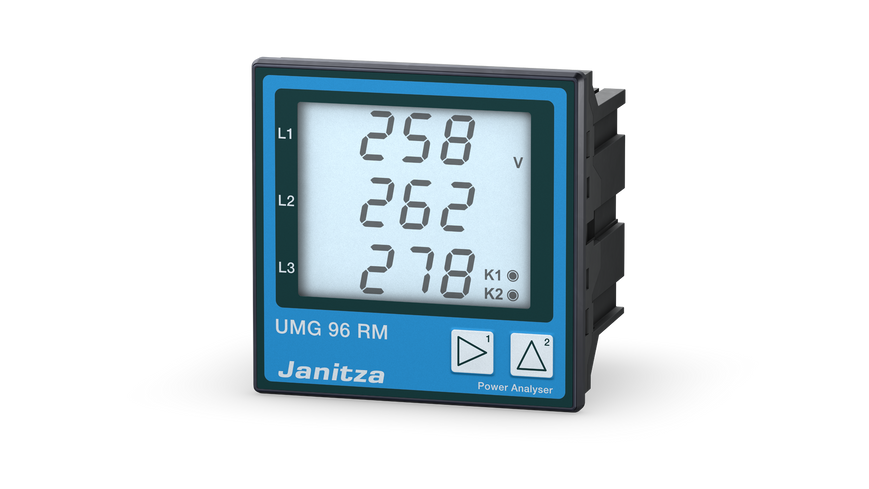

Multifunctional Power Analyzer Janitza UMG 96RM
Downloads:
PDF Instruction 1
PDF Instruction 2
The Janitza UMG 96RM is a compact multifunctional power analyzer engineered for low-voltage and medium-voltage distribution systems. Featuring a high sampling rate of 21.3 kHz and Class 0.5S active energy measurement accuracy, this device delivers detailed monitoring of electrical parameters and energy consumption.
Equipped with a clear backlit LCD display and an RS485 interface operating on the Modbus RTU protocol, it seamlessly integrates into energy management systems compliant with ISO 50001. The unit records energy across 4 quadrants with up to 7 tariffs for effective energy data acquisition.
Scope of application
- Energy management systems according to ISO 50001
- Power quality monitoring in low and medium voltage grids
- Cost center data allocation in industrial facilities
- Load profile recording for building management systems
- Harmonic analysis up to the 40th harmonic in power networks
Technical Specifications
| Parameter | Value |
| Active Energy Accuracy | Class 0.5S (.../5 A) / 0.2% V |
| Sampling Frequency | 21.3 kHz |
| Harmonics Measurement | 1st to 40th harmonic |
| Tariffs | 7 tariffs (4-quadrant measurement) |
| Digital Outputs | 2 pulse/digital outputs |
| Digital Inputs | None |
| Communication Interface | RS485 |
| Supported Protocols | Modbus RTU |
| Supply Voltage Range | 90-277V AC / 90-250V DC (optional 24-90V AC/DC) |
| Display | Monochrome LCD with backlighting |
| Certifications | UL listed |
Package Contents
- Janitza UMG 96RM Power Analyzer

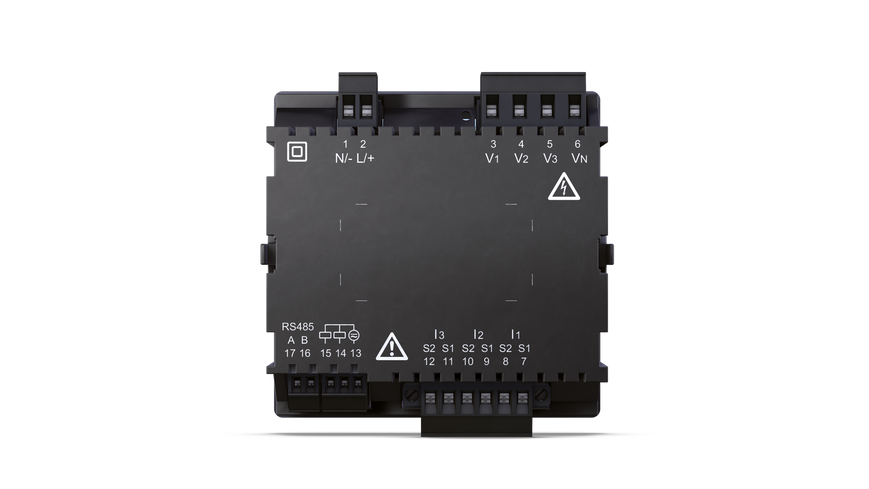

- Pluggable screw terminals
- Fastening clips for panel mounting
- Installation guide
