Quantity
|
Cost
|
||
|
|
|||
|
|
|||

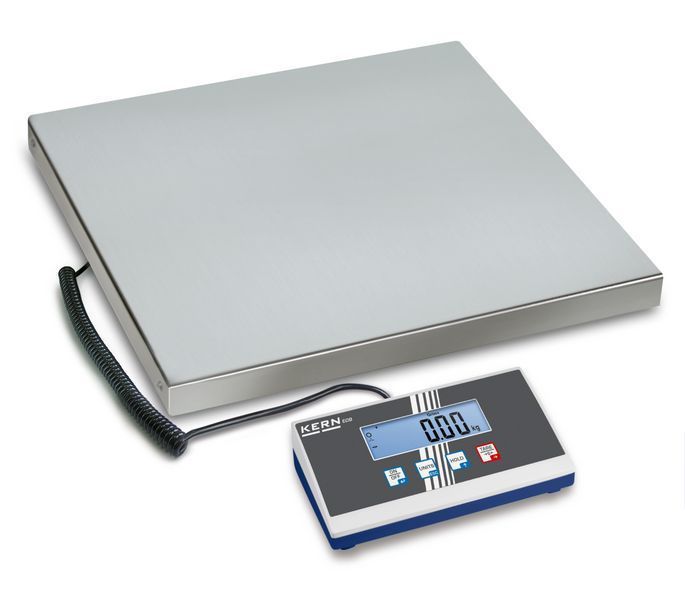

- Weighing plate stainless steel, painted steel base
- Simple and convenient 4-key operation
- Wall mount for display device, standard
- Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
- Protective working cover included with delivery
- Universal external mains adapter included with delivery
As Parcel Scale
- Warehouse logistics
- Production
- Industrial applications
As Veterinary Scale
- Animal weighing
Weighing range (Max): 150 kg
Readability (g): 0,05 kg
Reproducibility: 0,05 kg
linearity: ± 0,1 kg
Article number for factory calibration (compressive force): 961-266V
Ambient temperature [Min] (°C): -30 °C
Ambient temperature [Max] (°C): 70 °C
Gross weight: 4,6 kg
Net weight: 4,4 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 320×230×160 mm
Dimensions packaging Width: 320 mm
Dimensions packaging Depth: 230 mm
Dimensions packaging Height: 160 mm
Total packaging weight: 190 g
Packaging component carton/cardboard: 511 g
Load cell OIML class: C3
Load cell - Resolution (verifiable): 3000 e
Load cell - Y-value: 10000
Directions of force: compression
Cable length: 5 m
Load cell connection: 6-wire
Pictograms Standard: Protection against dust and water splashes IP68; Protection against dust and water splashes IP69K; Package shipment 1 day
Pictograms Option: Factory calibration (ISO)
Accessories: CJ P2; CE RQ35918; CE RQ35919; CJ P4PG; CJ P4; CE WT1-Y1; CE WT3-Y1; CE WT1-Y2; CE WT1-Y4; CJ X468; CJ X467
Technical Data Sheet (PDF)
